LSJ-F1200 Thermal Imaging Camera for Firefighters

Clear and Superior Image Quality

The LSJ-F1200 is equipped with a high-sensitivity infrared detector, it supports both 384×288 and 640×512 infrared resolutions, delivering clear and detailed images. It accurately visualizes personnel, fire sources, and heat distribution even in dense smoke and high-temperature environments, helping firefighters quickly assess the scene.

Wide Temperature Range

The LSJ-F1200 Firefighting Thermal Imaging Camera features a wide temperature measurement range from -20℃ to 1200℃, with automatic range switching for seamless adaptation to various environments. Its broad temperature span and intelligent switching enhance both efficiency and safety, making it an ideal tool for fire ground operations and post-disaster search and rescue.

Top Performance

It features outstanding high-temperature resistance, capable of operating continuously for 5 minutes in 260℃ environments, ensuring reliable fire source and hot spot detection even under extreme fire ground conditions. With an IP68-rated waterproof and dustproof design, it performs effectively in rain, wetlands, and other challenging environments. Additionally, its explosion-proof construction enhances operational safety, ensuring consistent performance in the harshest rescue scenarios.

High Thermal SensitivityHigh Thermal Sensitivity

The LSJ-F1200 thermal imaging camera(TIC) for firefighters detects subtle temperature changes quickly. It helps locate victims and hot spots even in low-contrast fire scenes, improving rescue speed.

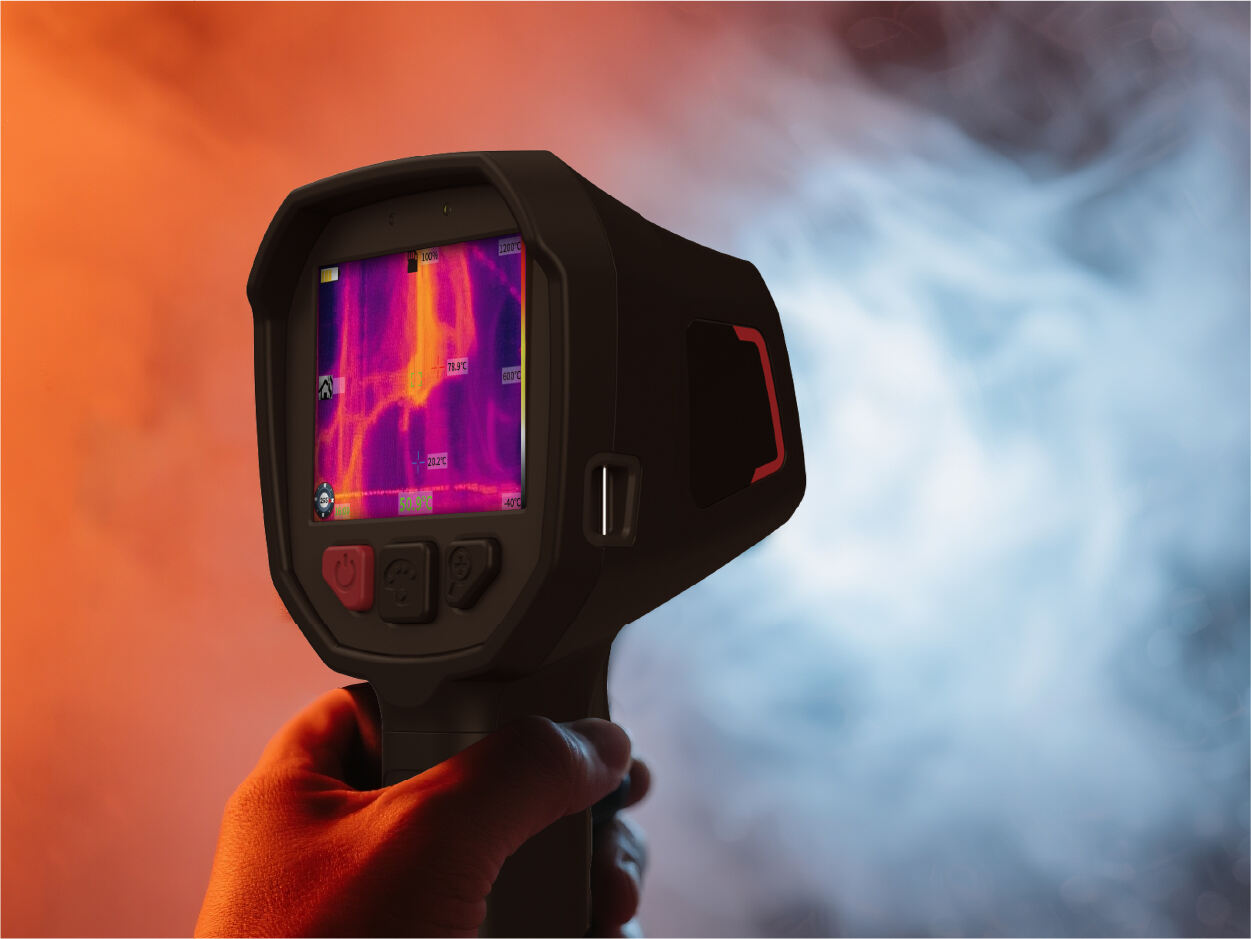

Clear Imaging in Smoke and Darkness

LSJ-F1200 firefighter thermal imaging camera delivers clear images through dense smoke and darkness. Firefighters depend on it during critical rescue missions.

Wide Temperature Range: -20°C to 1200°C

The LSJ-F1200 works from freezing cold to extreme heat. It detects heat rise before flames appear, helping prevent fire spread and building collapse. This thermal imaging camera for firefighting provides accurate imaging for all fire rescue needs.

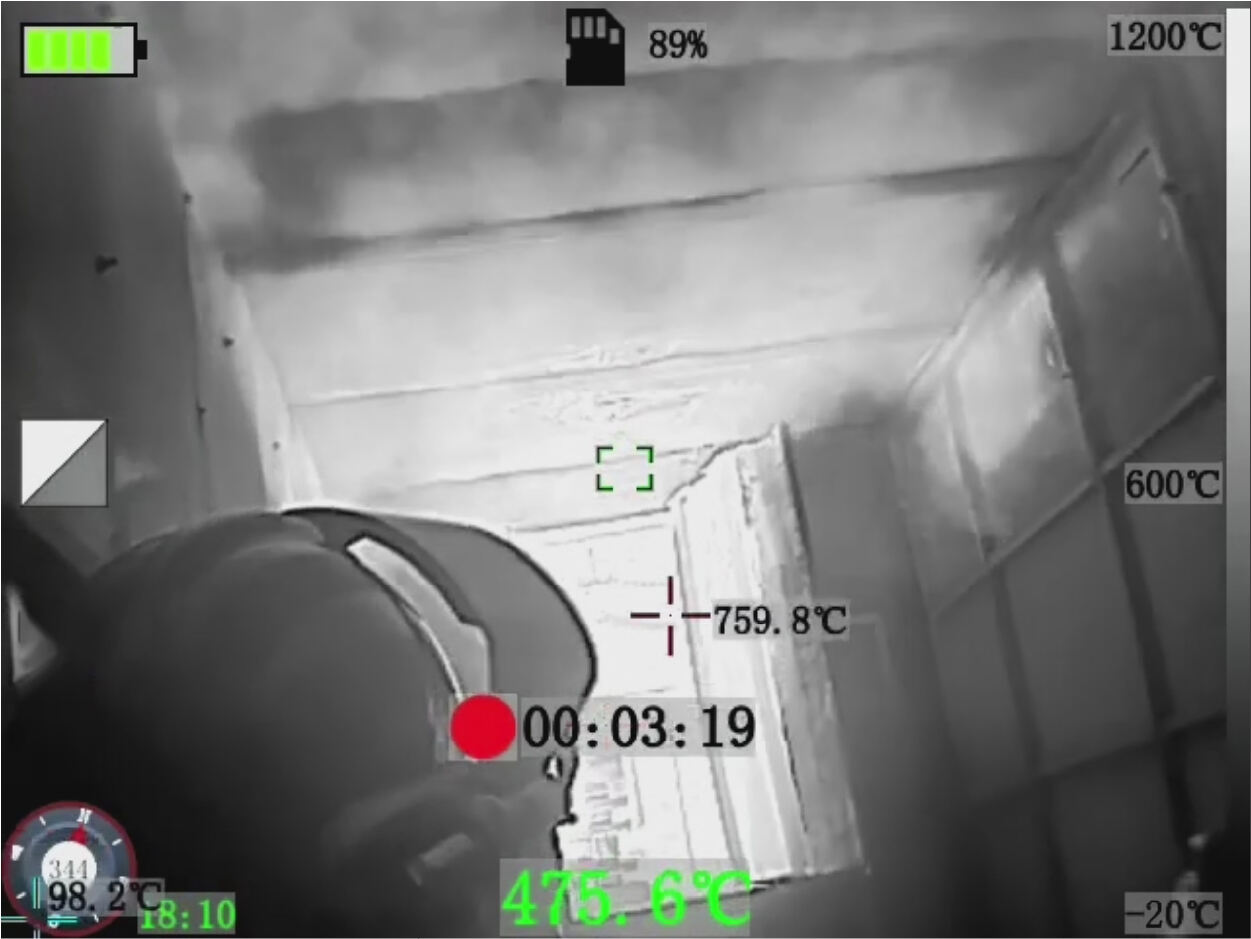

Image Capture and Video Recording

Capture thermal images and videos easily with this thermal imaging camera for the fire service. Use the files for training and post-incident analysis.

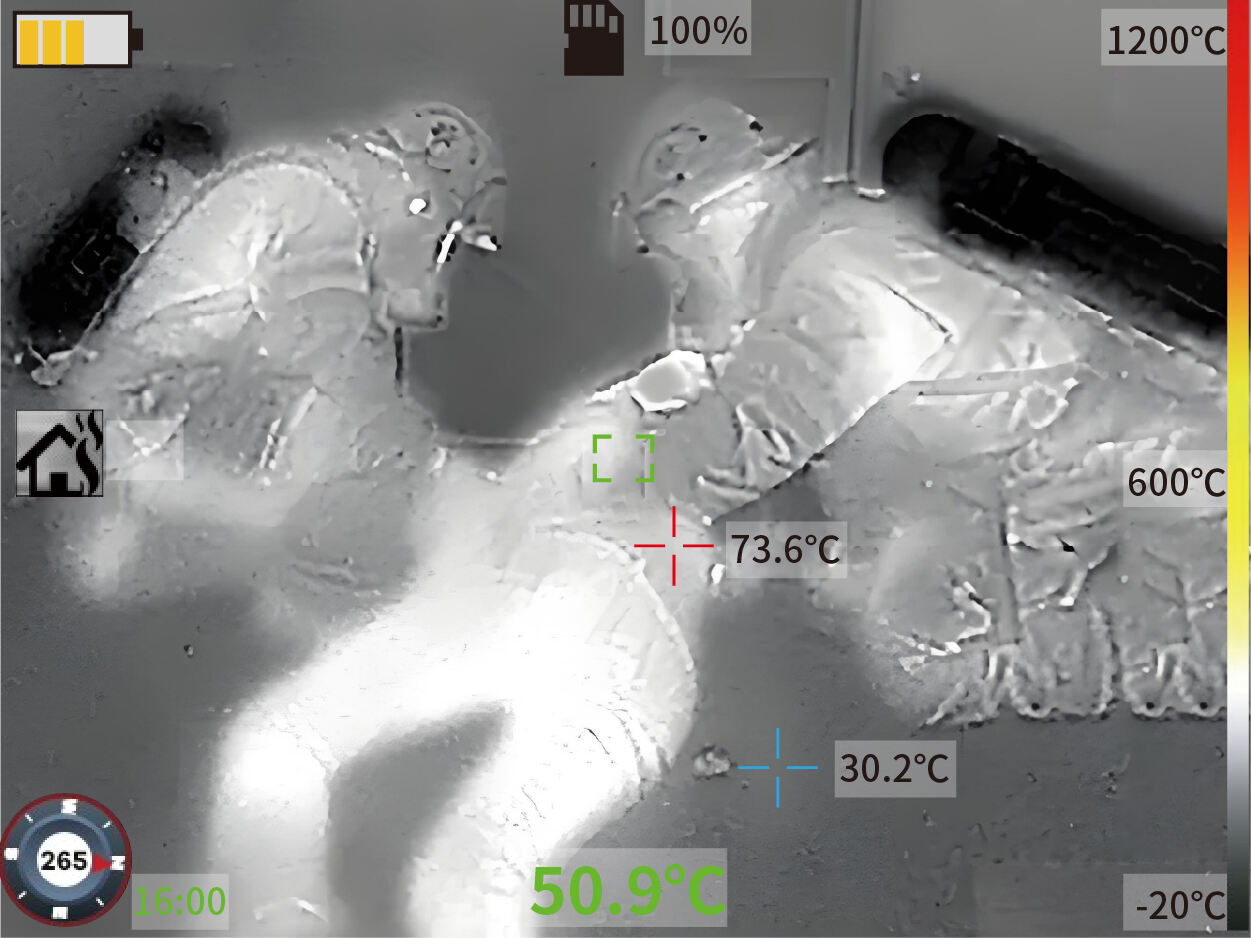

Detection of Human Body Through Smoke

The firefighter TIC identifies human heat signatures through thick smoke, allowing faster victim location during rescue.

High Refresh Rate for Smooth Imaging

With a 60Hz refresh rate, the LSJ-F1200 offers real-time thermal visuals without lag, aiding quick scans.

Durable IP68 Protection

LSJ-F1200 is fully protected against dust and water immersion. Whether facing heavy smoke, water spray, or wet rescue zones, it ensures uninterrupted performance when it matters most.

2m Drop Test

Built to endure tough environments, the LSJ-F1200 passes a 2-meter drop test onto concrete, ensuring reliable performance even after accidental falls during intense rescue operations.

Operates at 260°C for 5 Minutes

The LSJ-F1200 is built to withstand extreme conditions, operating continuously at 260°C for up to 5 minutes. This thermal imaging camera for firefighters ensures reliable performance near active fire zones during fire rescues.

Fire Search and Rescue

In fire rescue operations, high temperatures and smoke hinder visibility and create hazardous conditions. Firefighting thermal imaging cameras provide real-time temperature data, helping firefighters identify areas with abnormal heat and potential reignition points. This enables early preventive actions, improving safety. Throughout the operation, the cameras monitor fire behavior, supporting dynamic adjustments to suppression strategies for safer, more efficient firefighting efforts. Thermal imaging technology is essential in modern fire response.

Earthquake Search and Rescue

Following an earthquake, prompt rescue of trapped individuals is crucial. Firefighting thermal imaging cameras are effective for preliminary surface-level searches, helping rescue teams quickly scan rubble for heat signatures that may indicate trapped victims. This initial scan allows teams to assess the situation, allocate resources efficiently, and then deploy specialized life detection equipment for deeper searches, improving overall rescue efficiency.

Low Light Search and Rescue

In low-light or dark environments, search and rescue operations continue despite increased risks. Firefighting thermal imaging cameras, unaffected by the absence of visible light, are crucial for night-time rescues. They detect infrared radiation from the human body and convert it into clear thermal images, allowing rescuers to efficiently scan large areas, accurately identify targets, and enhance the success rate of night-time missions.

Tunnel Collapse Search and Rescue

In the event of a tunnel collapse, the complex environment filled with dust and smoke makes rescue operations challenging. Firefighting thermal imaging cameras can penetrate smoke and dust, helping rescue teams navigate and locate trapped individuals by detecting heat signatures. The device also monitors temperature changes and potential fire hazards, ensuring the rescue operation proceeds smoothly and safely, allowing for quick recovery of trapped victims.

In addition to the firefighting thermal imaging cameras, we also provide a range of advanced equipment for rescue teams, including AC voltage detectors, weather meters, and Laser Structural Movement Telemeter. These devices not only help rescue teams improve operational efficiency in complex and high-risk environments but also ensure the safety of the team members.

The HX-TAC AC voltage detector can detect electrical leakage or voltage fluctuations in electrical equipment or power lines in real-time, providing essential electrical safety information to prevent electrical accidents during rescue operations.

The HW-W01 weather meter accurately measures meteorological data such as wind speed, temperature, and humidity, offering real-time environmental information to help rescue teams adjust their strategies according to changing weather conditions.

The YZ-120 Laser Structural Movement Telemeter

can precisely monitor shifts and deformations in buildings or structures, assisting rescue

personnel in evaluating structural integrity and taking timely actions to avoid secondary disasters.

By integrating these devices into rescue operations, teams can work more efficiently while ensuring the safety of their members in extreme environments, ultimately increasing the success rate of rescue efforts.
