LSJ E310 Plus Handheld Thermal Imaging Camera — See Heat, Find Faults Before Failure

The LSJ E310 Plus is a compact, pistol-grip handheld thermal imaging camera built for industrial maintenance and emergency rescue. It pairs a 256×192 infrared detector (50 mK NETD, 25 Hz) with a 2 MP visible-light camera, measures temperatures from -20 °C to 650 °C with ±2 °C / ±2% accuracy, and comes in an IP67, 2 m drop-tested housing weighing no more than 460 g. Maintenance technicians, HVAC contractors, electrical inspectors and firefighters use the E310 Plus to locate overheating components, hidden leaks, fire seats and survivors in smoke — in real time.

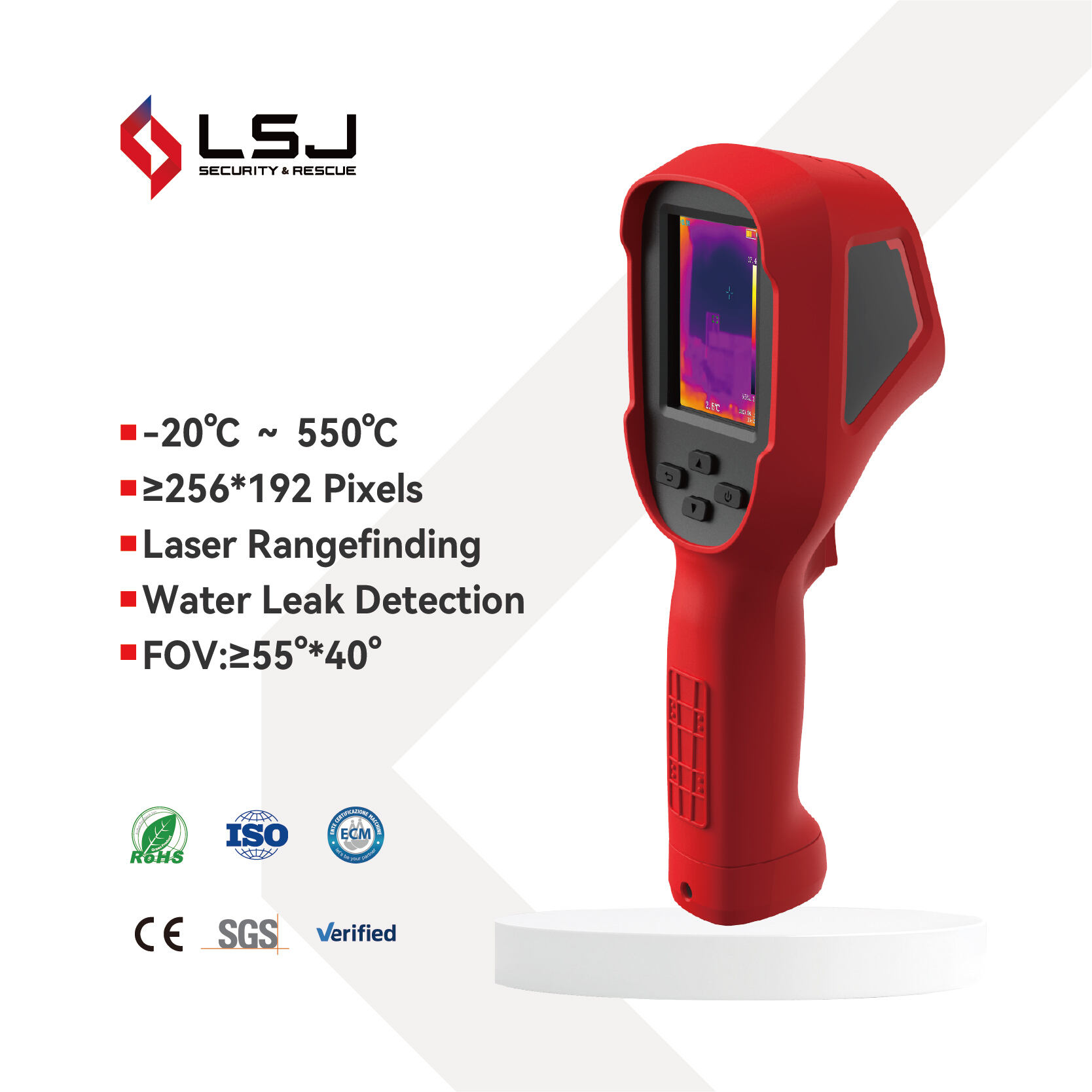

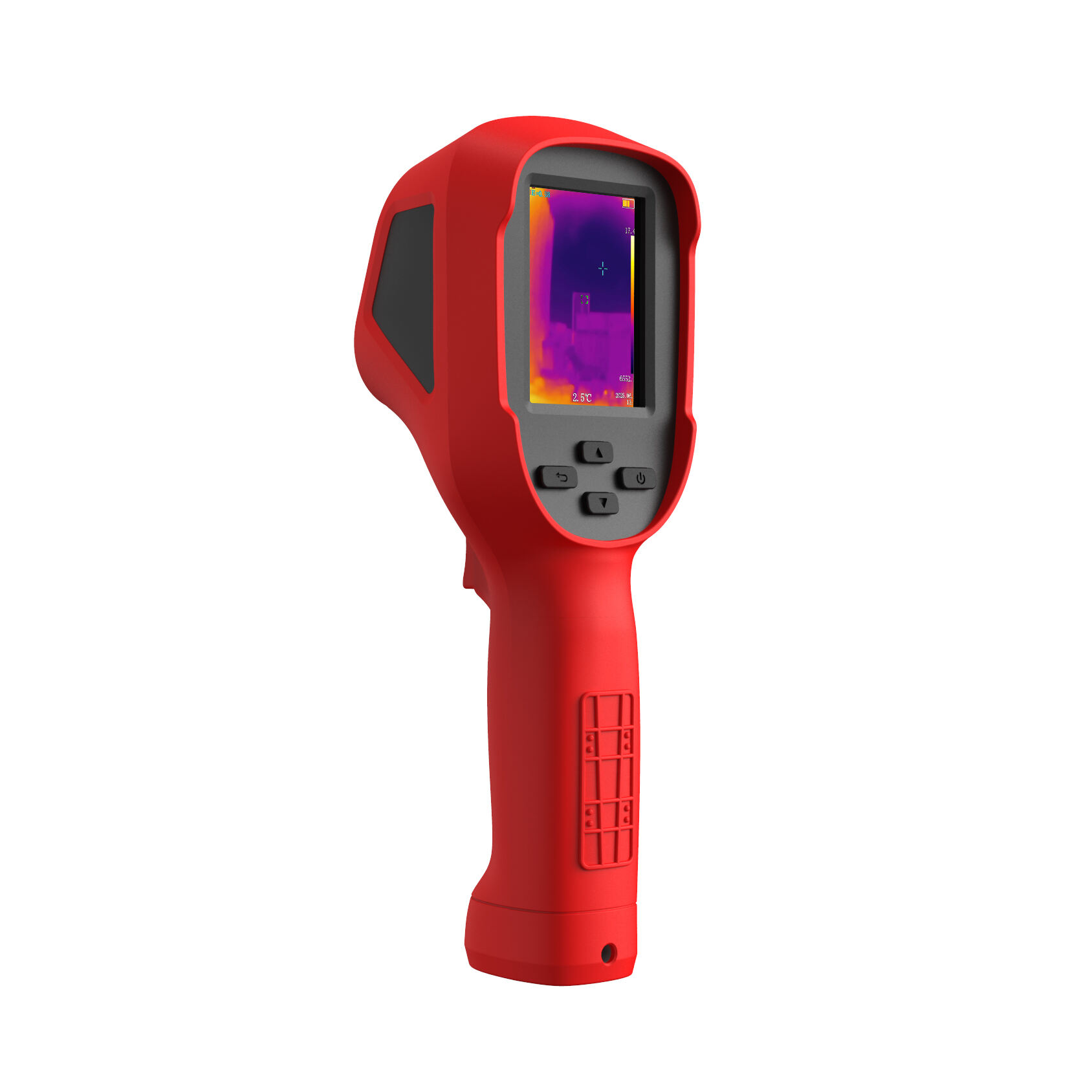

Figure: The LSJ E310 Plus handheld thermal imaging camera, ready for instant one-handed operation.

The Problems the E310 Plus Solves

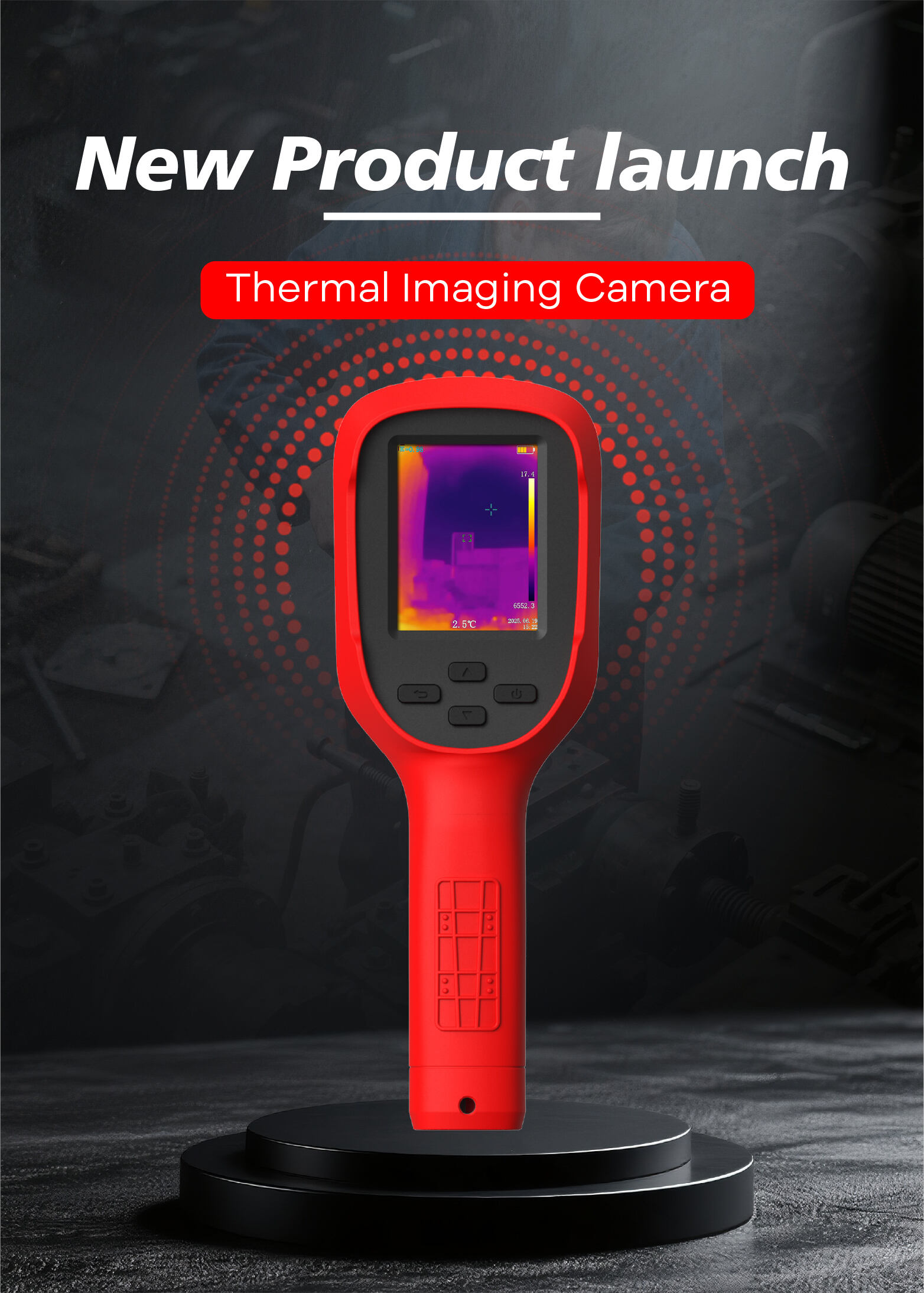

Figure: The ergonomic pistol-grip E310 Plus weighs no more than 460 g, with a bright screen and glove-friendly four-key control pad.

Thermal Detail You Can Trust: 256×192 at 25 Hz

The E310 Plus captures temperature across 49,152 measurement points through an 8–14 µm long-wave lens. A thermal sensitivity of 50 mK distinguishes temperature differences as small as 0.05 °C, while the 25 Hz frame rate keeps the picture smooth when panning across switchgear, motors or pipework. Automatic contour processing sharpens target edges, and cold/hot spot markers lock onto and follow the coldest and hottest points in the scene.

• 256×192 IR resolution, 55°×40° wide field of view, 1.35 mm lens
• More than 8 palettes — Iron, Lava, Rainbow, High Color, White Hot, Black Hot and more
• 1×–4× digital zoom for close inspection of small components

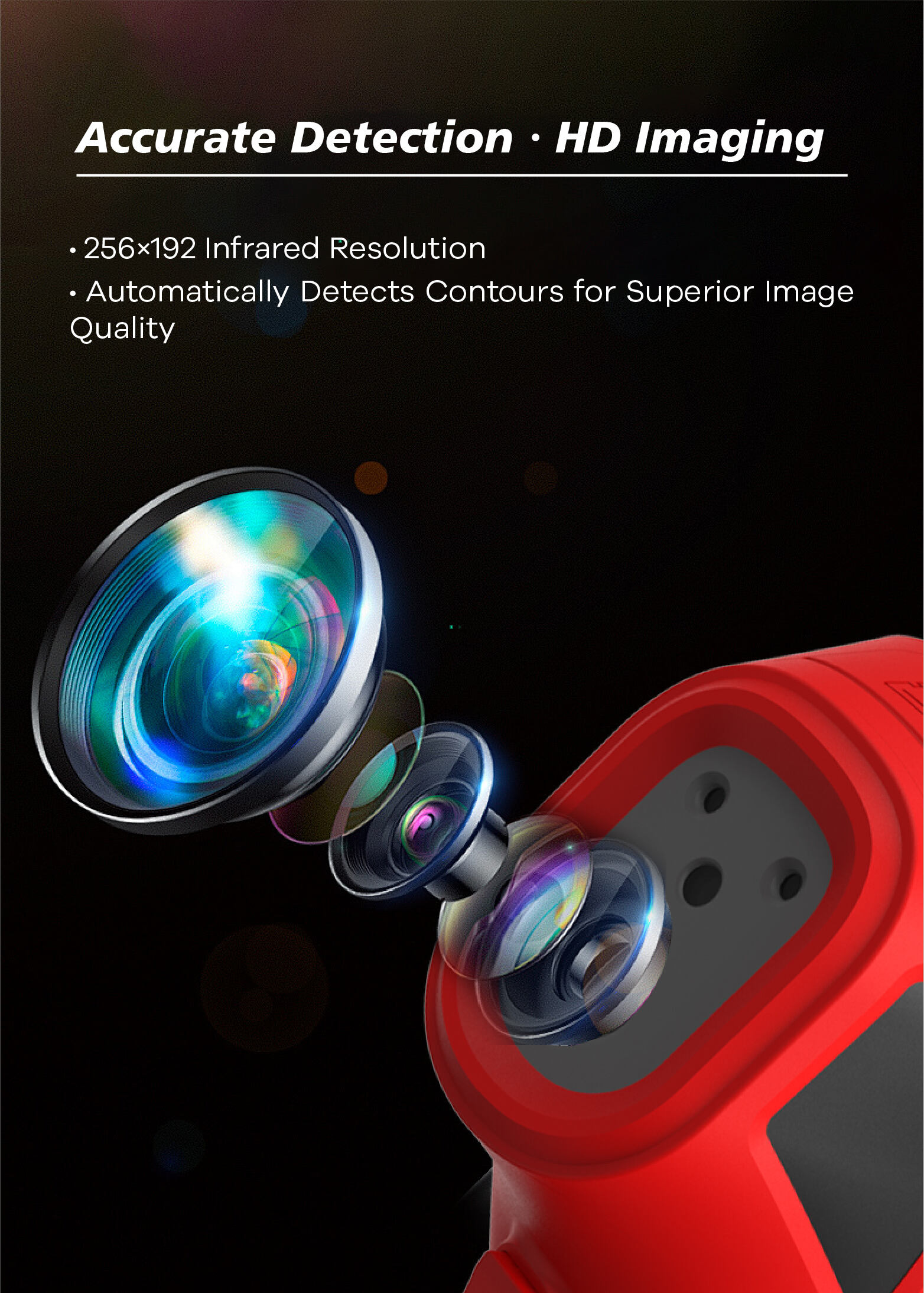

Figure: The E310 Plus dual optical module — a 256×192 long-wave infrared detector with automatic contour detection for crisp, high-contrast thermal images.

2.8-Inch Display and Dual-Mode IR + Visible Imaging

A bright 2.8-inch TFT-LCD (640×480, 25 Hz) shows live thermal video with on-screen maximum, minimum and center-point temperatures. Switch between infrared, visible-light and combined views from the 2 MP visible camera to pinpoint exactly where a hot spot sits on the physical equipment — useful in dark ceiling voids, mechanical rooms and substations.

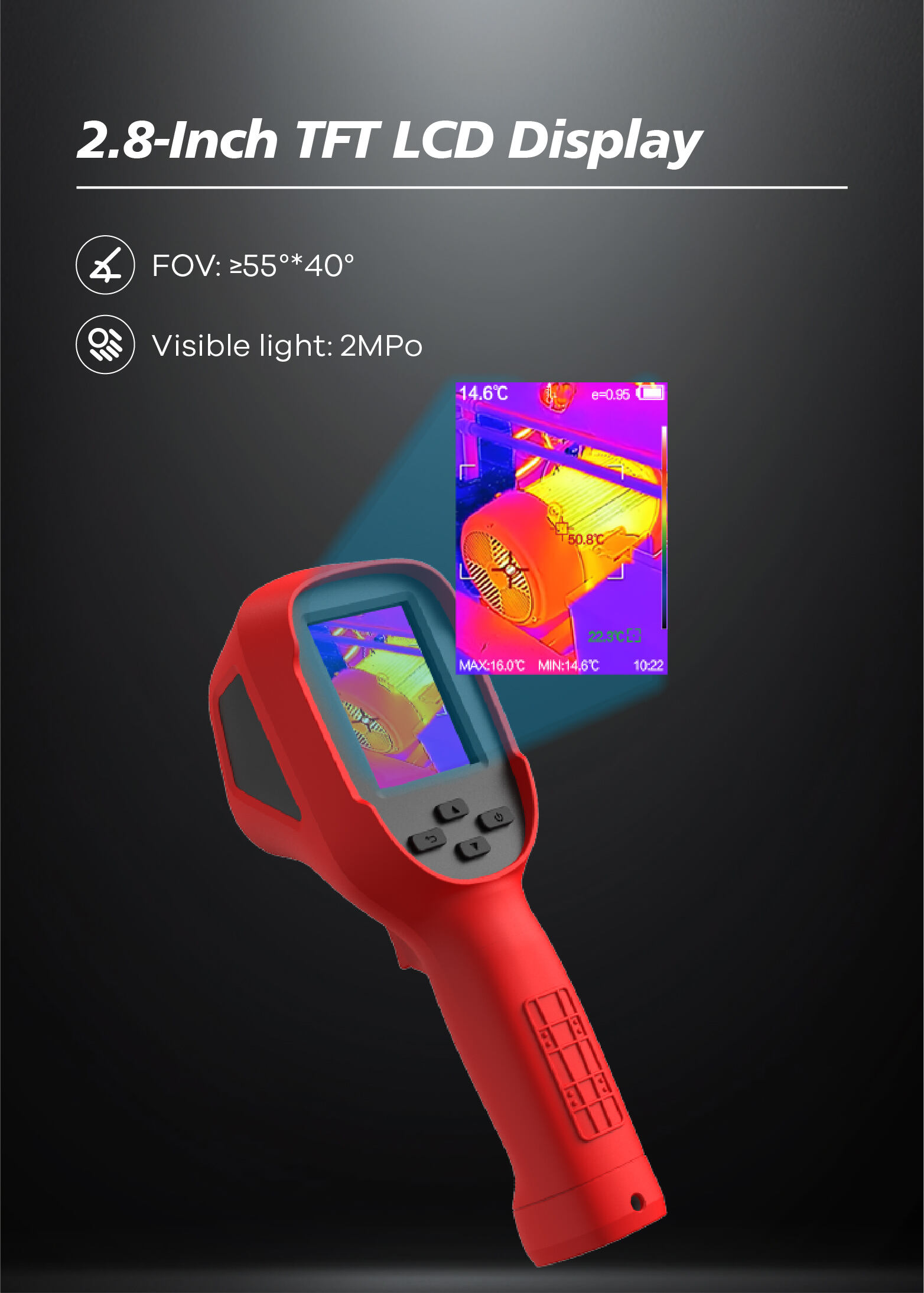

Figure: The 2.8-inch 640×480 display presents live MAX/MIN temperatures against a 55°×40° field of view.

Six Field-Ready Functions in One Hand

Every inspection aid is built in: a LED work light for dark cabinets, a laser pointer to mark the measured spot, 1×–4× digital zoom, automatic hot spot tracking, a temperature alarm and Wi-Fi image transmission. The multi-language menu and selectable °C/°F units suit international crews.

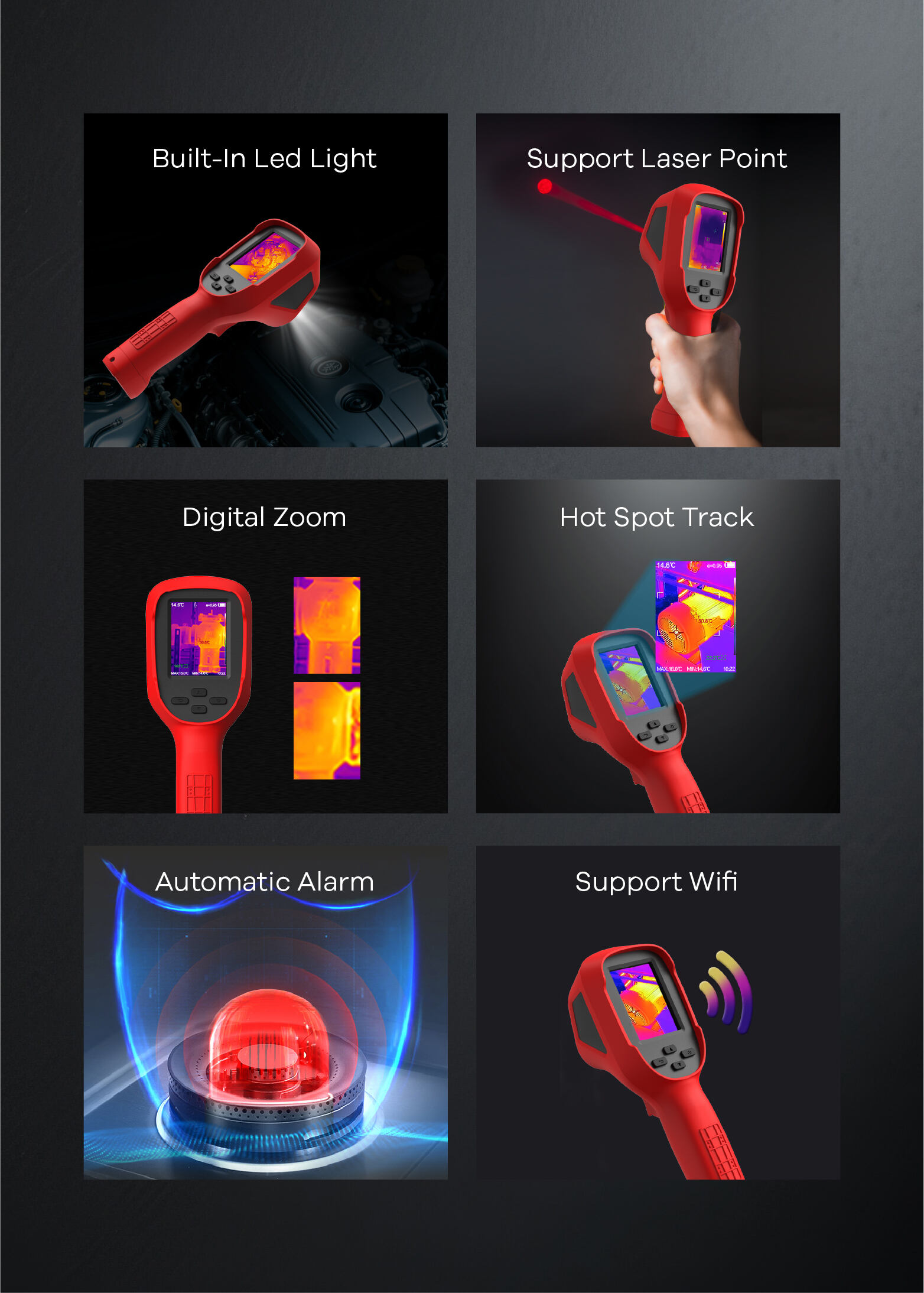

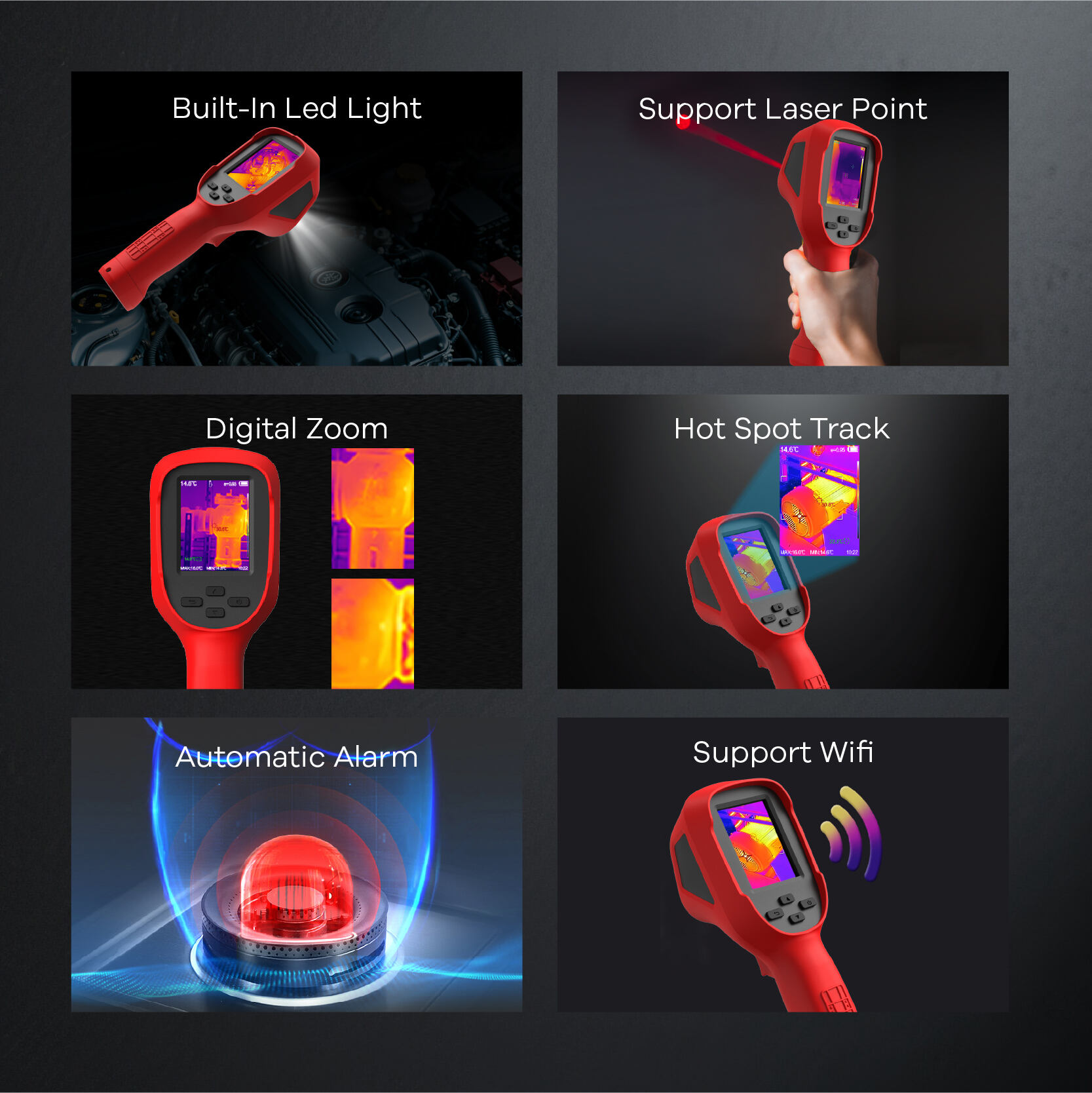

Figure: Built-in LED light, laser pointer, digital zoom, hot spot tracking, automatic alarm and Wi-Fi — six functions on one device.

One Camera, From -20 °C to 650 °C

With automatic range switching, the E310 Plus covers frozen outdoor pipework and refrigeration lines at one end, and hot engines, exhausts, furnaces and electrical busbars at the other — a single -20 °C to 650 °C measurement span with accuracy of ±2 °C below 100 °C and ±2% of reading above 100 °C. There is no need to carry separate low- and high-temperature imagers on a route.

Figure: One imager covers freezing pipework and high-temperature machinery across the full -20 °C to 650 °C range.

Never Miss an Overheating Threshold

Set high and low temperature thresholds manually, or let the camera choose them automatically. When a target crosses the limit, the E310 Plus triggers a flashing LED, an on-screen alert and a buzzer — an audio-visual safety net during panel scans, bearing checks and fireground searches where the operator cannot watch the screen continuously.

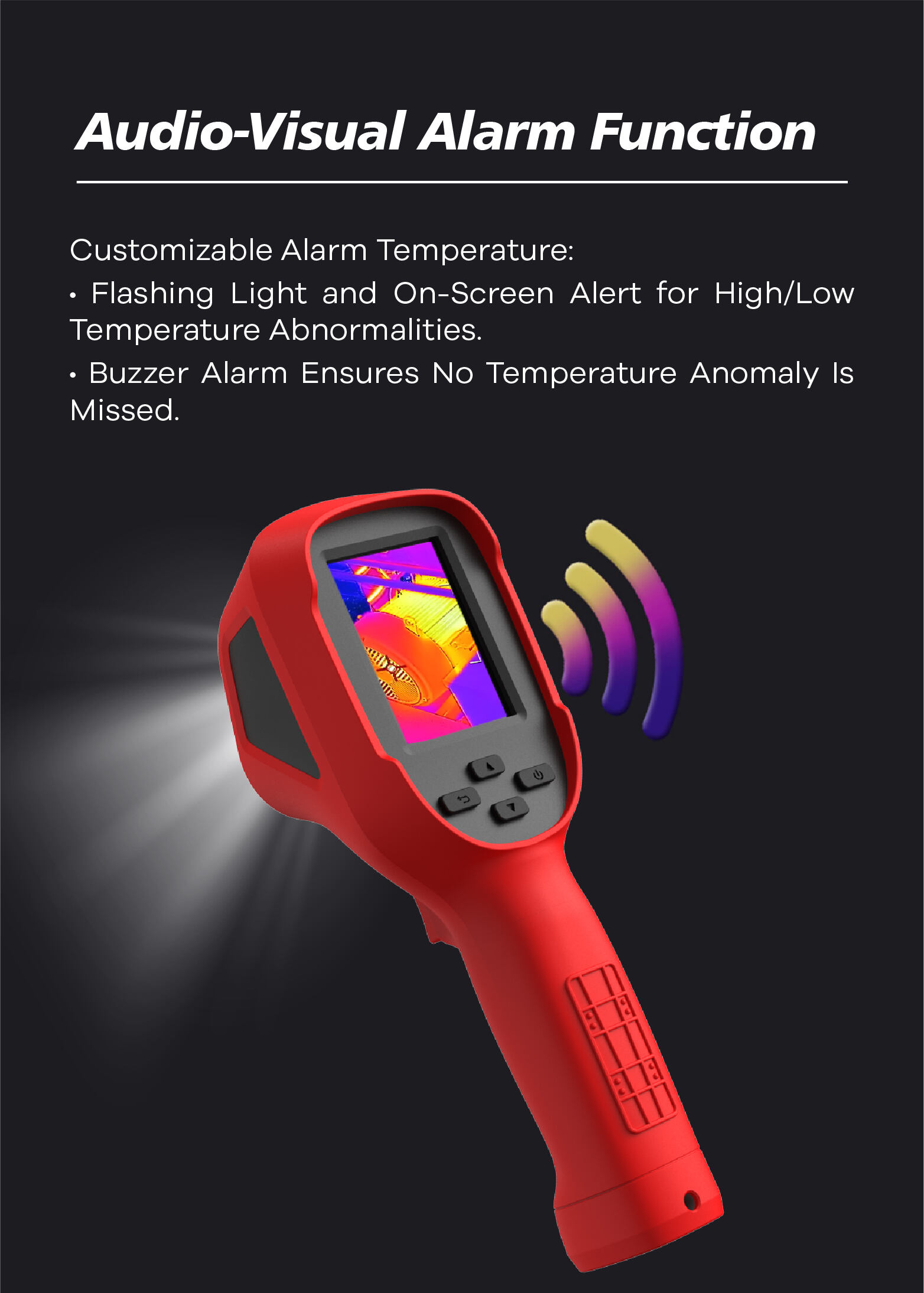

Figure: Customizable high/low temperature alarms combine LED flash, on-screen warning and buzzer so no anomaly is missed.

Capture, Transfer and Report in Minutes

Every thermogram is stored on a plug-and-play SD card (internal memory options from 4 GB to 128 GB) and can be streamed live over Wi-Fi to a smartphone or laptop. The companion analysis workflow supports spot meters, temperature profiles, 3D thermal maps and data export, turning a field capture into a maintenance report with evidence attached. Charging and file transfer both run through a single USB Type-C port.

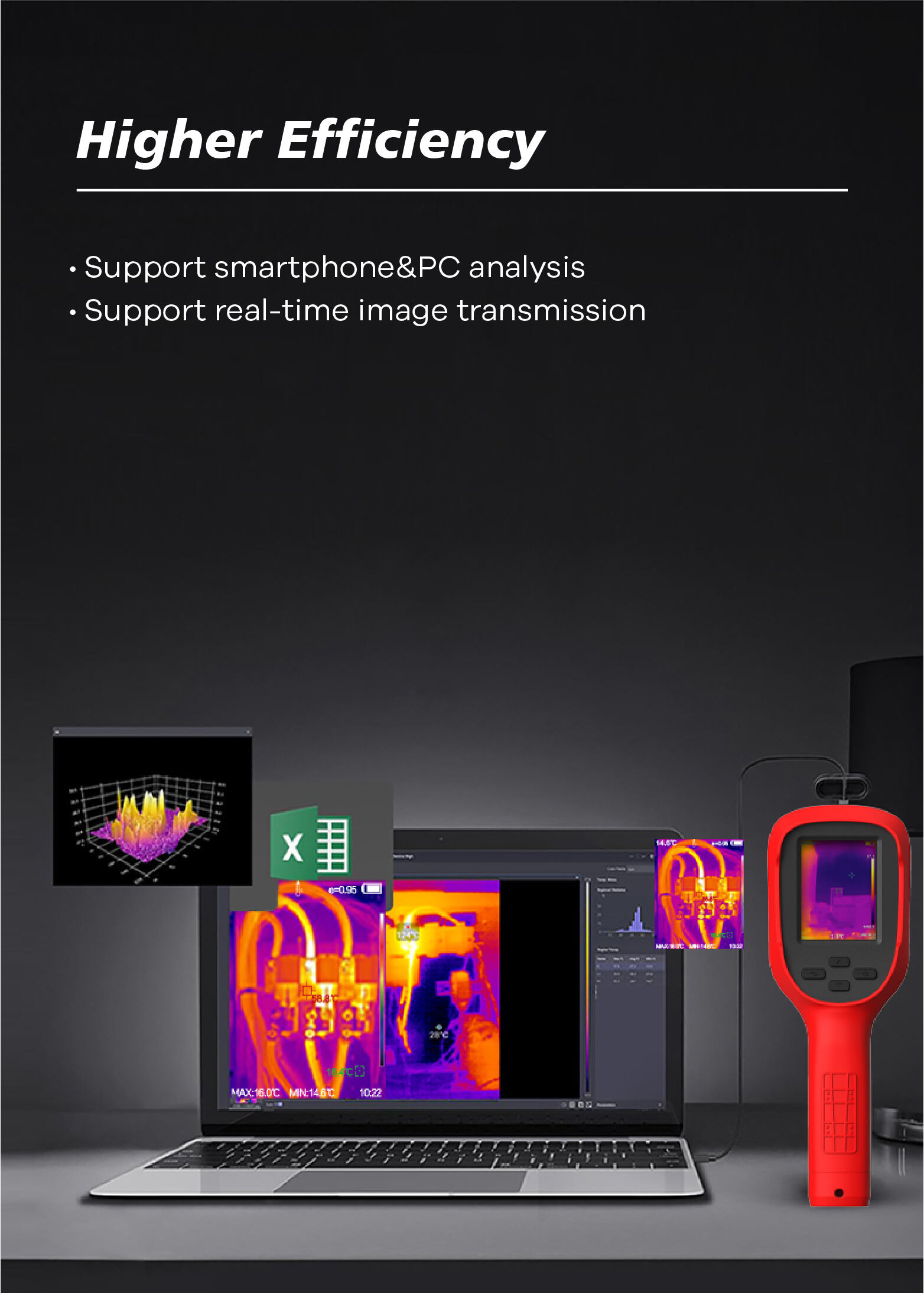

Figure: Real-time Wi-Fi transmission feeds thermal images into PC and smartphone analysis tools for instant reporting.

Rugged Power for Full Shifts

A rechargeable lithium-ion battery delivers more than 5 hours of operation — typically 5–6 hours — on one charge, enough for a full inspection route, with USB Type-C fast charging between jobs.

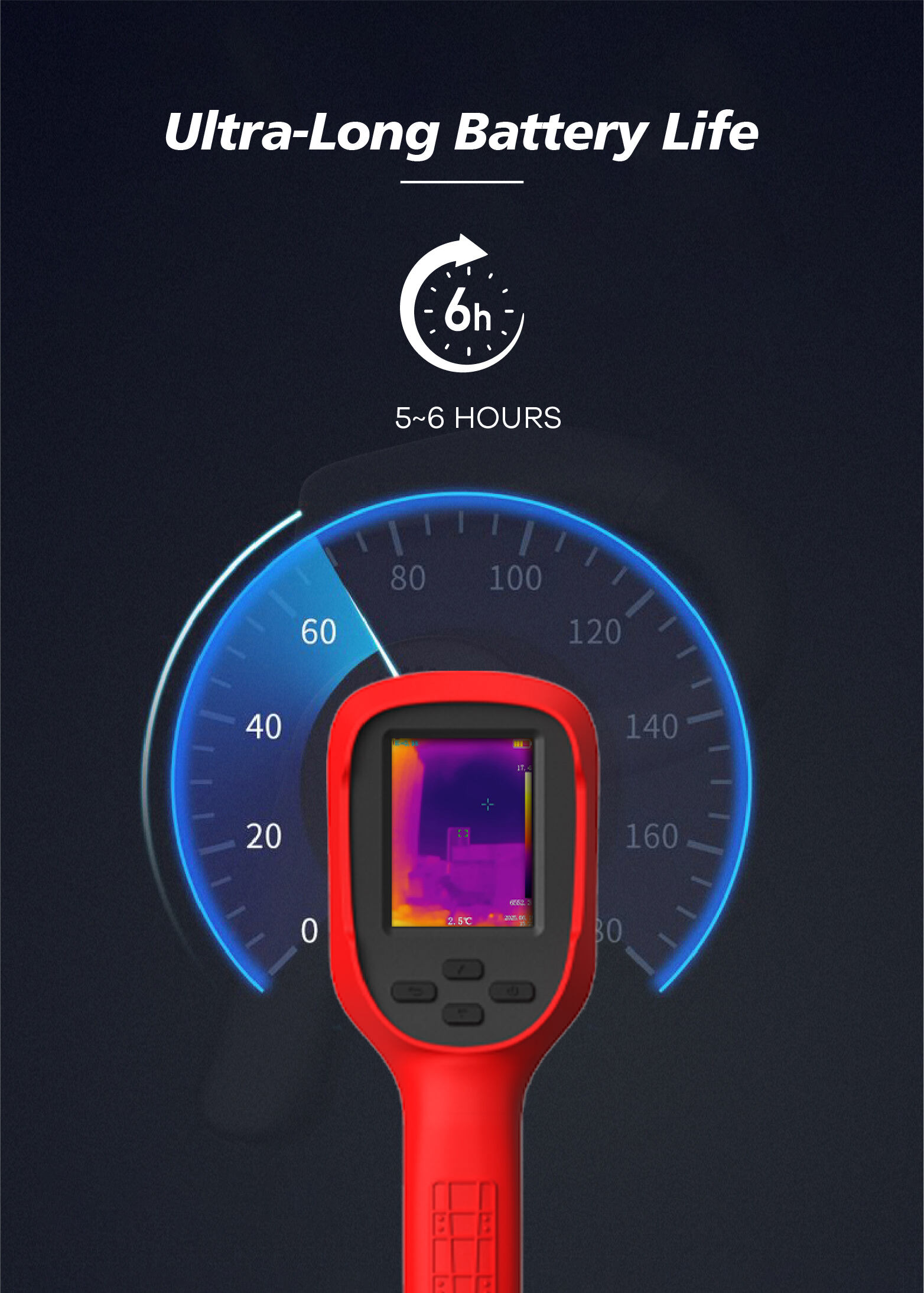

Figure: 5–6 hours of continuous thermal inspection per charge, replenished through USB Type-C.

Engineered for harsh environments:

Where the LSJ E310 Plus Works

One imager serves an entire maintenance and rescue toolkit: electrical and circuit testing (switchgear, terminals, overloads), industrial inspection (motors, pumps, bearings, conveyors), HVAC and refrigeration, water and underfloor-heating leak detection, automotive diagnostics and building heat-loss surveys, alongside firefighting, smoke search, earthquake and tunnel-collapse rescue.

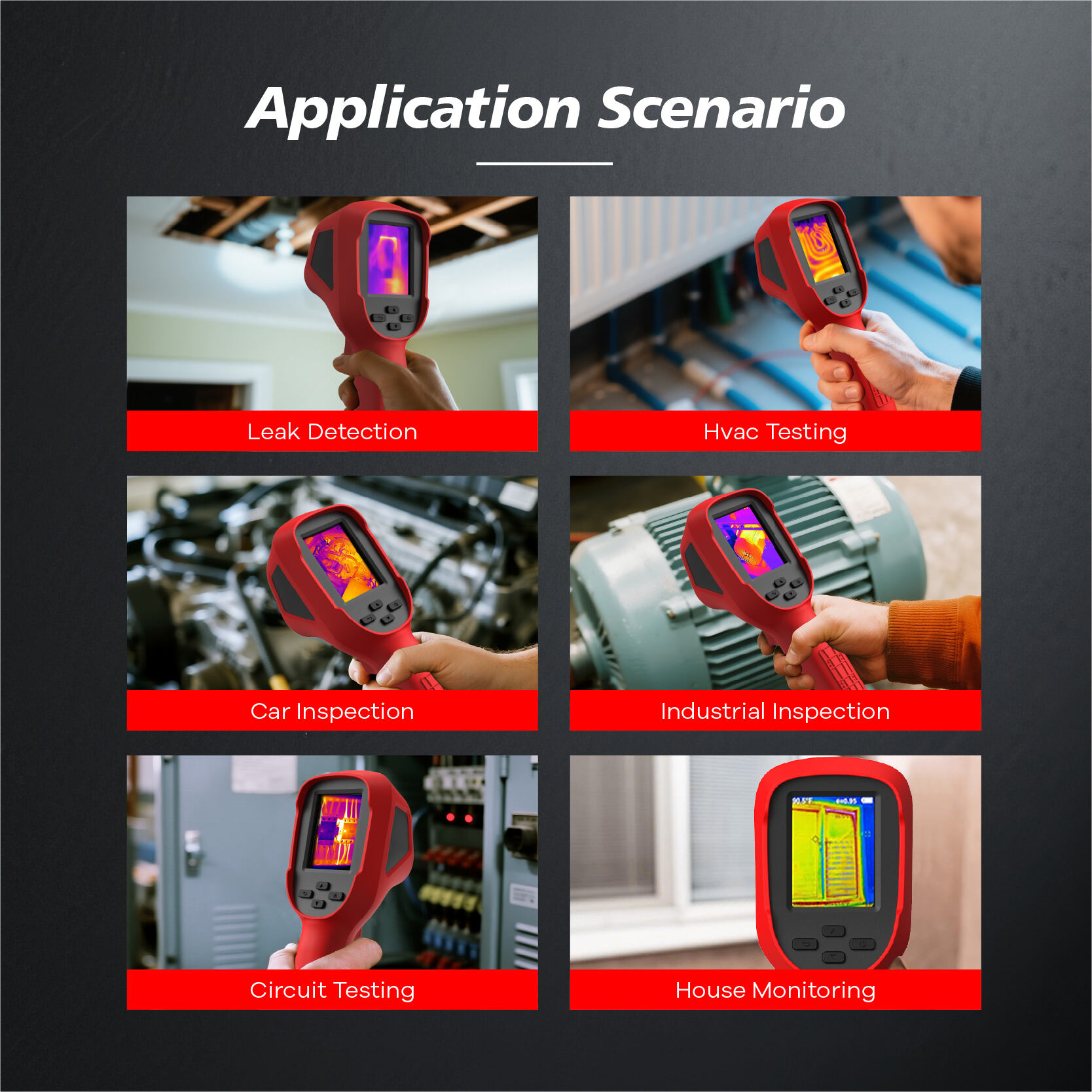

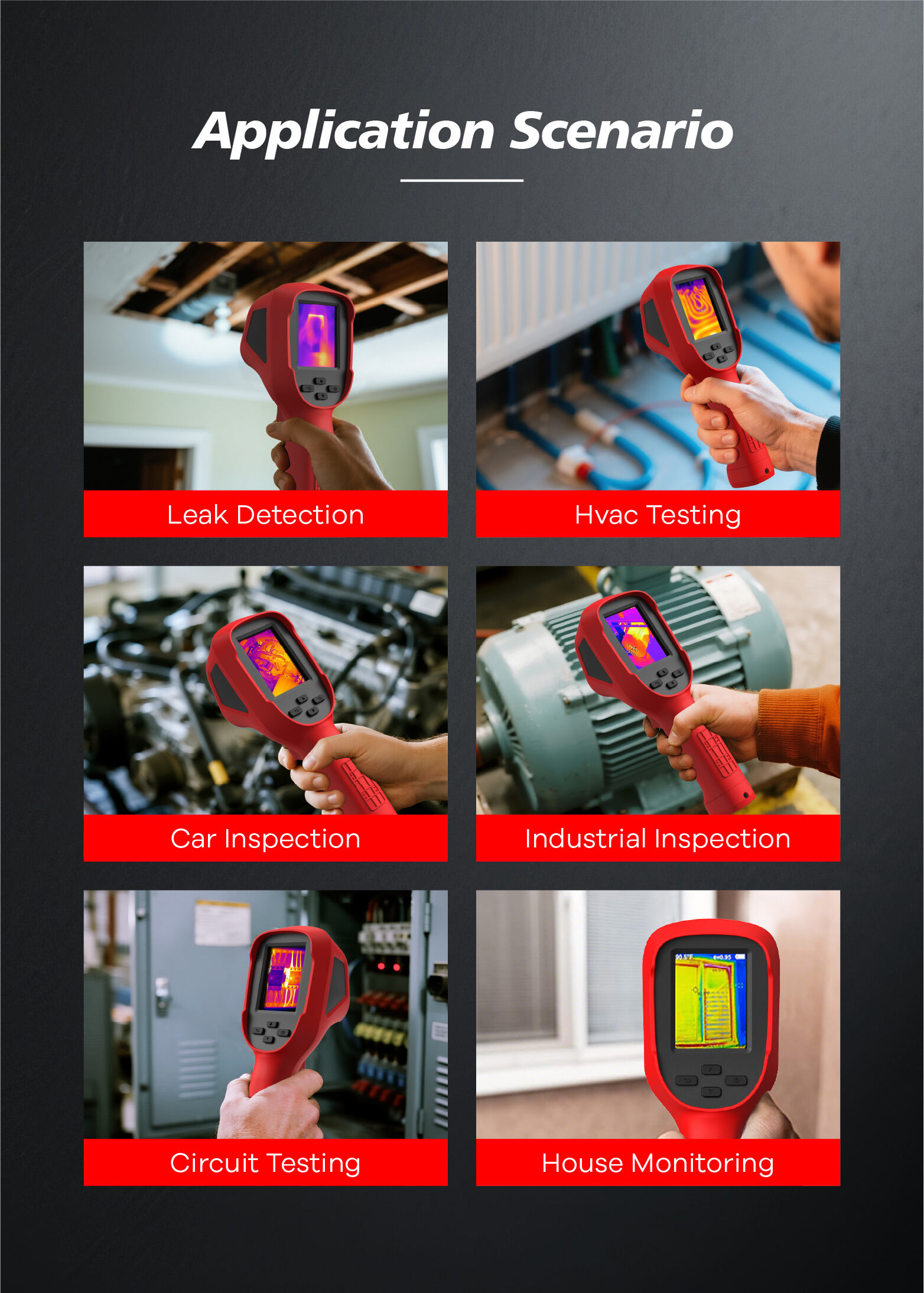

Figure: Six documented applications of the E310 Plus — leak detection, HVAC, automotive, industrial, electrical and building inspection.

HVAC, Plumbing and Hidden Leak Detection

Buried underfloor heating loops, blocked radiators and concealed pipe leaks show up as temperature anomalies on walls, floors and ceilings. The E310 Plus traces the full pipe path non-destructively, so plumbers and HVAC technicians can mark the repair point before opening any surface.

Figure: Tracing underfloor heating circuits and hidden plumbing leaks with the E310 Plus thermal view.

Firefighting, Smoke Search and Rescue

In dense smoke, darkness or collapsed structures where the naked eye fails, the E310 Plus reveals fire seats, heat spread through walls and the thermal silhouette of trapped people. The sealed IP67 body is rated for short-duration high ambient heat — at least 30 minutes at 80 °C, 10 minutes at 120 °C and 5 minutes at 260 °C — and the LED light, laser pointer and buzzer alarm support rapid, hands-busy search operations.

Figure: Firefighters use the E310 Plus to navigate smoke-filled structures, locate the fire seat and guide search-and-rescue.

Built by LSJ: SGS-Certified Manufacturing at Scale

LSJ designs and manufactures professional rescue and inspection instruments in an SGS-certified production facility with a daily capacity of 700–1,000 units, supported by in-house assembly, calibration, electrical testing and QC lines. Distributors, rental fleets and fire-service procurement teams can rely on consistent build quality, stable supply and responsive OEM/ODM service.

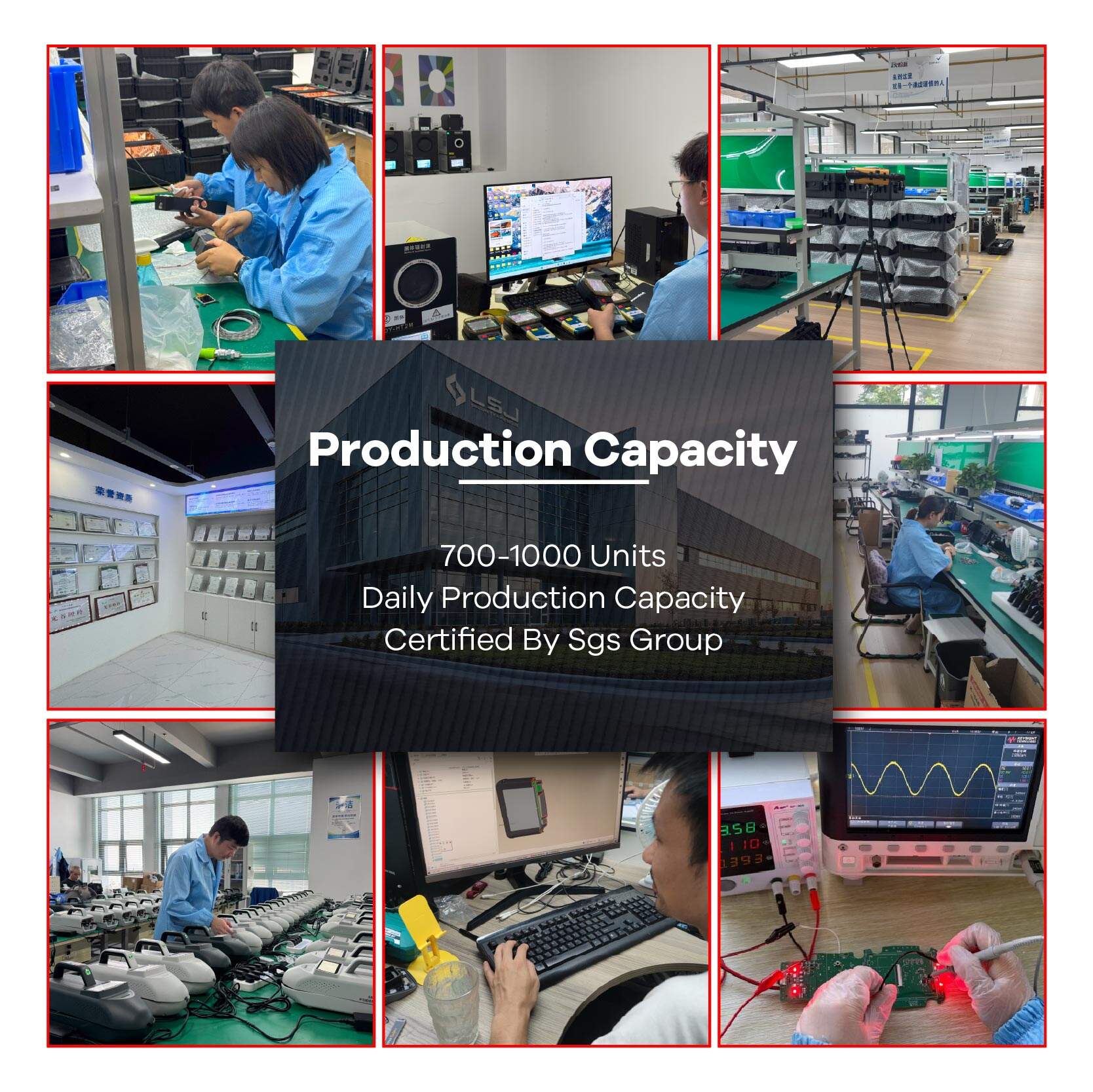

Figure: LSJ's SGS-certified manufacturing campus — assembly, calibration and QC lines producing 700–1,000 units per day.

Frequently Asked Questions

Q: What temperature range does the LSJ E310 Plus measure?

A: It measures from -20 °C to 650 °C with automatic range switching. Accuracy is ±2 °C for targets at or below 100 °C and ±2% of the reading above 100 °C.

Q: What is the thermal resolution and sensor specification?

A: The E310 Plus uses a 256×192 long-wave infrared detector (8–14 µm) with 50 mK NETD, a 55°×40° field of view, 1.35 mm lens, 25 Hz frame rate, 1×–4× digital zoom and an additional 2 MP visible-light camera.

Q: Can it be used for firefighting and high-heat environments?

A: Yes. It operates in ambient temperatures from -20 °C to 60 °C and is validated for short-duration exposure of ≥30 min at 80 °C, ≥10 min at 120 °C and ≥5 min at 260 °C. The housing is IP67 sealed and passes a 2 m free-fall drop test.

Q: How long does the battery last, and how is it charged?

A: Its rechargeable lithium-ion battery is rated for more than 5 hours of continuous use (typically 5–6 hours) and charges through a standard USB Type-C port.

Q: How are thermal images stored and shared?

A: Images are saved to a plug-and-play SD card with internal memory options of 4, 8, 16, 32, 64 and 128 GB, and can be streamed in real time over Wi-Fi to smartphone or PC analysis software for reporting.

Q: Which industries and applications is the E310 Plus used for?

A: Electrical and circuit inspection, industrial machinery and motor inspection, HVAC and refrigeration service, water leak and underfloor-heating diagnosis, automotive inspection and building heat-loss surveys, plus firefighting, smoke search, night search, earthquake rescue and tunnel-collapse rescue.

Q: How does the temperature alarm work?

A: Automatic hot and cold spot markers follow the highest and lowest temperatures on screen, and configurable high/low thresholds trigger a flashing LED, an on-screen alert and a buzzer. Thresholds can be set manually or assigned automatically.

Q: Who manufactures the E310 Plus, and can volume orders be supported?

A: The E310 Plus is designed and manufactured by LSJ in an SGS-certified factory producing 700–1,000 units per day, supporting distributors and volume B2B procurement with OEM/ODM options. Contact LSJ for a quotation tailored to your market.

LSJ E310 Plus Thermal Imaging Camera — Technical Specifications

Complete parameter sheet for the LSJ E310 Plus handheld infrared thermal imager. All values are factory specifications.
