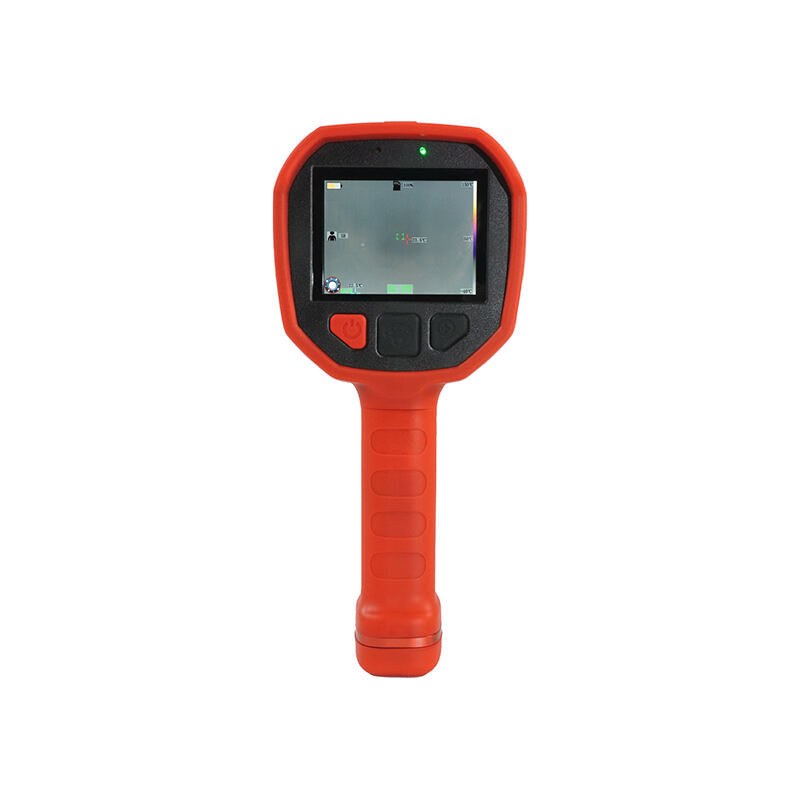

LSJ TIG10 Handheld Optical Gas Imaging Camera

Core Capabilities

Make Gas Leaks Visible

Thermal imaging tools designed to help incident teams assess visibility-limited environments and support search, inspection, and command decisions.

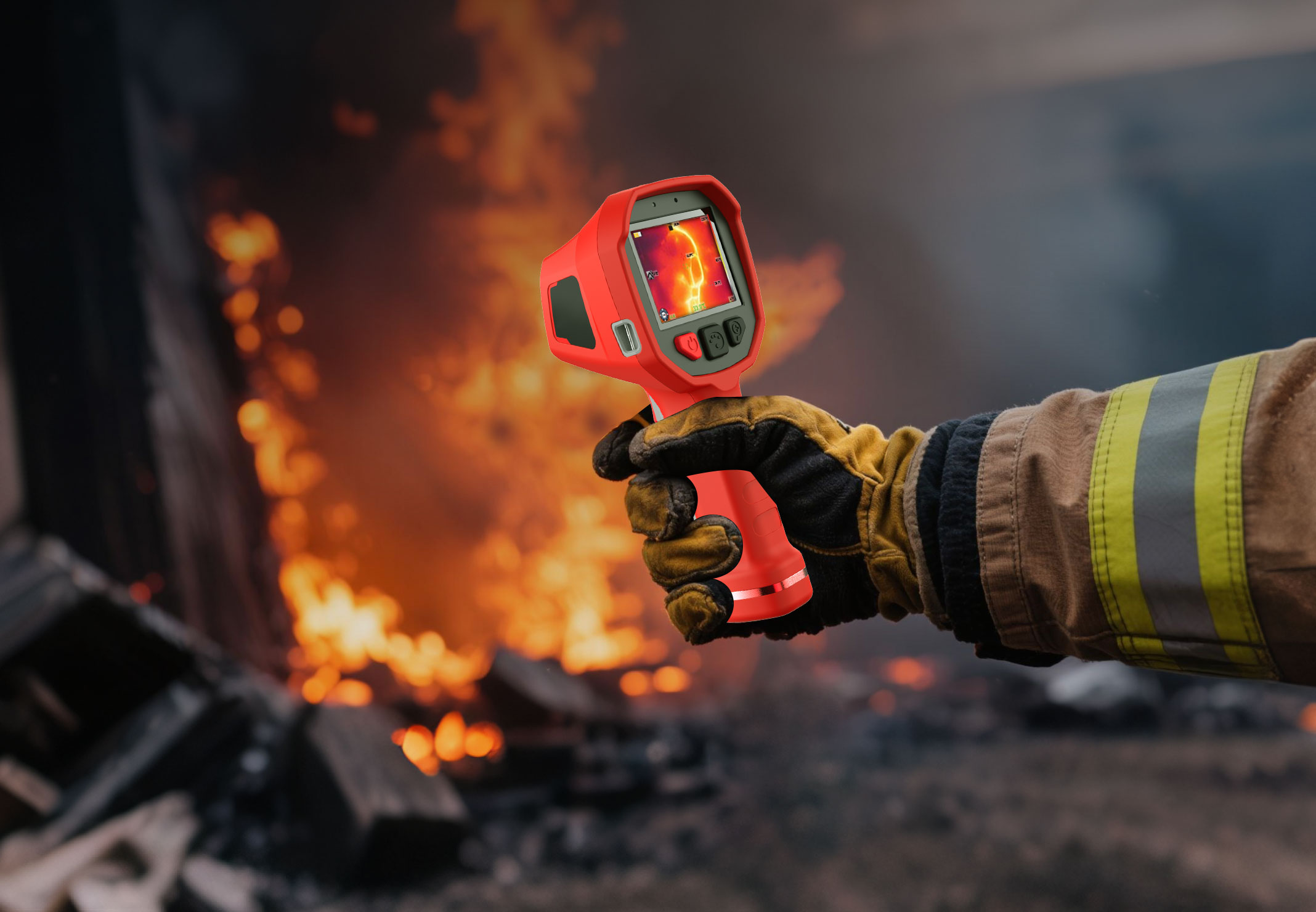

Thermal imaging in a smoke-filled environment

CAPABILITY 01

See Invisible Gas Leaks

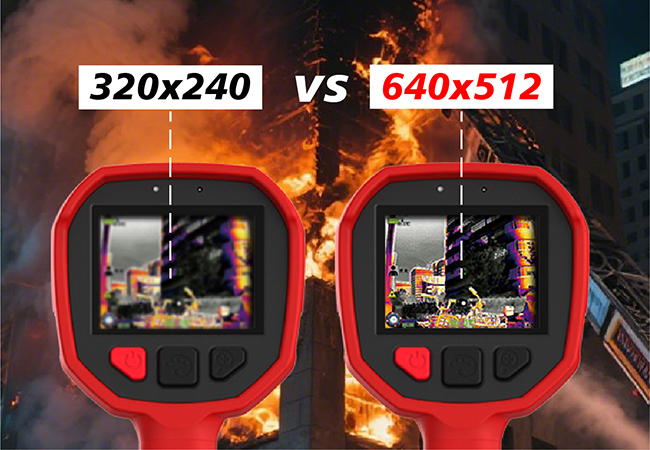

The stated 640 × 512 uncooled LWIR detector, 12 μm pixel pitch, and NETD below 30 mK support recognition of subtle temperature differences.

Helps identify heat signatures and structural features where visible-light cameras are limited by smoke
60 Hz frame rate supports smoother scanning while moving
Selectable palettes help crews distinguish temperature differences

CAPABILITY 02

One Camera for Gas, Fire and Inspection

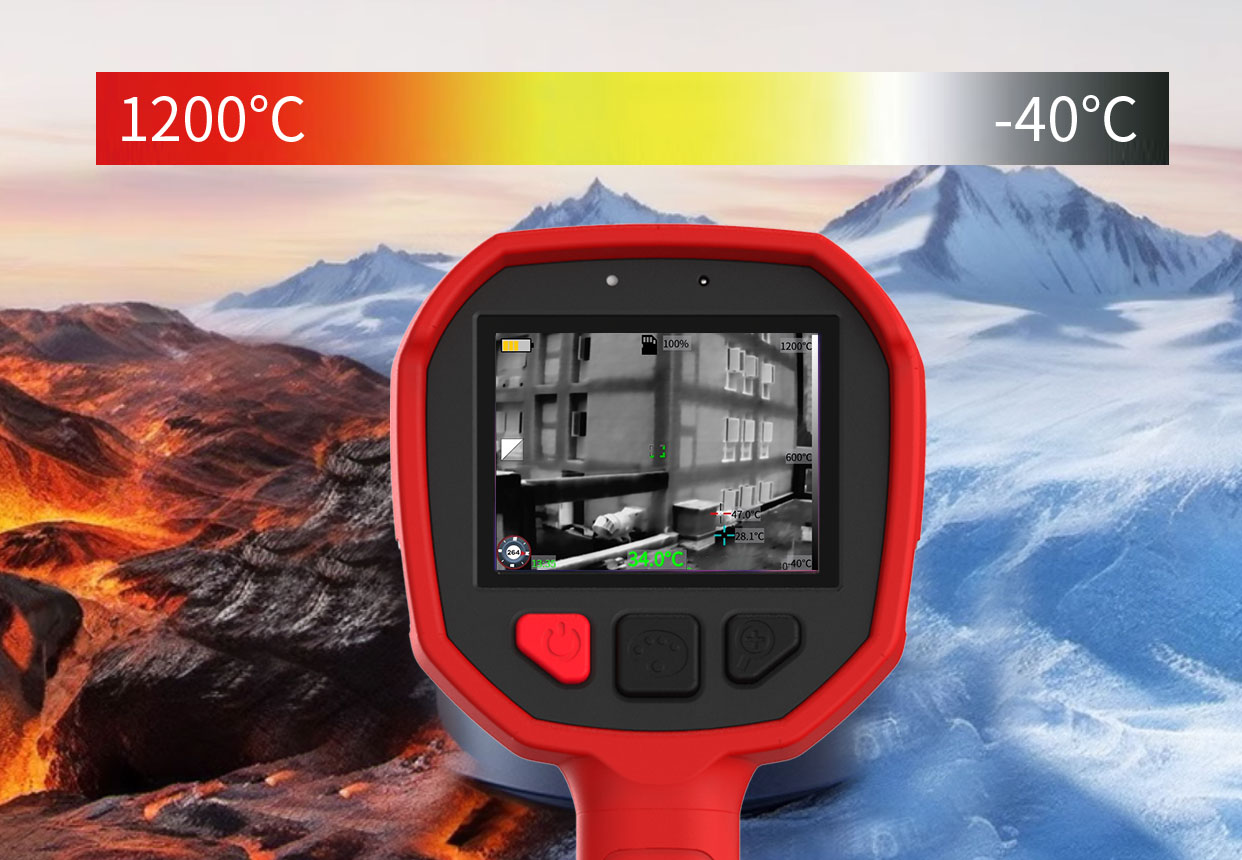

The stated -40°C to 1,200°C measurement range uses automatic range switching to support both lower-temperature search tasks and assessment of high-heat areas.

Lower range (-20°C to 150°C) for personnel search and residual hot-spot checks
Upper range (0°C to 1,200°C) for high-temperature scene assessment
Center-point and maximum-temperature tracking with configurable alerts

Handheld thermal camera with wide measurement range

Display and gloved operation in field conditions

CAPABILITY 03

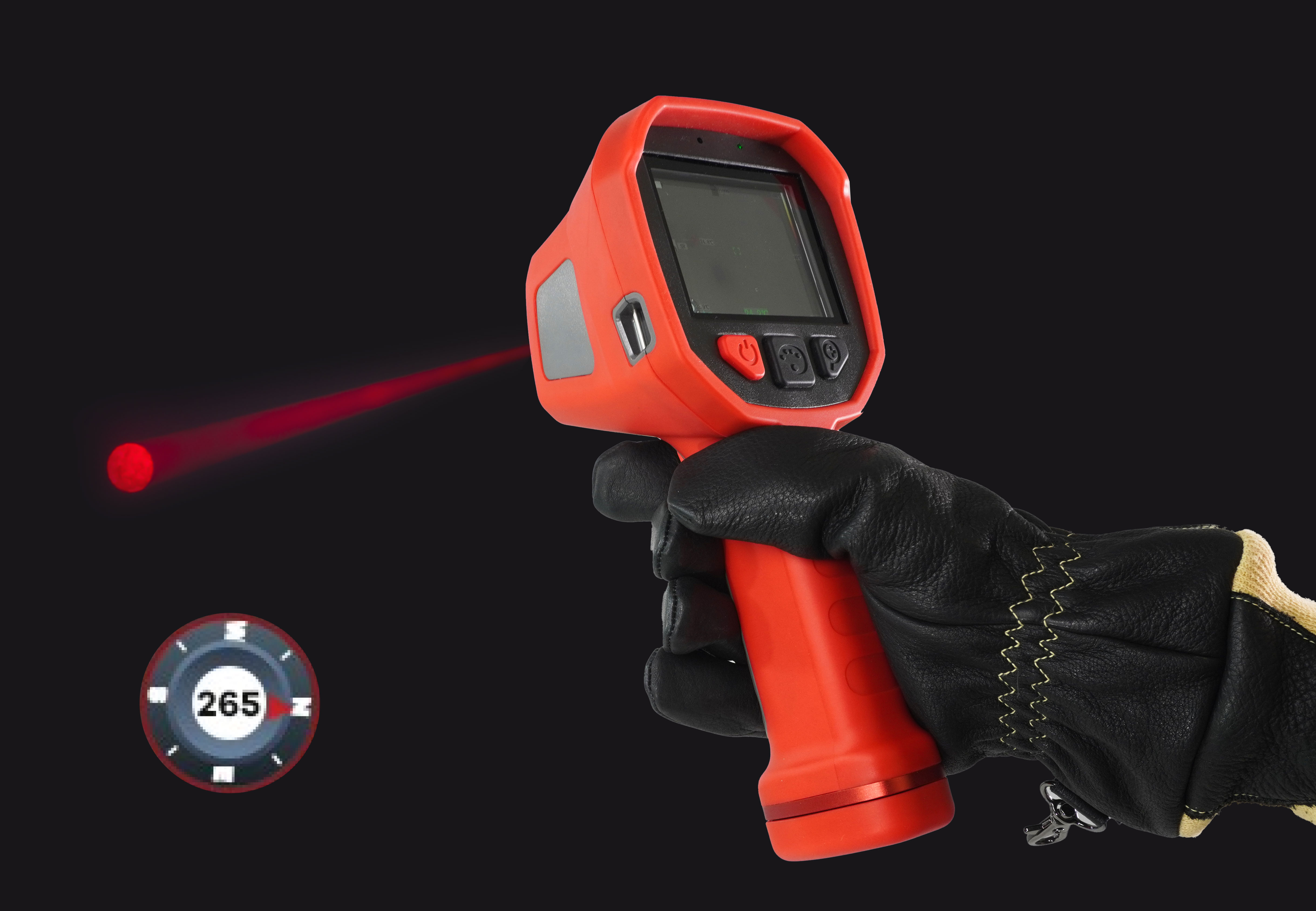

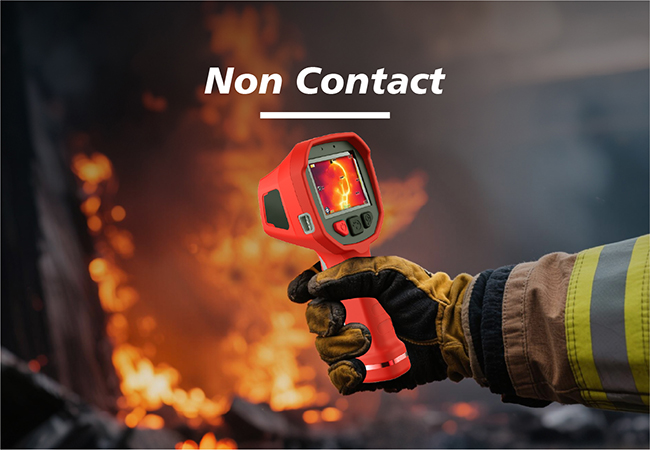

Glove-Friendly OGI Controls

A 3.5-inch color TFT LCD, 640 × 480 provides a larger viewing area than an eyepiece-based design. Physical controls support operation with protective gloves.

Large display for scanning and sharing observations on scene
Tactile buttons for switching modes while wearing gloves
Ergonomic grip; stated weight approximately 890 g including battery

CAPABILITY 04

IP67 and Ex ib IIC T4 Protection

The stated IP67 enclosure rating and 2 m drop design address the handling demands of fire and rescue operations. Request test documentation for procurement review.

Sealed housing rated IP67 for dust and water ingress protection
Shock-absorbing construction designed for a 2 m drop
Stated operating temperature: -20°C to +60°C; confirm exposure limits for specific applications

Water-resistance test and rugged housing

CAPABILITY 05

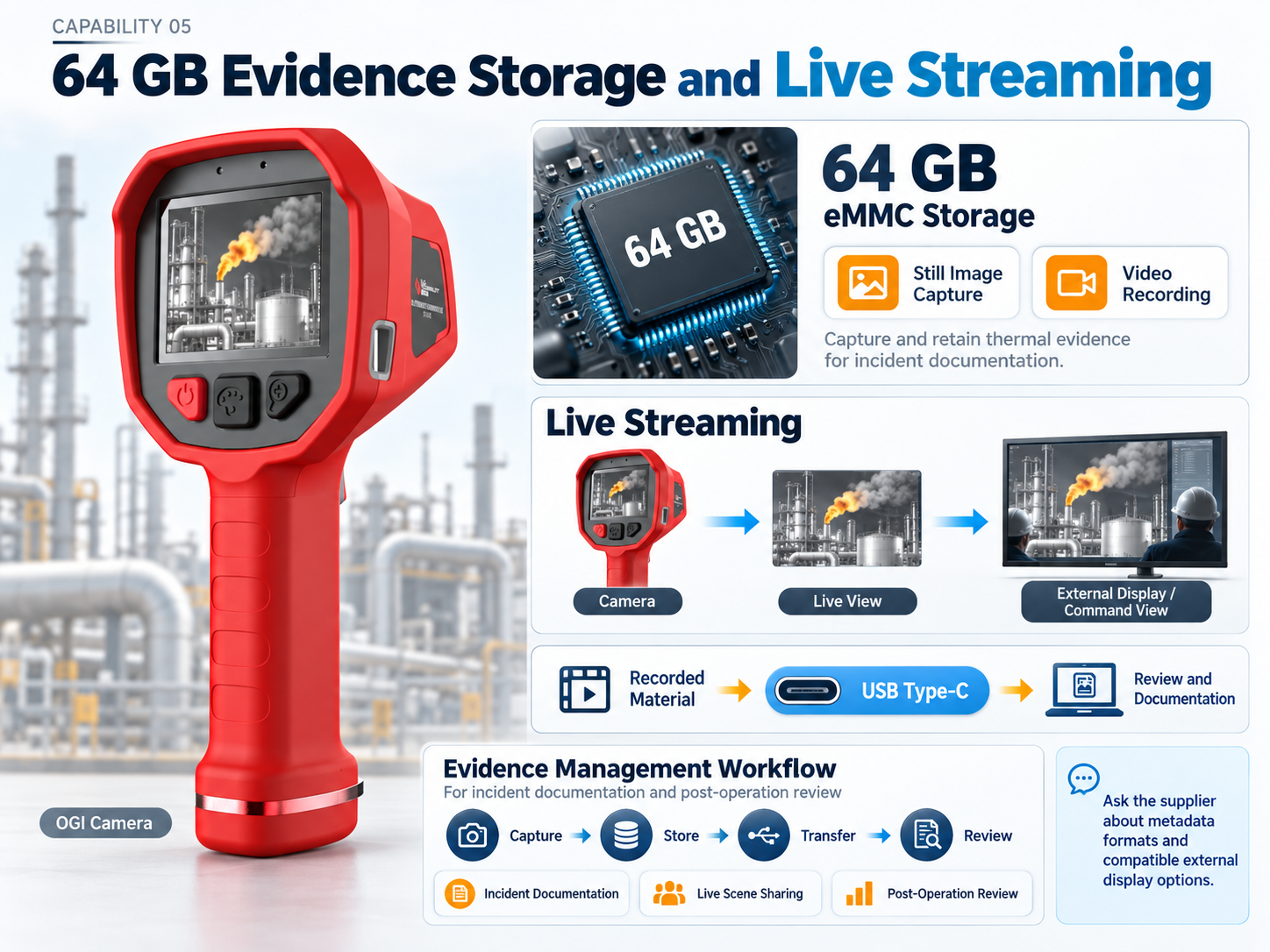

64 GB Evidence Storage and Live Streaming

The stated 64 GB eMMC storage supports thermal-image capture and video recording for incident documentation and post-operation review.

Capture still images and video directly from the camera
USB Type-C connection for transferring recorded material
Ask the supplier about metadata formats and compatible external display options

CAPABILITY 06

Up to 12 Hours with Two Batteries

The proposed kit includes two rechargeable batteries and a carrying case to support deployment, charging, and equipment handling across shifts.

Up to 6 hours per swappable battery; two batteries support up to 12 hours of shift coverage
Dual-slot charging dock; confirm vehicle-power accessories when ordering
Protective carrying case for storage and transport

Make Gas Leaks Visible. Make Every Second Count.

Request the TIG10 datasheet, CNAS/CMA reports, factory quotation or live demonstration.

Applications

Gas Imaging Across Fire, Rescue and Industrial Inspection

Applicable to municipal fire services, industrial emergency teams, hazardous-materials sites, and wildfire response units, subject to operational requirements.

Structural firefighting and search operations

Fire & Rescue

Use thermal contrast to assist with locating people, assessing access routes, and identifying heat patterns in smoke-filled structures. Always apply established entry and rescue procedures.

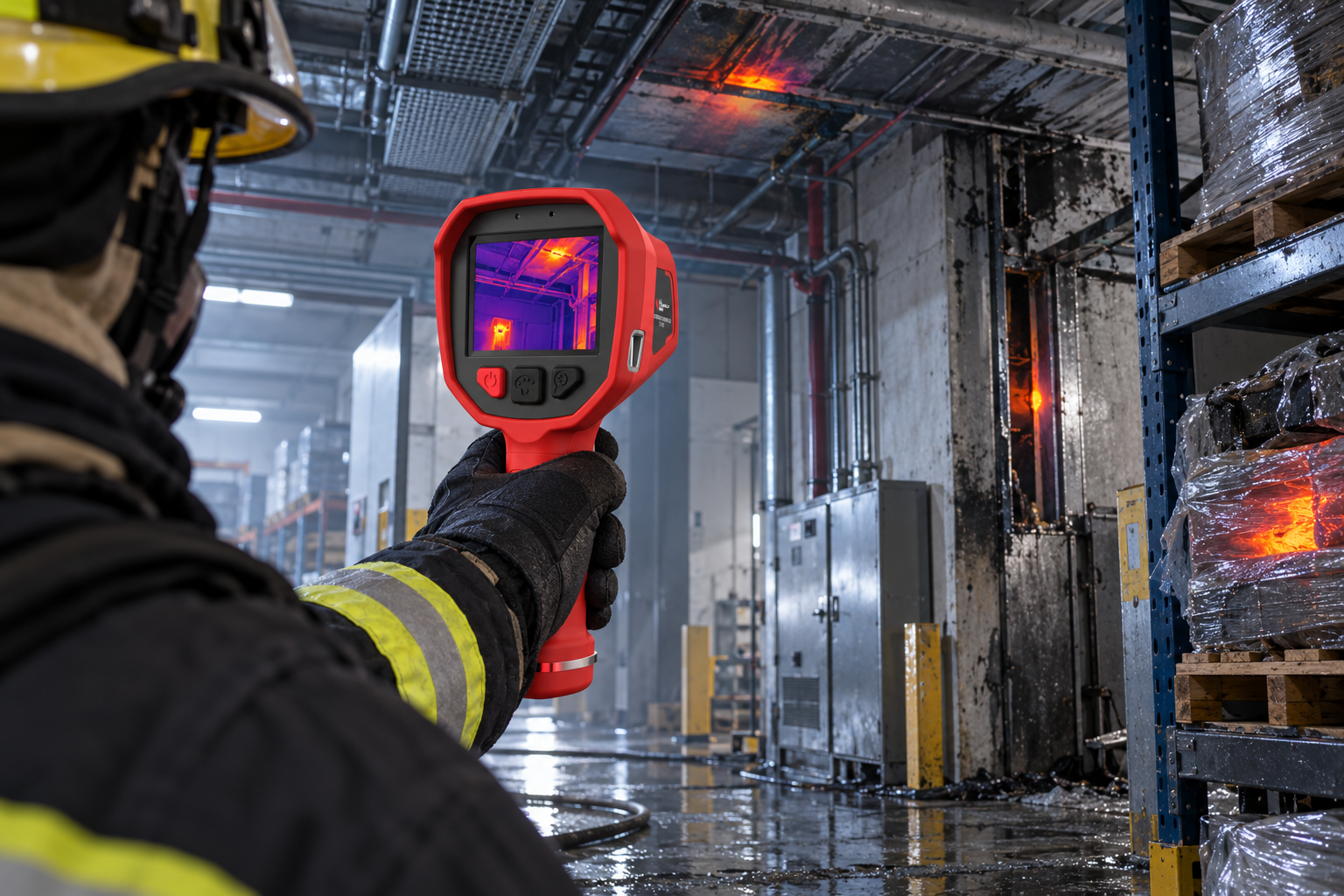

Overhaul and residual hot-spot inspection

Gas Leak Detection

After suppression, scan ceilings, partitions, voids, and stored materials for thermal anomalies that may warrant closer inspection and follow-up.

Industrial site inspection and emergency response

Petrochemical & Equipment Inspection

Assess surface temperature patterns on tanks, process equipment, and electrical enclosures. Thermal imaging is an inspection aid, not a stand-alone gas-leak detector.

Operational Scenario

Scan from a Safe Stand-off Distance

The scenario below illustrates how a thermal camera may support an incident team. It is not a documented customer case study.

Illustrative warehouse fire response scenario

Locate the Source, Not Just the Concentration

Situation

A warehouse fire creates dense smoke and limits visual assessment of storage aisles and overhead structures.

Potential use

A team could use the LSJ-TIG10 to compare thermal patterns along access routes, check for potential occupants, and identify elevated temperatures for further assessment. Thermal images cannot see through solid walls and must be interpreted alongside other scene information.

Decision support

Findings may inform search priorities and structural risk discussions under the incident commander's procedures. Outcomes depend on conditions, training, and additional equipment.

Why Work With LSJ

Manufacturing Capability
Built Around Procurement Needs

Explore the production facilities, compliance documents, and international exhibitions presented in the materials below. Confirm product-specific certifications and current manufacturing capabilities with the supplier before placing an order.

16years Manufacturing
experience

4document types CE · ISO · MSDS · RoHS
shown in supplied image

GLOBAL International trade-show
engagement

Supplied collage of LSJ manufacturing, assembly, and testing areas

01 · PRODUCTION

Assembly and Testing Capability

The supplied company materials describe 16 years of manufacturing experience alongside assembly and testing activities. Confirm the applicable product line, current capabilities, and lead time when requesting a quote.

Supplied collage of CE, ISO, MSDS, and RoHS-related documents

02 · CERTIFIED

Documentation for Due Diligence

Request current, product-specific documents and verify their scope before use in a tender or import review.

CEISOMSDSRoHS

LSJ team and visitors at international trade exhibitions

03 · GLOBAL

Product Discussions at Global Events

Explore images of industry exhibitions and in-person discussions with international partners and emergency-response professionals.

Click an image for a larger view · Request a facility visit or document verification

Fire-rescue thermal demonstration with live temperature markers and high-heat imaging.

Operation Video

See the LSJ-TIG10 in Operation

Watch the TIG10 in a fire-rescue demonstration as its thermal display reveals high-heat areas and shows live temperature markers while the operator scans the scene.

Handheld operation with the red TIG10 camera and a stated 2 m anti-drop design

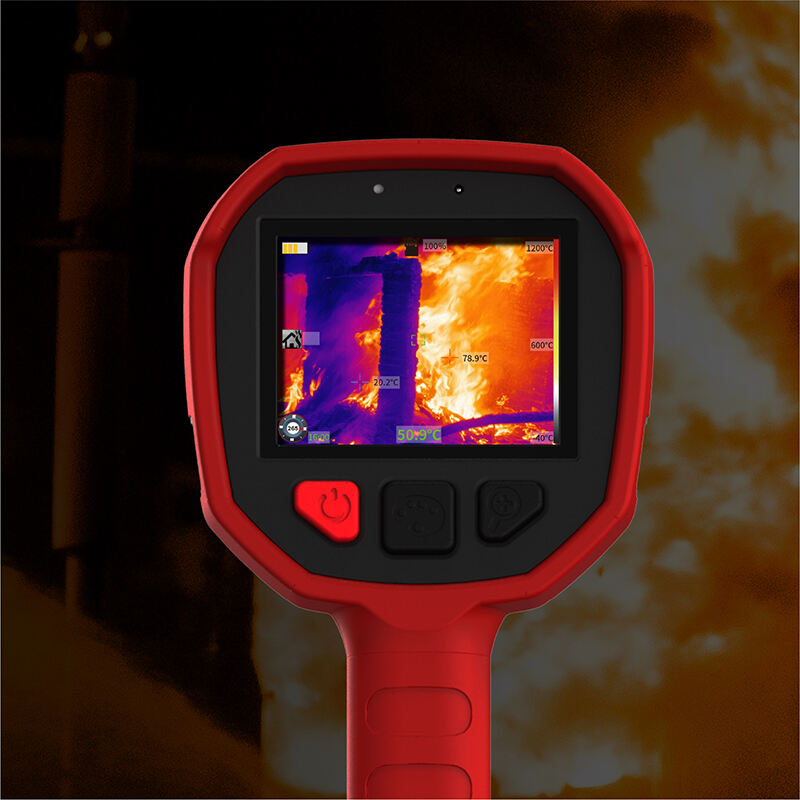

Live thermal view shows firefighters and high-heat areas in a fire-rescue scene
On-screen temperature markers and a 1200°C range support high-heat assessment

Technical Specifications

LSJ-TIG10 Technical Specifications

Specifications below reflect the source material for this page and should be confirmed against the latest manufacturer datasheet and applicable test reports before procurement.

Parameter	Stated Specification
Infrared detector	Uncooled FPA, 640 × 512 px, 12 μm pitch
Spectral range	8–14 μm LWIR; passive optical gas imaging
Thermal sensitivity (NETD)	≤ 30 mK
Frame rate	≥ 60 Hz
Field of view / lens	33° × 27° FOV; 13 mm athermalized fixed-focus lens
Digital zoom	2× / 4×
Visible-light camera	5 megapixels; visible, picture-in-picture and thermal/visible fusion modes
Detectable gases	Methane, SF6, ammonia, ethylene, vinyl chloride, propylene, sulfur dioxide, nitrous oxide and other gases with 8–14 μm absorption bands

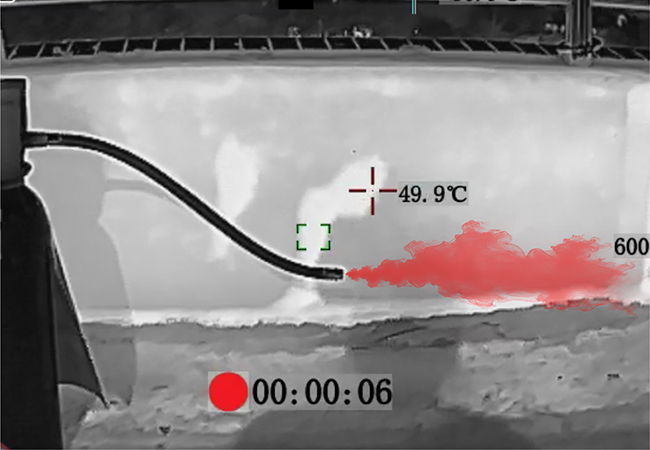

Leak visualization	Dedicated gas-detection mode shows leak plume, source location and diffusion direction live on screen
Temperature range	−40°C to +1200°C, automatic range switching
Accuracy	±2°C (≤100°C) / ±2% of reading (>100°C), whichever is greater
Display	3.5-inch color TFT LCD, 640 × 480, automatic brightness and anti-fog coating
Storage	64 GB; temperature-annotated images and video; onboard review and deletion
Wireless transmission	Built-in Wi-Fi; optional 4G and GPS/positioning
Battery / runtime	Two swappable Li-ion batteries, up to 6 hours each
Ingress protection	IP67 sealed housing
High-temperature endurance	80°C / 30 min; 120°C / 10 min; 260°C / 5 min
Drop / explosion protection	2 m drop-rated; Ex ib IIC T4 intrinsic-safety design
Weight / dimensions	≤ 0.86 kg including battery; 116 × 114 × 257 mm
Standard / reports	XF/T 635-2023; CNAS/CMA-accredited test reports

Frequently Asked Questions

Procurement and Deployment

Answers to common questions from fire-service procurement teams and end users. Confirm all commercial and technical terms with the supplier.

How does the LSJ-TIG10 differ from a general-purpose industrial thermal camera?

The proposed firefighting configuration emphasizes gloved controls, IP67-rated enclosure protection, a stated 2 m drop design, and temperature measurement up to 1,200°C. Review the applicable test reports and compare each specification with your tender requirements before selection.

Is the TIG10 certified for firefighting and explosive atmospheres?

Yes. The TIG10 is designed to XF/T 635-2023 and rated Ex ib IIC T4, with IP67 sealing and CNAS/CMA-accredited test reports.

What is the battery life and weight during a full shift?

Two swappable Li-ion batteries provide up to 6 hours each, for up to 12 hours of shift coverage. The camera weighs approximately 0.86 kg with battery.

How does live video reach the incident commander?

Built-in Wi-Fi streams the live thermal picture to the rear command terminal. Optional 4G and GPS support broader incident command configurations.

How do I order, and is OEM cooperation available?

Contact LSJ Technology for factory-direct pricing, configuration options, lead times, OEM and private-label terms.

Supplier Support

Support from Selection to Service

Technical Selection

Discuss use cases, operating conditions, and specification requirements with the supplier's technical team.

Gas Detection and Demonstration Support

Request product-specific reports, compliance information, and demonstration options for procurement review.

Reports, Software and Service

Confirm warranty, replacement parts, calibration, and repair arrangements for your delivery market.
