So when your phone, TV or anything else breaks down you would want to know just what the problem is so that it can be fixed. At times, the outside of your device may not show anything wrong. This is where the thermal cameras add help out!

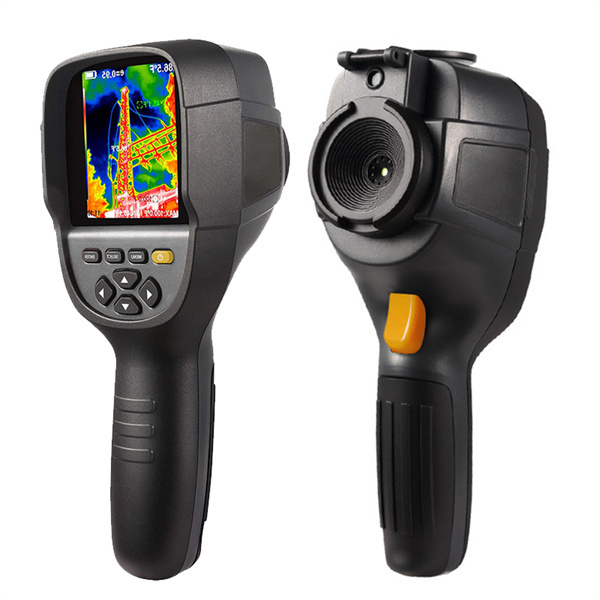

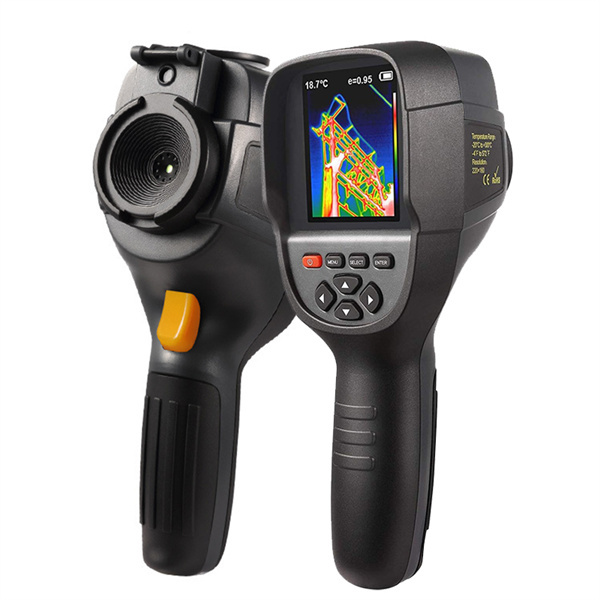

The thermal camera is a specialized device that can identify the heat. I mean, this is then able to indicate you whether specific stuff may get hotter or colder. Great for when you need to figure out what is wrong with something. Take the circuit board inside many electronic devices, for example. Circuits – The boards are full of circuits. A thermal cam can help you troubleshoot or track down a broken component in one of these circuits. View the entire circuit board using your thermal camera and see if there are any components that exceed a safe temperature. However, if we do come across a hot spot that may indicate problem area which should be improved.
You would think that you need to be a professional or have all of the fancy gear in order for thermal camera use, but guess what? If you even want, it is also possible to create a home-made thermal camera with your smartphone. It requires nothing more than a unique thermal camera that attaches to your phone. If you have this camera, you will be able to point it at the circuit board to see where any hot zones are. If you do not have a thermal camera, there is also a very simple way to investigate heat. So rub the back of your hand over it to see where board is warm. This will assist you in identifying the areas losing heat or keeping it locked, which can indicate an issue that requires a solution.
Use a thermal camera for lots of functions, but most importantly as it is safety. The method you mention is much less safe than a thermal camera. If you attempt to find a problem by touching various parts of the circuit with your fingers, or using tools etc., this could lead to accidentally touching an high voltage part and get zapped. This can be very dangerous! However, a thermal camera allows you to see every single component on the board without having to touch anything. This makes it a safer option. In addition, a thermal camera is generally the method considered to be more accurate compared with others because it can detect issues that you are not able to see by naked eyes.

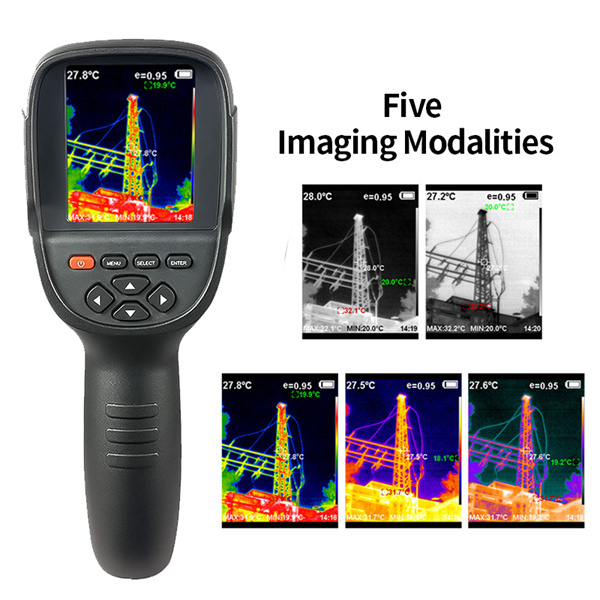

Thermal cameras detect the emitted heat of objects. Even electronic devices always emit a certain amount of heat. This gives you the heat signature, and it comes from a thermal camera that shows where this heat is radiating off of. When you glance to the screen of thermal camera, you can view color contrasts showing different temperatures. A circuit is getting to hot and if you do not have too much electricity being drawn from a particular phase there is likely a problem. They can also be used to find things like loose connections or cold solder joints (connections that aren't working correctly). Thermal cameras show you all these things that are not necessarily visible by the naked eye!
A thermal camera helps you in reducing the time as a beginner to fix your electronics. Now, instead of spending hours problem shooting by guess and check changing parts (on the off chance you have them available) — all we need to do is scan over our circuit board with a thermal camera! If you know where the problem came from, therefore, can work more on reducing it dose. This not only speeds up repairs, but also prevents you from replacing parts that do not need to be replaced and can end up saving money between repairs.
