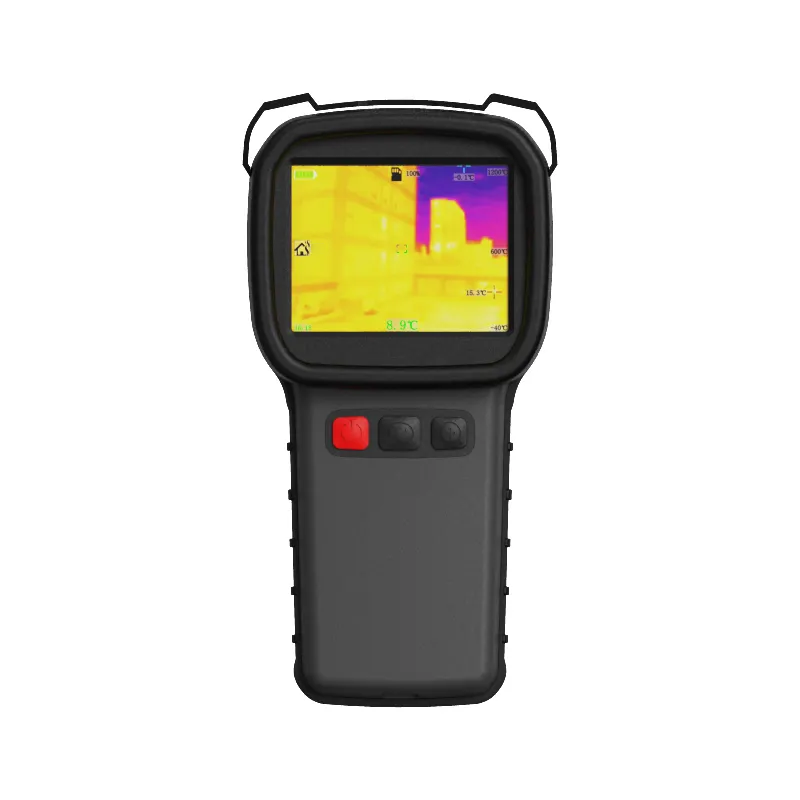

S1200 Firefighting Thermal Imaging Camera 384×288 60Hz

Core Capabilities

Compact Capability for Fireground Work

Thermal imaging tools designed to help incident teams assess visibility-limited environments and support search, inspection, and command decisions.

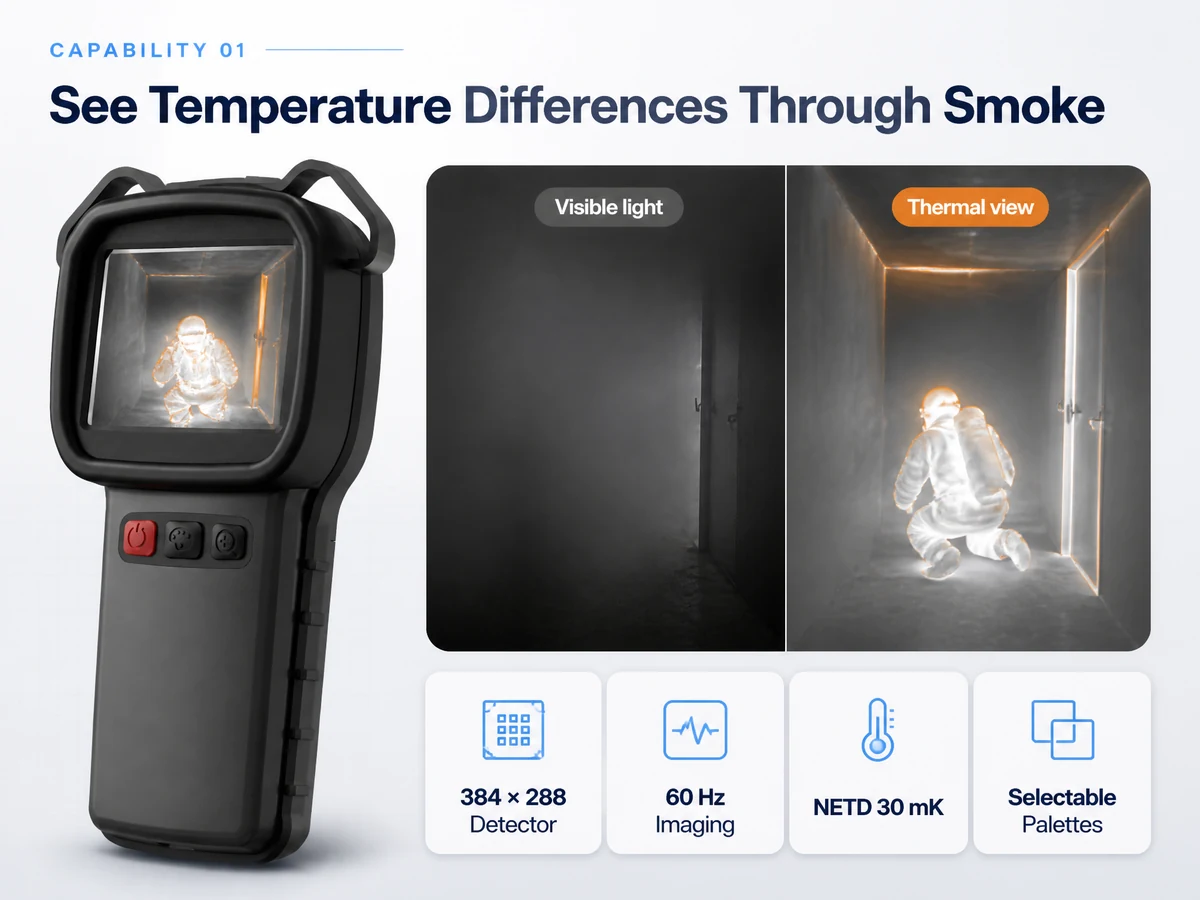

LSJ-S1200 compact thermal camera comparing visible-light and thermal views in a smoke-filled corridor

CAPABILITY 01

See Temperature Differences Through Smoke

The stated 384 × 288 detector, 60 Hz imaging and 30 mK NETD support recognition of subtle temperature differences.

Helps identify heat signatures and structural features where visible-light cameras are limited by smoke
60 Hz refresh rate supports smoother scanning while moving
Selectable palettes help crews distinguish temperature differences

CAPABILITY 02

Follow Heat Changes in Real Time

The stated -40°C to 1,200°C measurement range uses automatic range switching to support both lower-temperature search tasks and assessment of high-heat areas.

Lower range (-20°C to 150°C) for personnel search and residual hot-spot checks
Upper range (0°C to 1,200°C) for high-temperature scene assessment

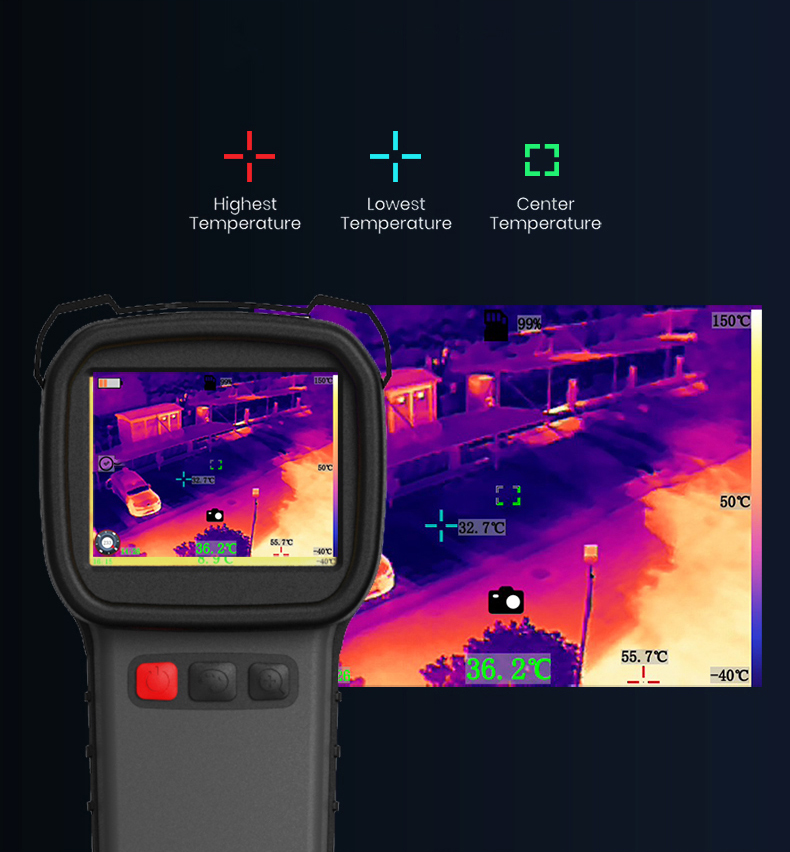

Center-point and maximum-temperature tracking with configurable alerts

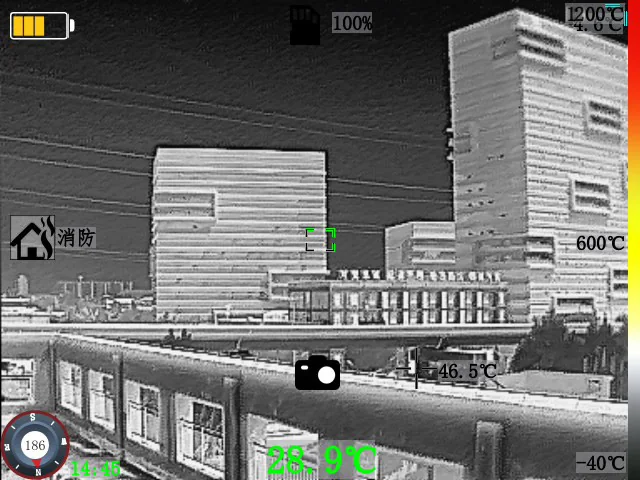

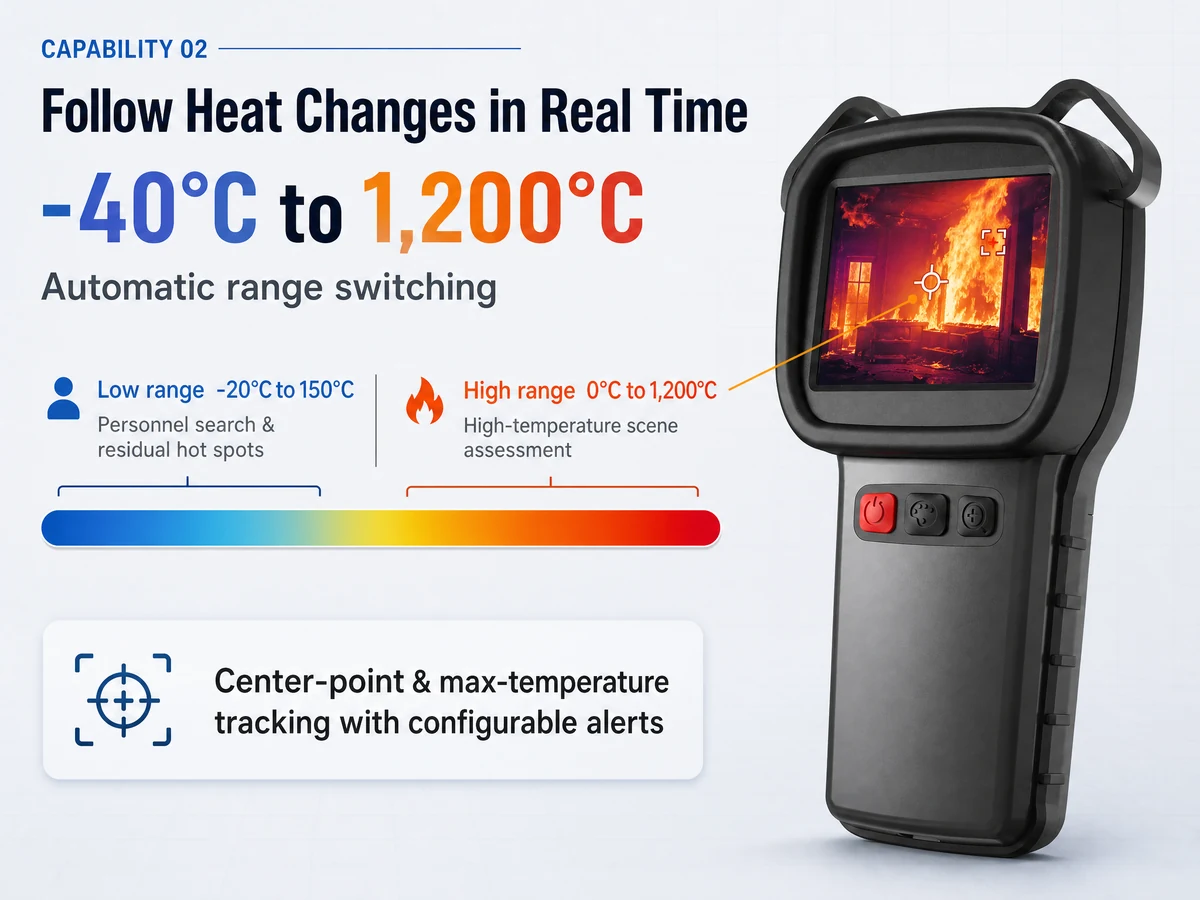

LSJ-S1200 thermal camera with -40°C to 1,200°C measurement range and automatic range switching

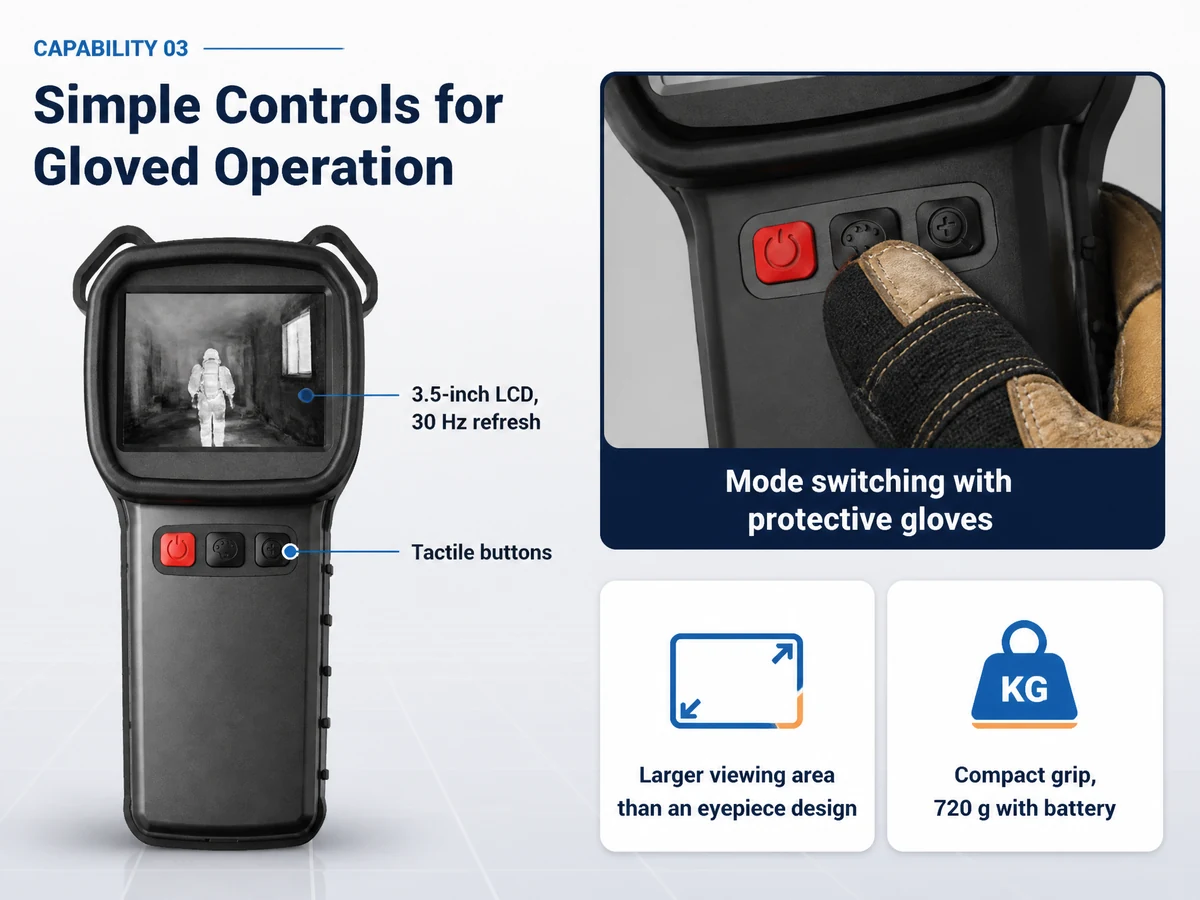

Display and gloved operation in field conditions

CAPABILITY 03

Simple Controls for Gloved Operation

A 3.5-inch LCD with 30 Hz screen refresh provides a larger viewing area than an eyepiece-based design. Physical controls support operation with protective gloves.

Large display for scanning and sharing observations on scene
Tactile buttons for switching modes while wearing gloves
Ergonomic grip; stated weight approximately 890 g including battery

CAPABILITY 04

Built for Wet, Dusty and Demanding Work

The stated IP67 enclosure rating and 2 m drop design address the handling demands of fire and rescue operations. Request test documentation for procurement review.

Sealed housing rated IP67 for dust and water ingress protection
Shock-absorbing construction designed for a 2 m drop
Stated operating temperature: -20°C to +60°C; confirm exposure limits for specific applications

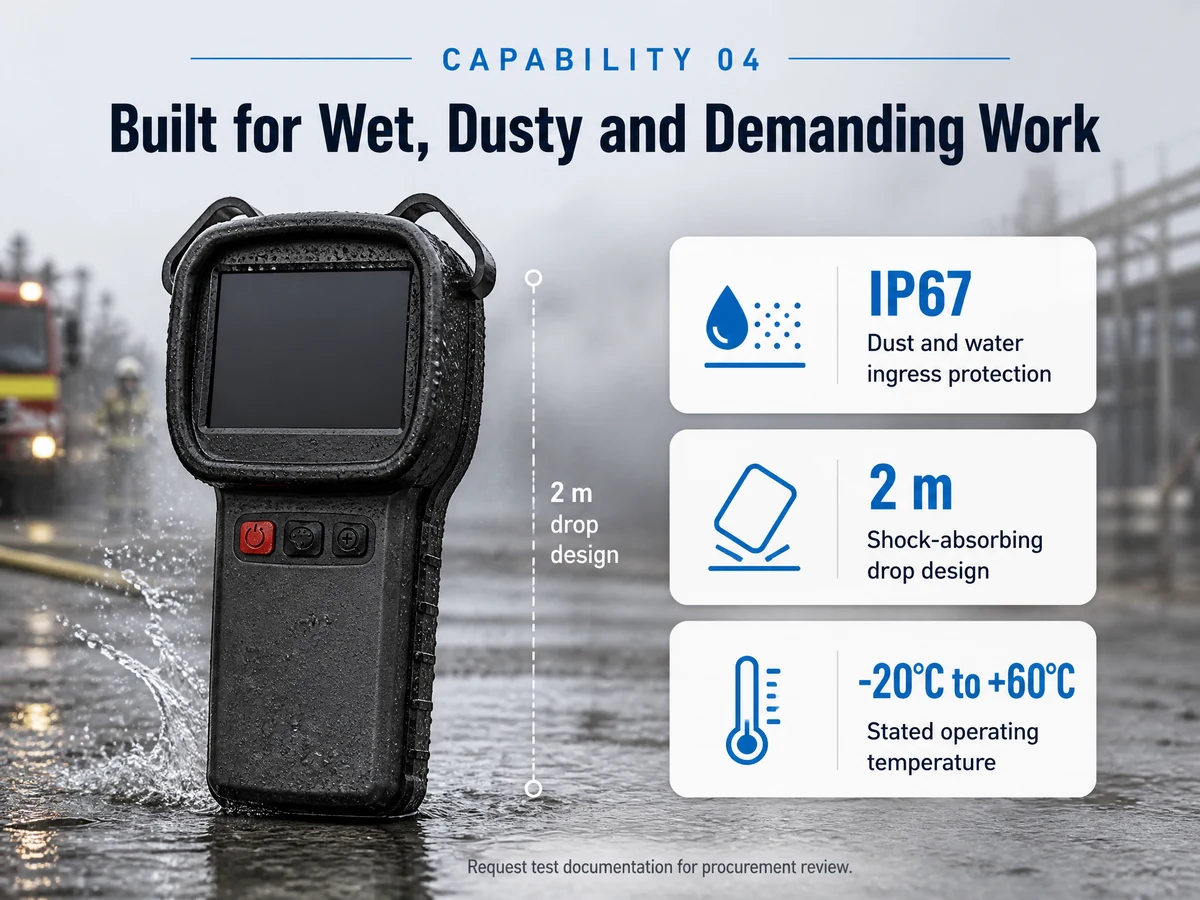

LSJ-S1200 thermal camera on wet ground illustrating IP67 rating and 2 m drop design

CAPABILITY 05

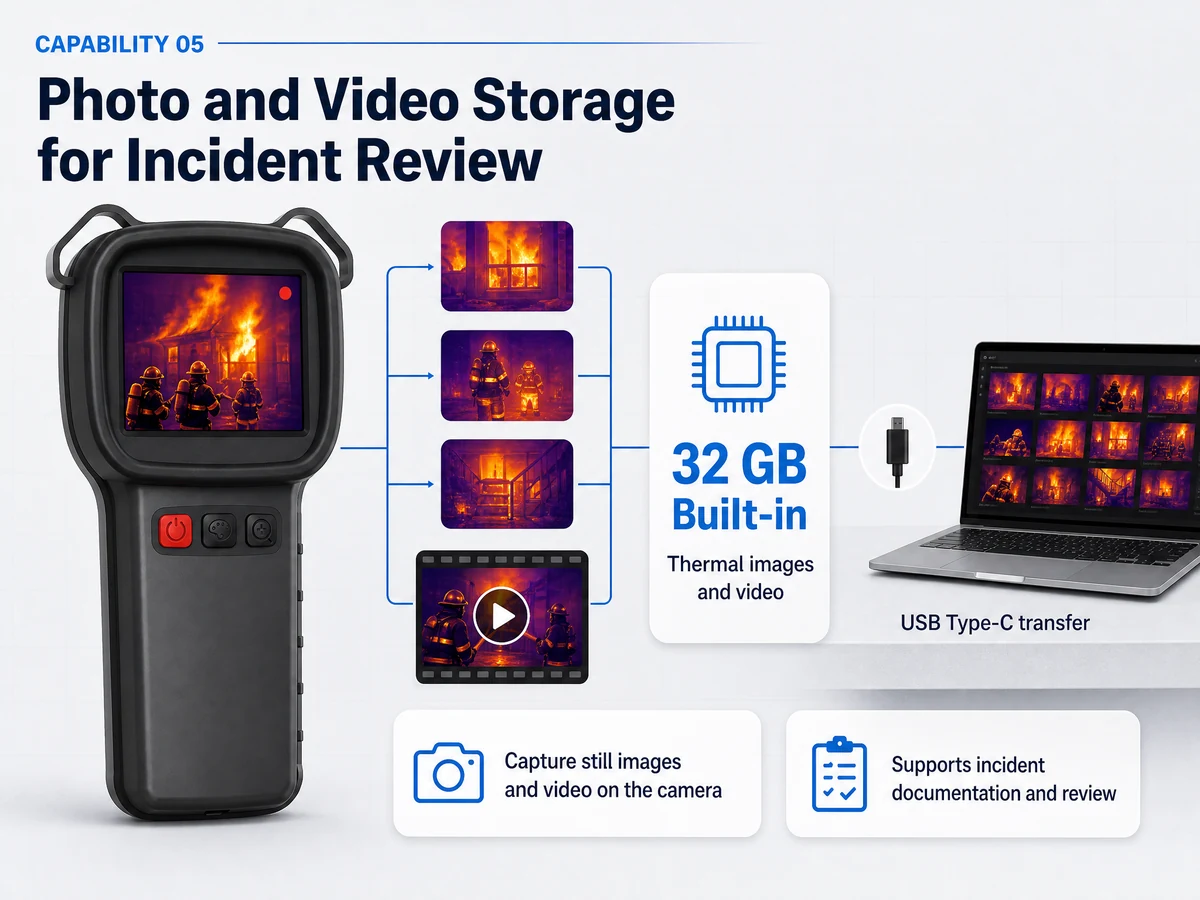

Photo and Video Storage for Incident Review

The stated 32 GB built-in storage storage supports thermal-image capture and video recording for incident documentation and post-operation review.

Capture still images and video directly from the camera
USB Type-C connection for transferring recorded material
Ask the supplier about metadata formats and compatible external display options

CAPABILITY 06

More Than 5 Hours per Battery

The proposed kit includes two rechargeable batteries and a carrying case to support deployment, charging, and equipment handling across shifts.

Stated run time of at least 6 hours per fully charged battery
Dual-slot charging dock; confirm vehicle-power accessories when ordering
Protective carrying case for storage and transport

Evaluate the S1200 for your fire and rescue program.

Send your target application, required options, quantity and delivery country for a technical review.

Applications

Thermal Imaging Across Fire and Emergency Response

Applicable to municipal fire services, industrial emergency teams, hazardous-materials sites, and wildfire response units, subject to operational requirements.

Structural Firefighting and Search

Use thermal contrast to assist with locating people, assessing access routes, and identifying heat patterns in smoke-filled structures. Always apply established entry and rescue procedures.

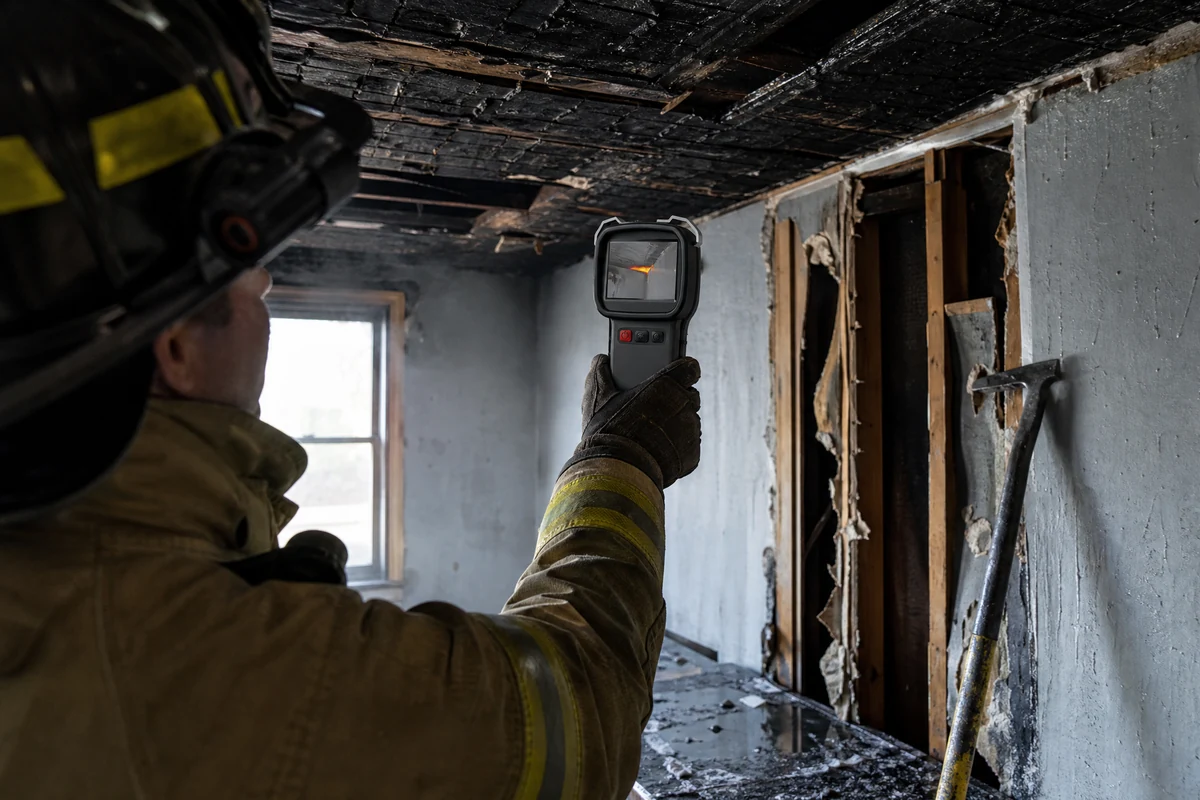

Overhaul and residual hot-spot inspection

Overhaul and Residual Hot-Spot Checks

After suppression, scan ceilings, partitions, voids, and stored materials for thermal anomalies that may warrant closer inspection and follow-up.

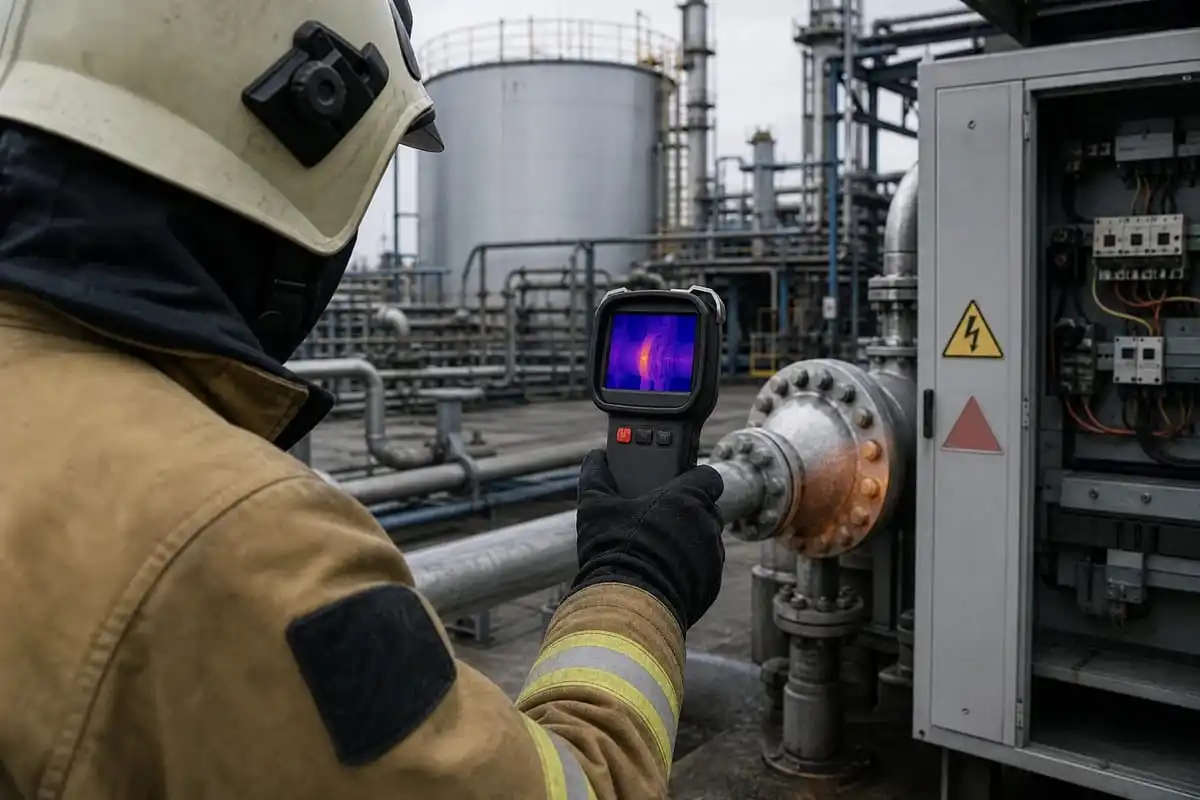

Industrial site inspection and emergency response

Industrial and Hazardous-Site Response

Assess surface temperature patterns on tanks, process equipment, and electrical enclosures. Thermal imaging is an inspection aid, not a stand-alone gas-leak detector.

Operational Scenario

Warehouse Fire: An Illustrative Deployment

The scenario below illustrates how a thermal camera may support an incident team. It is not a documented customer case study.

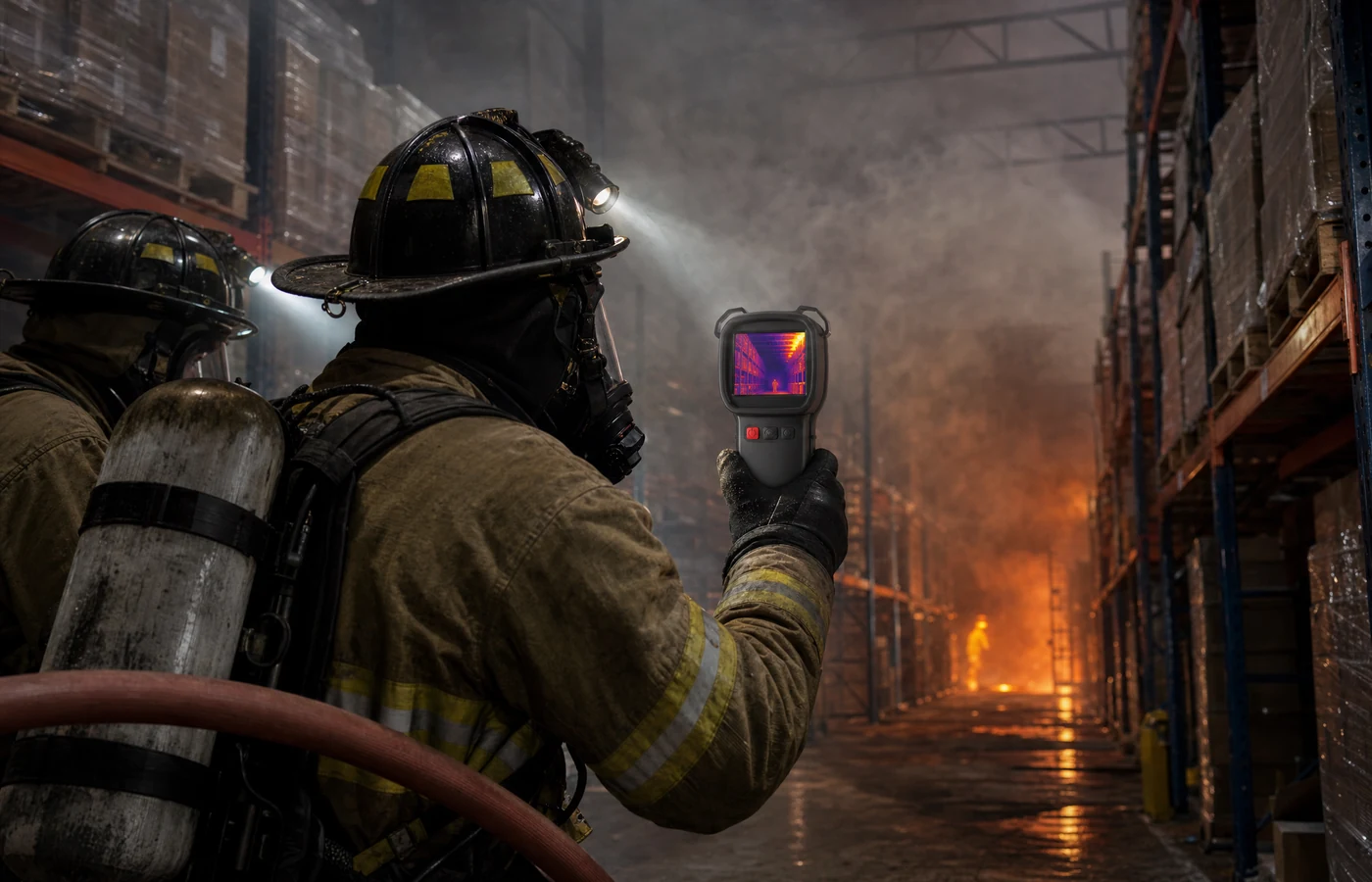

Illustrative warehouse fire response scenario

Example: Interior Assessment at a Logistics Warehouse

Situation

A warehouse fire creates dense smoke and limits visual assessment of storage aisles and overhead structures.

Potential use

A team could use the LSJ-S1200 to compare thermal patterns along access routes, check for potential occupants, and identify elevated temperatures for further assessment. Thermal images cannot see through solid walls and must be interpreted alongside other scene information.

Decision support

Findings may inform search priorities and structural risk discussions under the incident commander's procedures. Outcomes depend on conditions, training, and additional equipment.

Why Work With LSJ

Manufacturing Capability
Built Around Procurement Needs

Explore the production facilities, compliance documents, and international exhibitions presented in the materials below. Confirm product-specific certifications and production capacity with the supplier before placing an order.

700-1,000units/day Capacity stated in
supplied factory image

4document types CE · ISO · MSDS · RoHS
shown in supplied image

GLOBAL International trade-show
engagement

Supplied collage of LSJ manufacturing, assembly, and testing areas

01 · PRODUCTION

Assembly and Testing Capability

The supplied factory imagery shows assembly and testing activities and states a capacity of 700-1,000 units per day. Confirm the applicable product line, current capacity, and lead time when requesting a quote.

Supplied collage of CE, ISO, MSDS, and RoHS-related documents

02 · CERTIFIED

Documentation for Due Diligence

Request current, product-specific documents and verify their scope before use in a tender or import review.

CEISOMSDSRoHS

LSJ team and visitors at international trade exhibitions

03 · GLOBAL

Product Discussions at Global Events

Explore images of industry exhibitions and in-person discussions with international partners and emergency-response professionals.

Click an image for a larger view · Request a facility visit or document verification

Request an Operating Demonstration

Ask about gloved operation, imaging modes, and temperature measurement

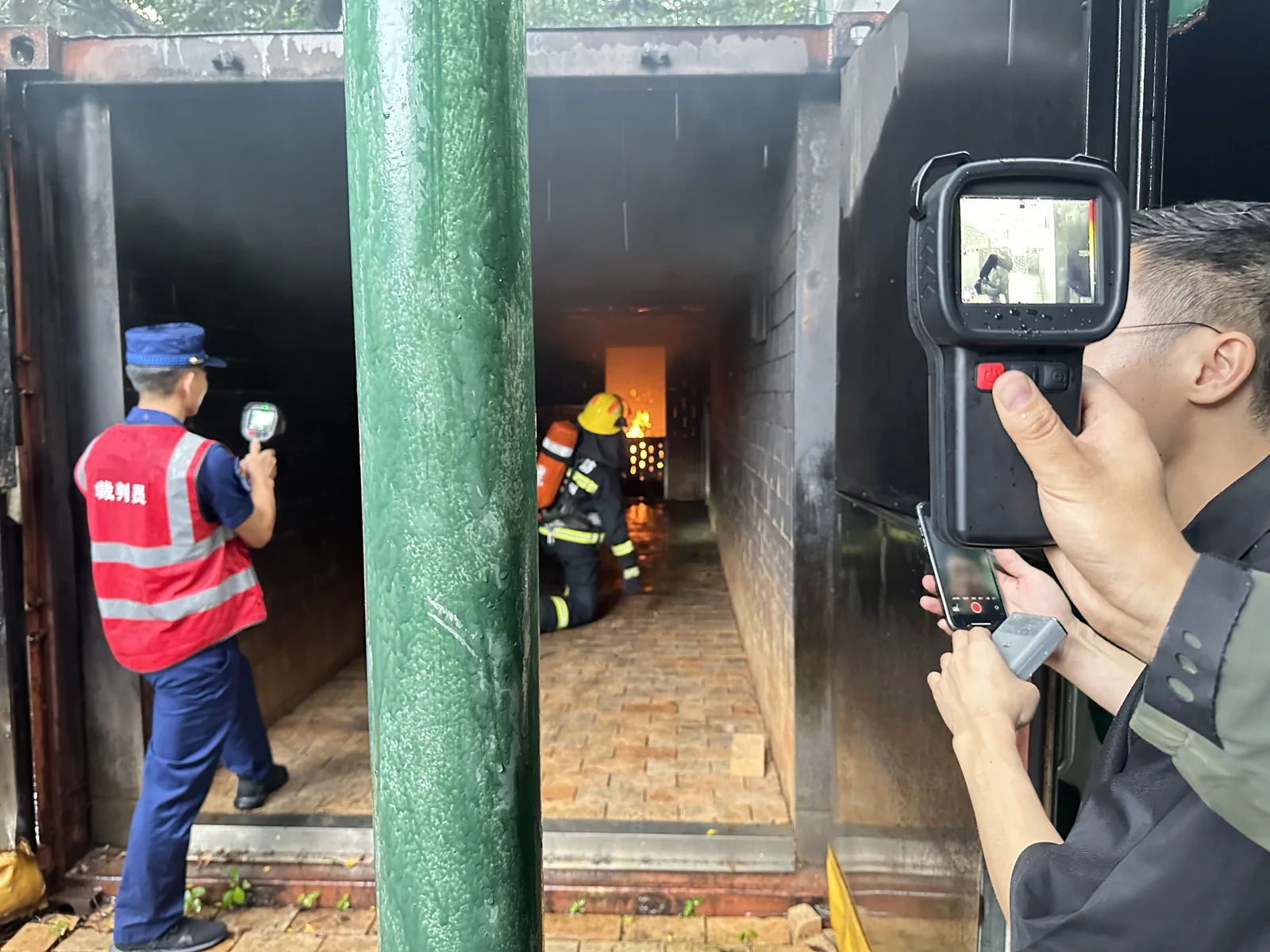

Operation Video

See the LSJ-S1200 in Operation

Watch the S1200 demonstration to understand its gloved controls, application modes, display workflow and temperature measurement functions.

Designed for one-handed operation with protective gloves

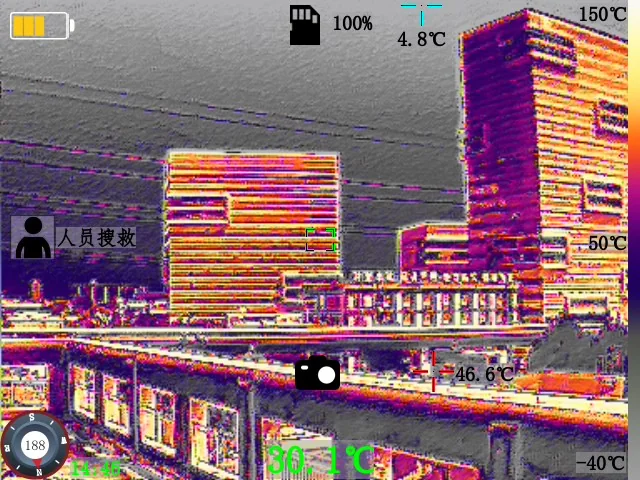

Switch between firefighting, search and rescue, and temperature modes
Review temperature readings and thermal contrast during fireground work

Technical Specifications

LSJ-S1200 Specification Sheet

Specifications below reflect the source material for this page and should be confirmed against the latest manufacturer datasheet and applicable test reports before procurement.

Parameter	Stated Specification
Detector type	Uncooled amorphous silicon detector
Infrared resolution	384 × 288 pixels
Spectral range	7–14 μm
Detector refresh rate	60 Hz
Thermal sensitivity	30 mK (0.03°C) at 30°C ± 5°C
Field of view	47° × 36°
Display	3.5-inch LCD, 30 Hz screen refresh

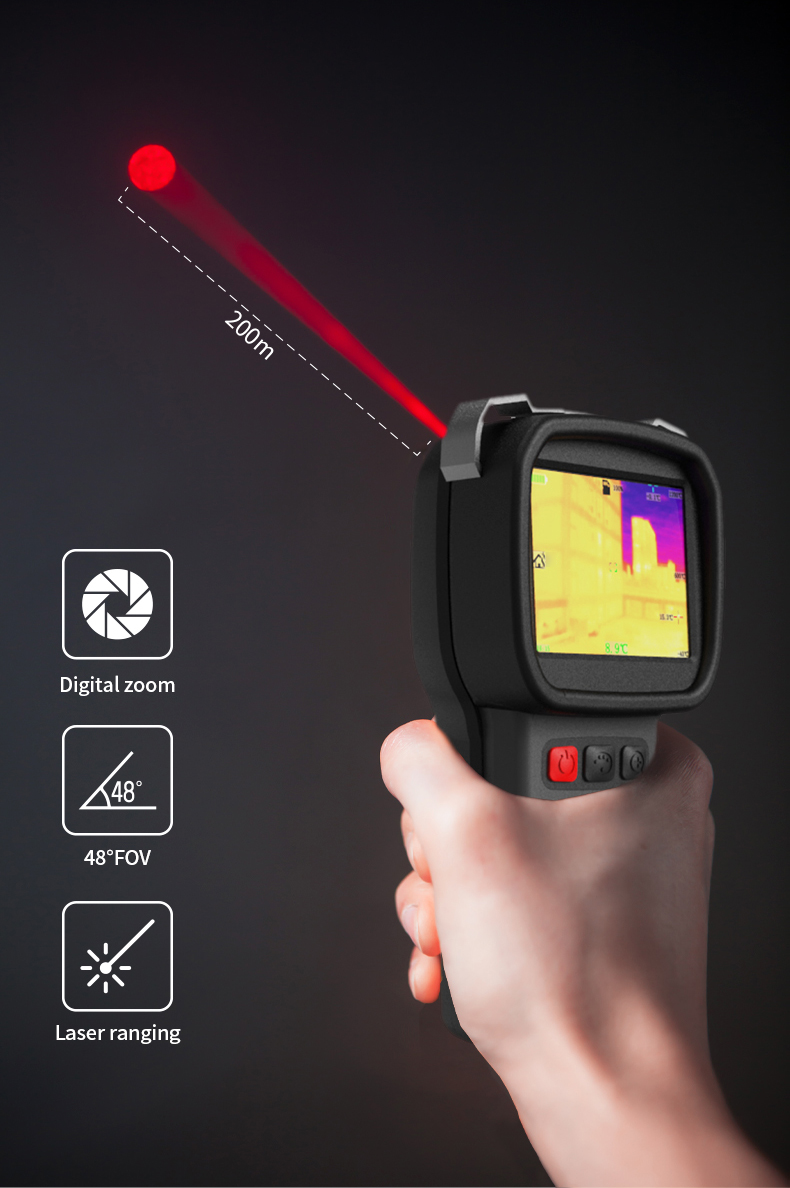

Digital zoom	1×, 2×, 4×
Measurement distance	Up to 80 m
Measurement range	−40°C to 1200°C; higher ranges available by customization
Accuracy	±2°C or ±2% of reading
On-screen measurements	Maximum, minimum and center-point temperature
High-temperature endurance	30 min at 80°C; 10 min at 120°C; 5 min at 260°C
Photo and video	Built-in 32 GB; expandable; local deletion supported
Ingress and drop protection	IP67; 2 m free-fall drop test
Weight with battery	720 g
Dimensions	196 × 104 × 69 mm
Operating time	More than 5 hours per battery
Standard package	Camera, two rechargeable batteries, charger and carrying case

Frequently Asked Questions

Procurement and Deployment

Answers to common questions from fire-service procurement teams and end users. Confirm all commercial and technical terms with the supplier.

Can the S1200 see through smoke and work in darkness?

The proposed firefighting configuration emphasizes gloved controls, IP67-rated enclosure protection, a stated 2 m drop design, and temperature measurement up to 1,200°C. Review the applicable test reports and compare each specification with your tender requirements before selection.

How does cold weather affect battery runtime?

Battery performance varies with temperature, operating mode, and battery condition. The stated nominal runtime is at least more than 5 hours per battery; request a cold-temperature runtime test for deployment at -20°C rather than applying the nominal figure to all conditions.

Does the S1200 record photos and video?

Yes. The product sheet lists 32 GB of built-in storage, local file deletion and nominal capacity for approximately 5,000 photos or 15 hours of video.

Can we arrange a demonstration or request tender documents?

Contact the supplier with your organization, intended use, quantities, and delivery market. Ask about demonstration availability, a compliance matrix, test reports, and manufacturer authorization where required; availability and terms must be confirmed in writing.

What warranty and calibration support is available?

Request written warranty coverage, service turnaround, spare-parts availability, and recommended calibration intervals in the quotation. Inspection and recalibration may be advisable after severe heat exposure or impact; service terms depend on the purchase agreement.

Supplier Support

Support from Selection to Service

Technical Selection

Discuss use cases, operating conditions, and specification requirements with the supplier's technical team.

Tender and Demonstration Support

Request product-specific reports, compliance information, and demonstration options for procurement review.

Service and Spares

Confirm warranty, replacement parts, calibration, and repair arrangements for your delivery market.

All Categories

ALL PRODUCTS

Firefighting Thermal Camera

Urban Search and Rescue

Safety and monitoring equipment

CBRNE Detector

Thermal Camera

Thermal Scope

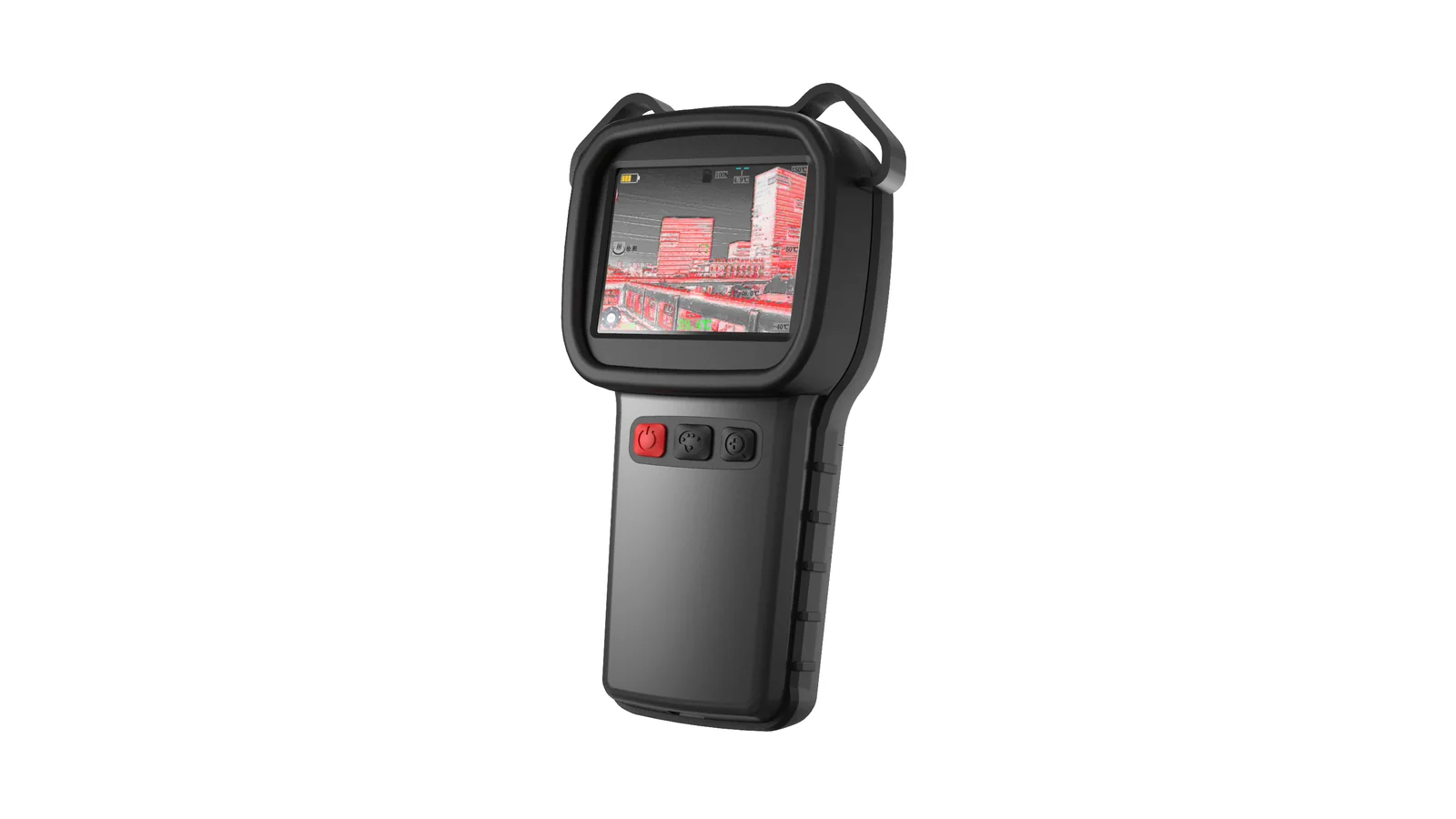

Firefighting Thermal Imaging Camera LSJ-S1200
