CAMB-V500 Box-Type Audio/Video Life Detector

Core Capabilities

See, Hear and Talk to Survivors Inside the Void

An all-in-one water-and-land audio/video life detector: a motorized 1080P probe, microphone, headphones and two-way intercom carried in one sealed IP67 case, fed through gaps, boreholes, wells and flooded voids.

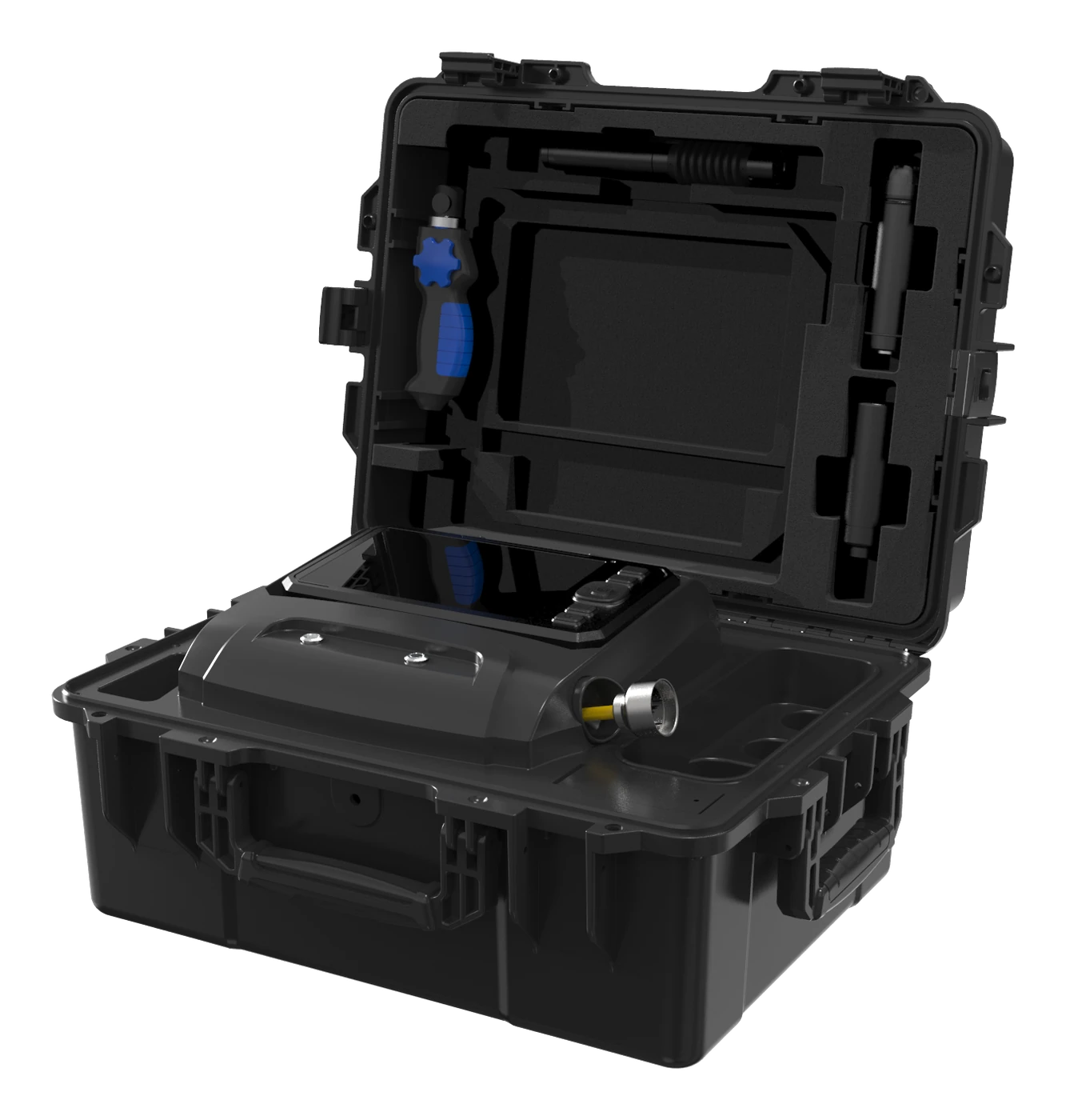

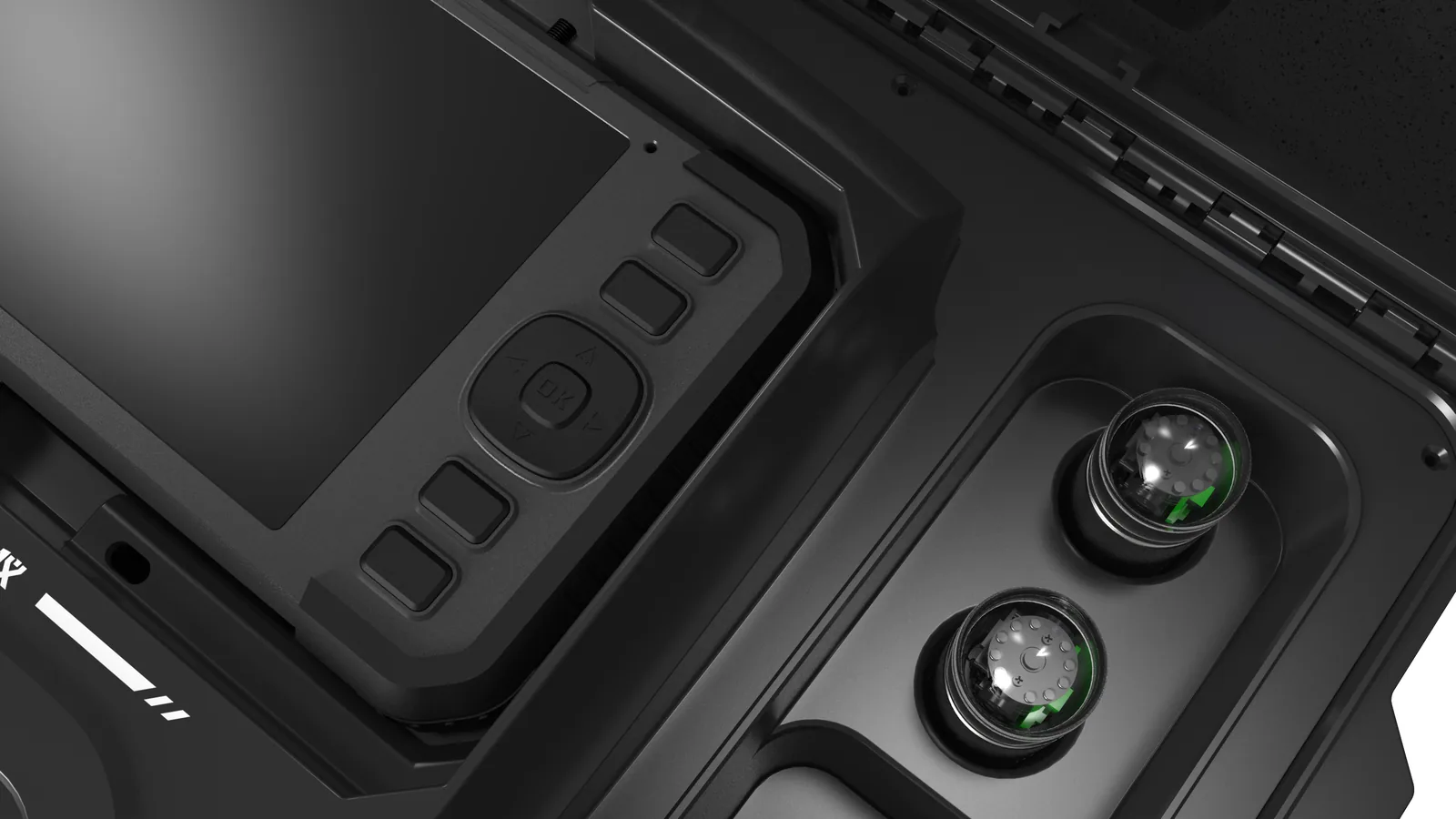

Top view inside the open LSJ CAMB-V500 case: the terminal with glove-friendly keys beside two sealed rotating probe heads in their foam cut-outs

CAPABILITY 01

One Sealed Case, Zero Setup Chaos

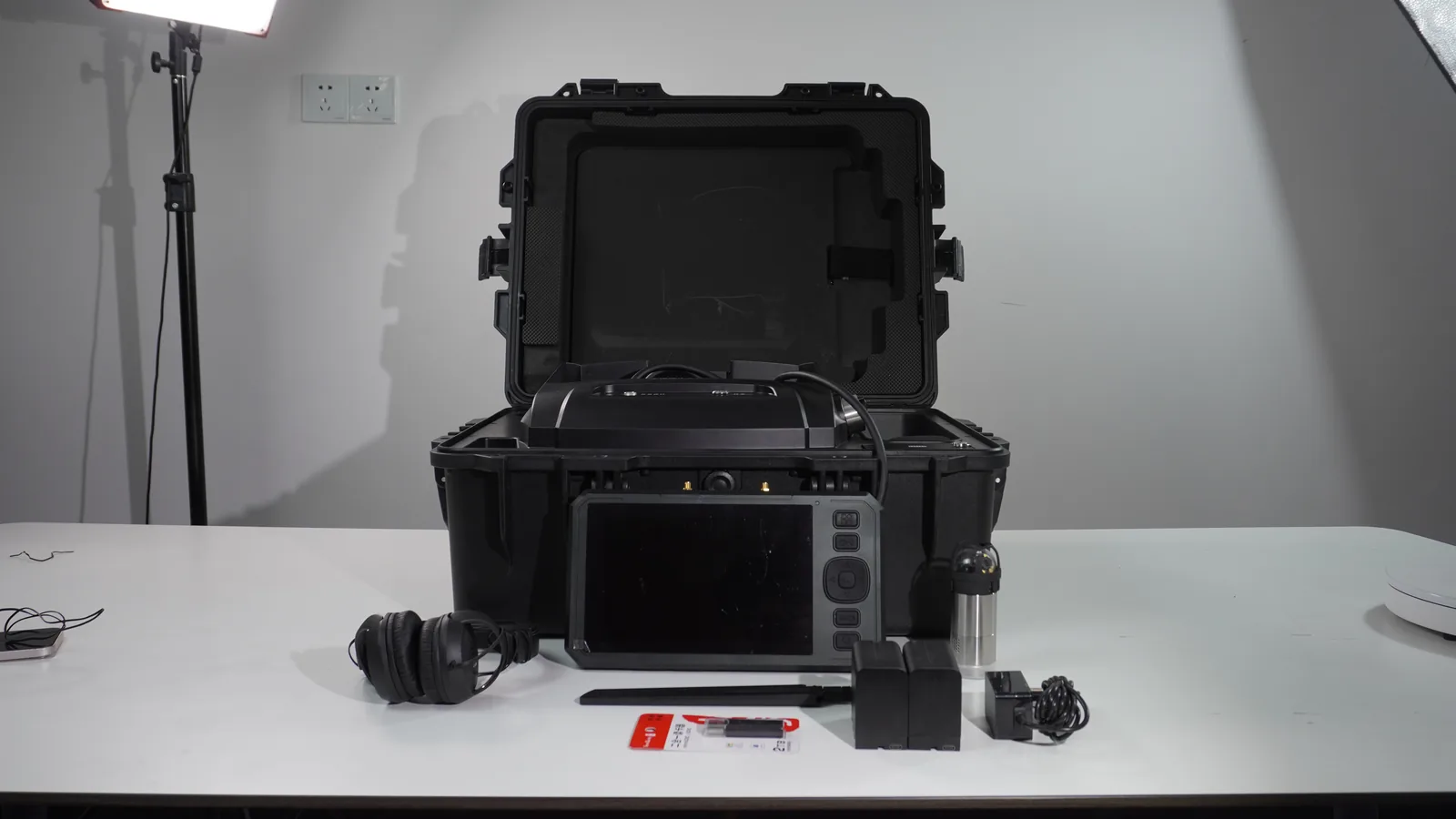

Display terminal, rotating probes, snake-eye probe, headphones and batteries all sit in custom-cut foam. Open the lid, power on and the system is ready to search — no loose cable, no separate monitor, no assembly at the rubble line.

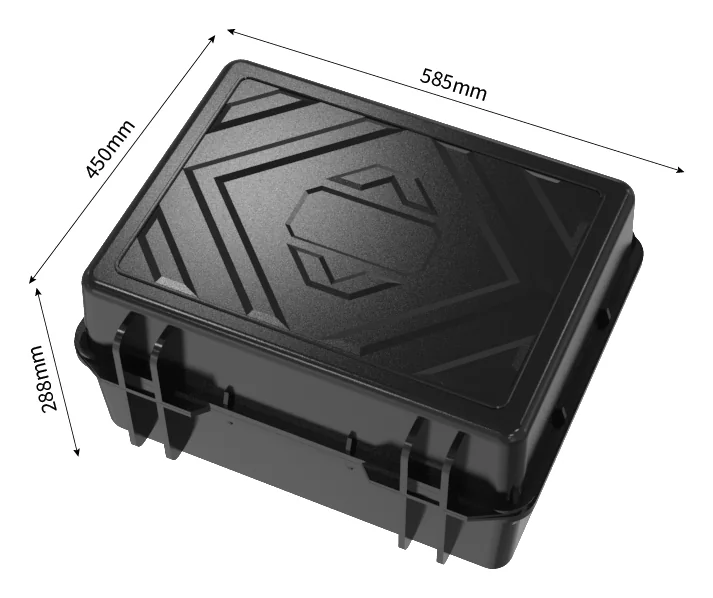

Single IP67 carry case at 585 × 450 × 288 mm, sized for one-person transport
Every component stowed in a dedicated cut-out, so a missing probe is visible before deployment
Probe sets are configured to the mission rather than shipped as one fixed kit

CAPABILITY 02

Motorized 360° Pan and 180° Tilt, Aimed From the Terminal

The electric rotating probe carries a 1920 × 1080 camera with 10 built-in LED lights. It pans 360° horizontally and tilts 180° (±90°) vertically by motor, driven from the host keys — the operator steers the view without putting a hand into the hazard.

One-key control of pan and tilt from the terminal, with 2× / 4× digital zoom
LED illumination lights the void; an optional IR fill-light covers smoke and total darkness
Probe orientation is kept on screen, so the team knows which way the camera is looking

LSJ CAMB-V500 open IP67 carry case with the display terminal, probe connectors and custom-cut foam compartments

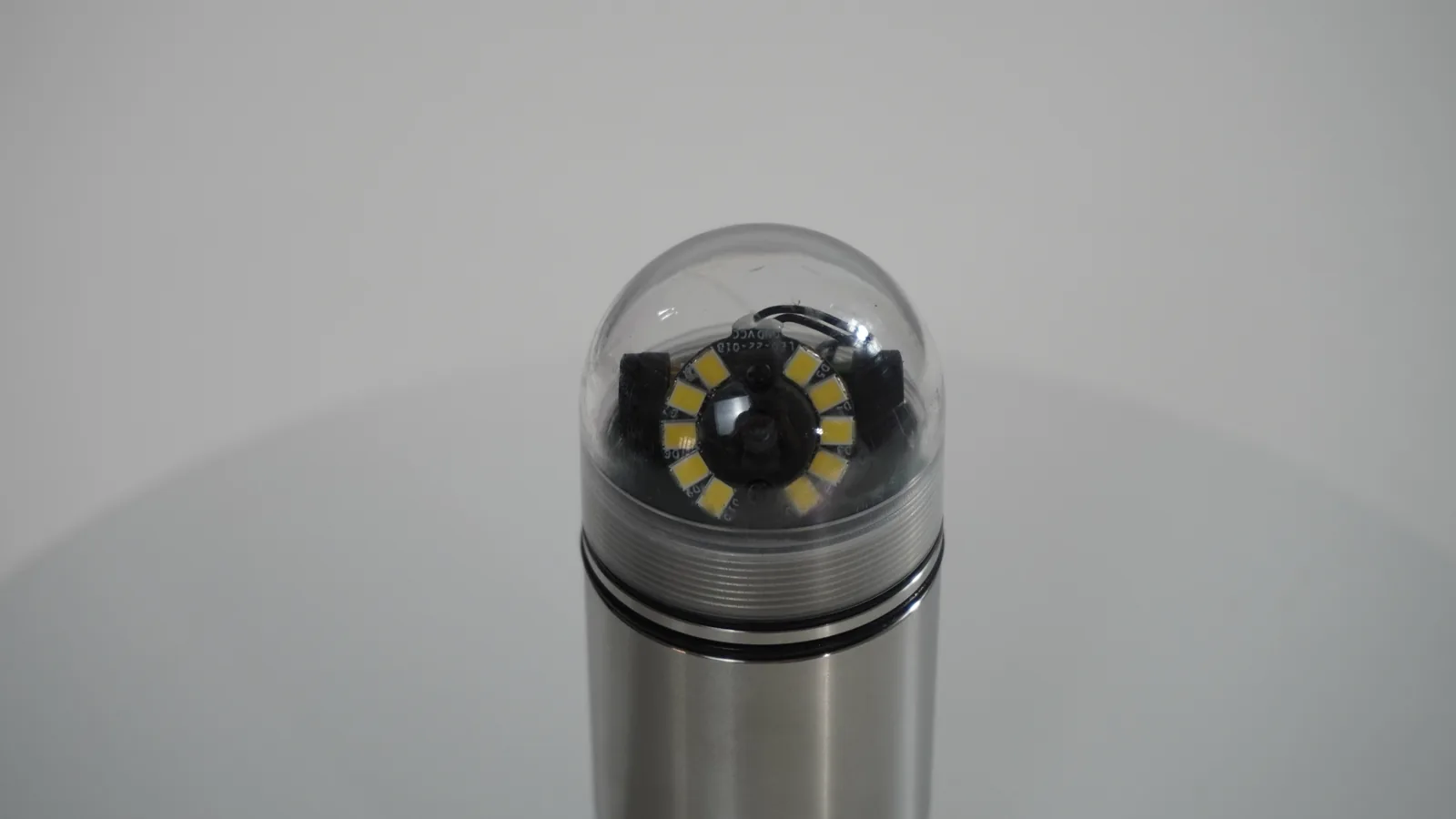

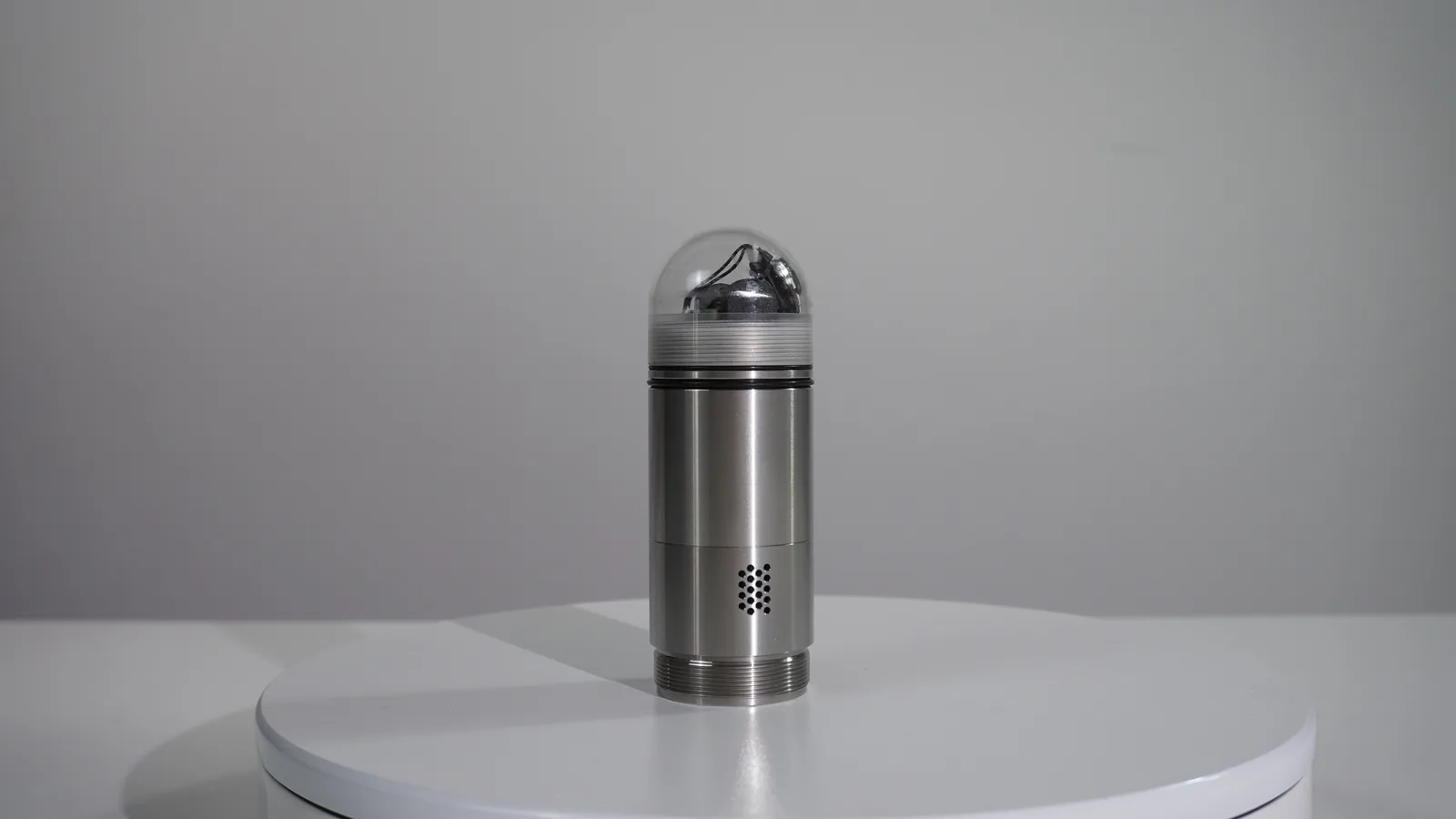

Sealed stainless-steel IP68 rotating waterproof probe of the LSJ CAMB-V500, rated for submersion to 20 m

CAPABILITY 03

IP68 Sealed Probe, Submersible to 20 m

A fully sealed stainless-steel probe at Φ40 mm, rated IP68 and submersible to 20 m, rotates a full 360° for flooded basements, wells, tanks, culverts and water-filled voids after floods or mine incidents.

Rated underwater depth 20 m — a submersion rating, not a diving instrument
Stainless body resists silt, mud and debris abrasion in flood search
Pairs with the waterproof detection cable for the same deep-reach missions

CAPABILITY 04

25 m Built-In Cable With Live Depth Readout

The 25 m (about 82 ft) rigid fiberglass detection cable is embedded on a retractable reel inside the case — never a loose external coil — and the terminal shows the deployed length in real time, so the team knows exactly how deep the probe has reached.

25 m of continuous reach for vertical shafts, deep tunnels and curved pipelines
Deployed length on screen removes guesswork when marking a search pattern
Minimum bend radius 35 cm — plan pipe entries and tight corners around that limit

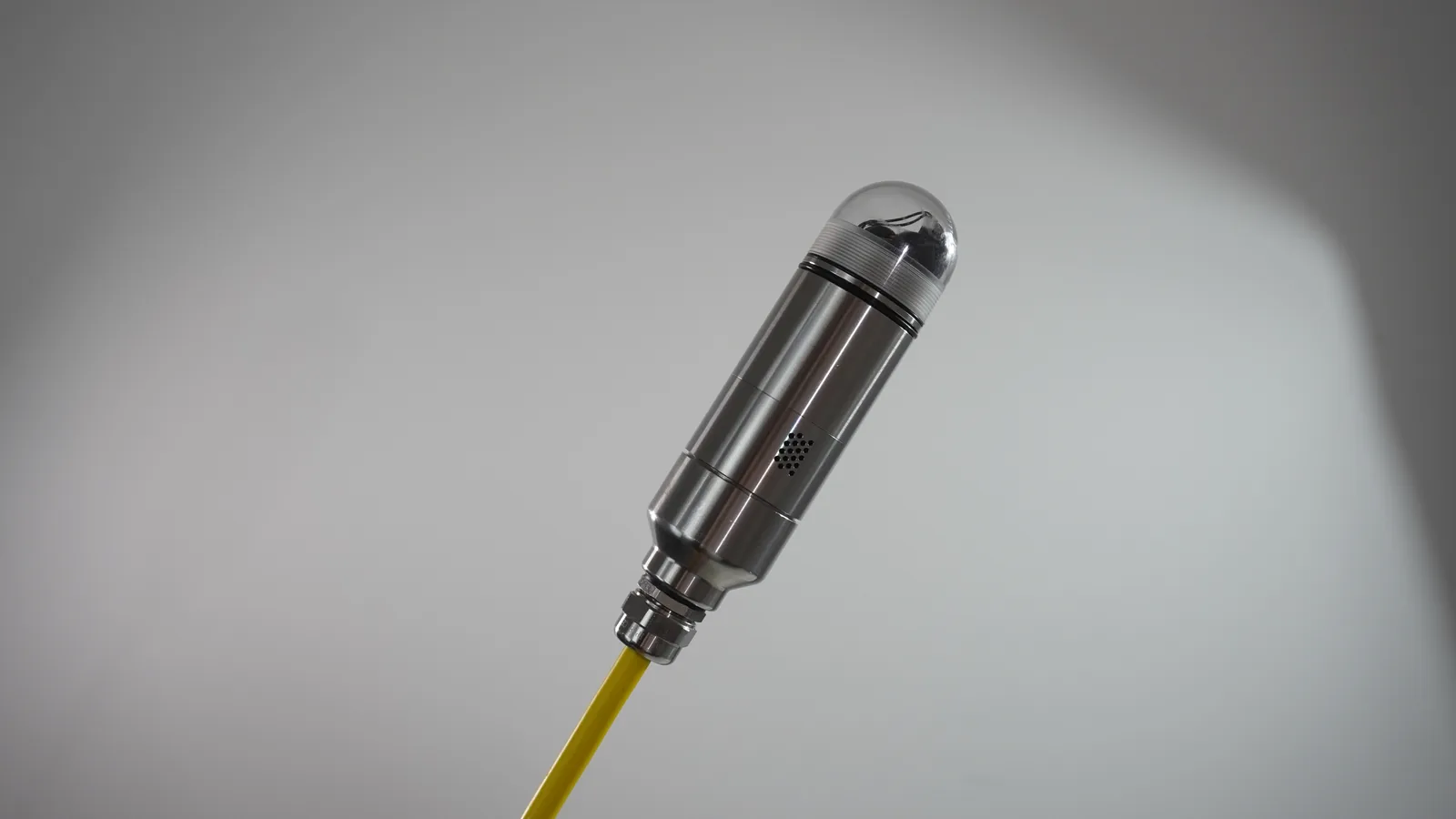

Rotating camera head of the LSJ CAMB-V500 on its yellow rigid detection cable, shown against a plain background

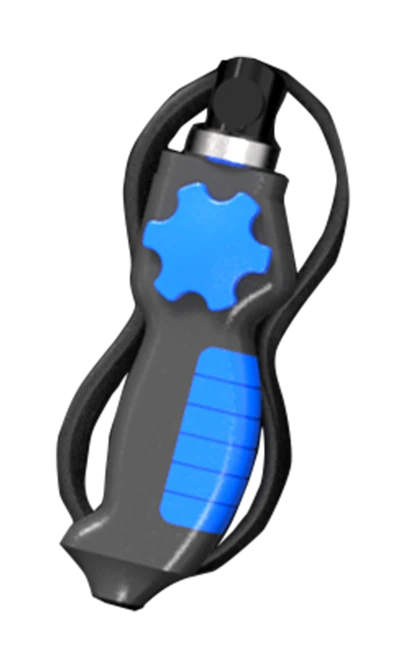

LSJ CAMB-V500 two-way snake-eye probe with an 8 mm titanium-coated lens on its tungsten-wire cable

CAPABILITY 05

8 mm Snake-Eye for 10 mm Gaps

A titanium-coated 8 mm stainless lens on a 3 m tungsten-wire cable, with 8 LED lights and two-way manual articulation, threads into 10 mm pipes, cracks and lightless cavities where the larger probes cannot go.

Enters voids narrower than a rotating probe can pass
Two-way manual articulation steers the lens around a bend in the cable path
Delivered as an optional probe, selected with the rest of the probe set at order time

CAPABILITY 06

8-Inch 1080P Terminal Built for Gloved Hands

A wired 8-inch 1920 × 1080 LCD with adjustable and automatic brightness, driven by dedicated physical keys: pan/tilt, 2×/4× zoom, photo, synchronized video with audio, playback, intercom, mode and brightness. One short press captures a still; one long press starts recording.

256 GB SD card for recorded evidence and after-action review
Full-duplex intercom key plus stereo noise-cancelling headphones for listening and talking

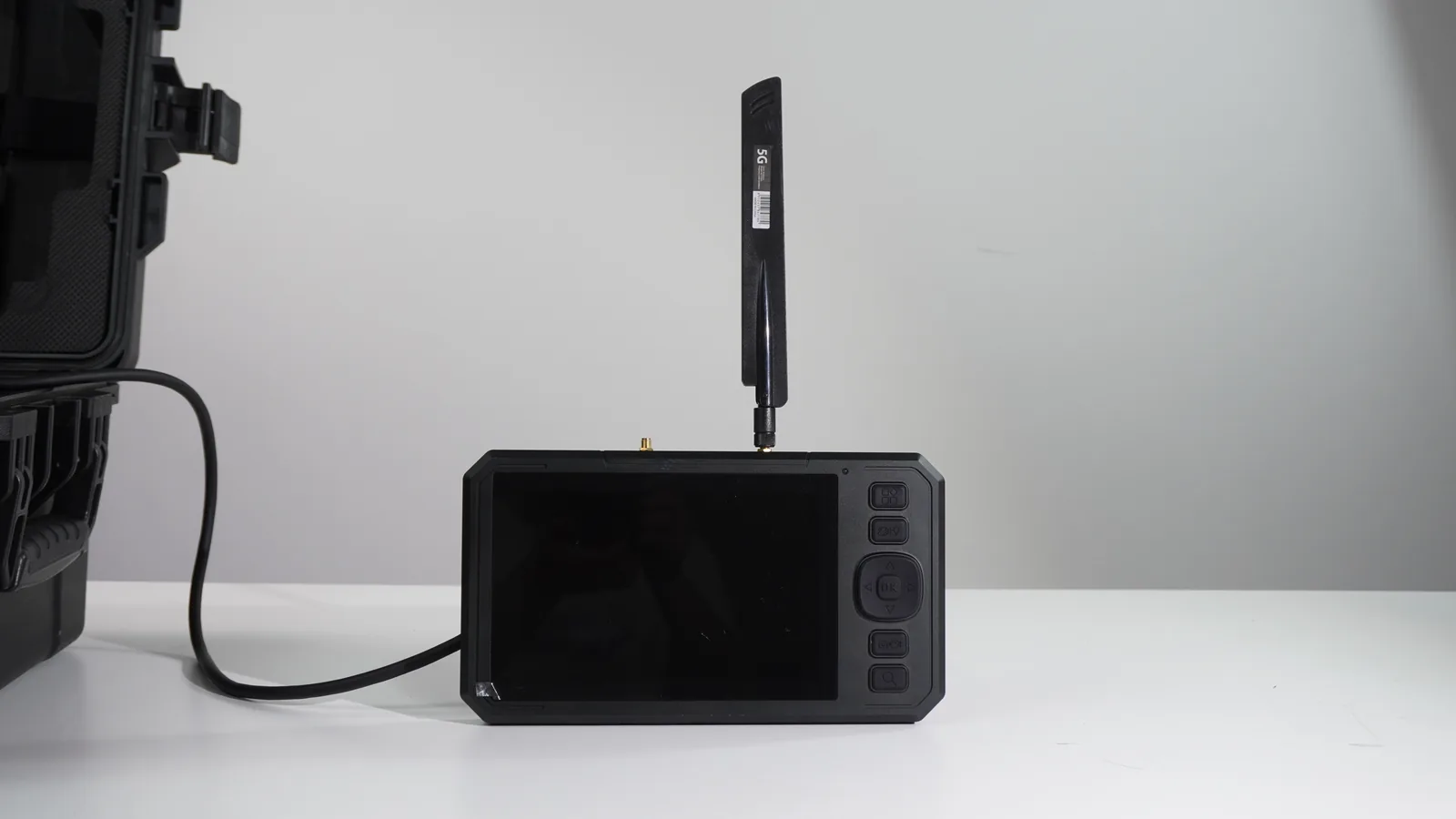

Optional 4G / Wi-Fi module and antenna stream live video and audio to the rear command post

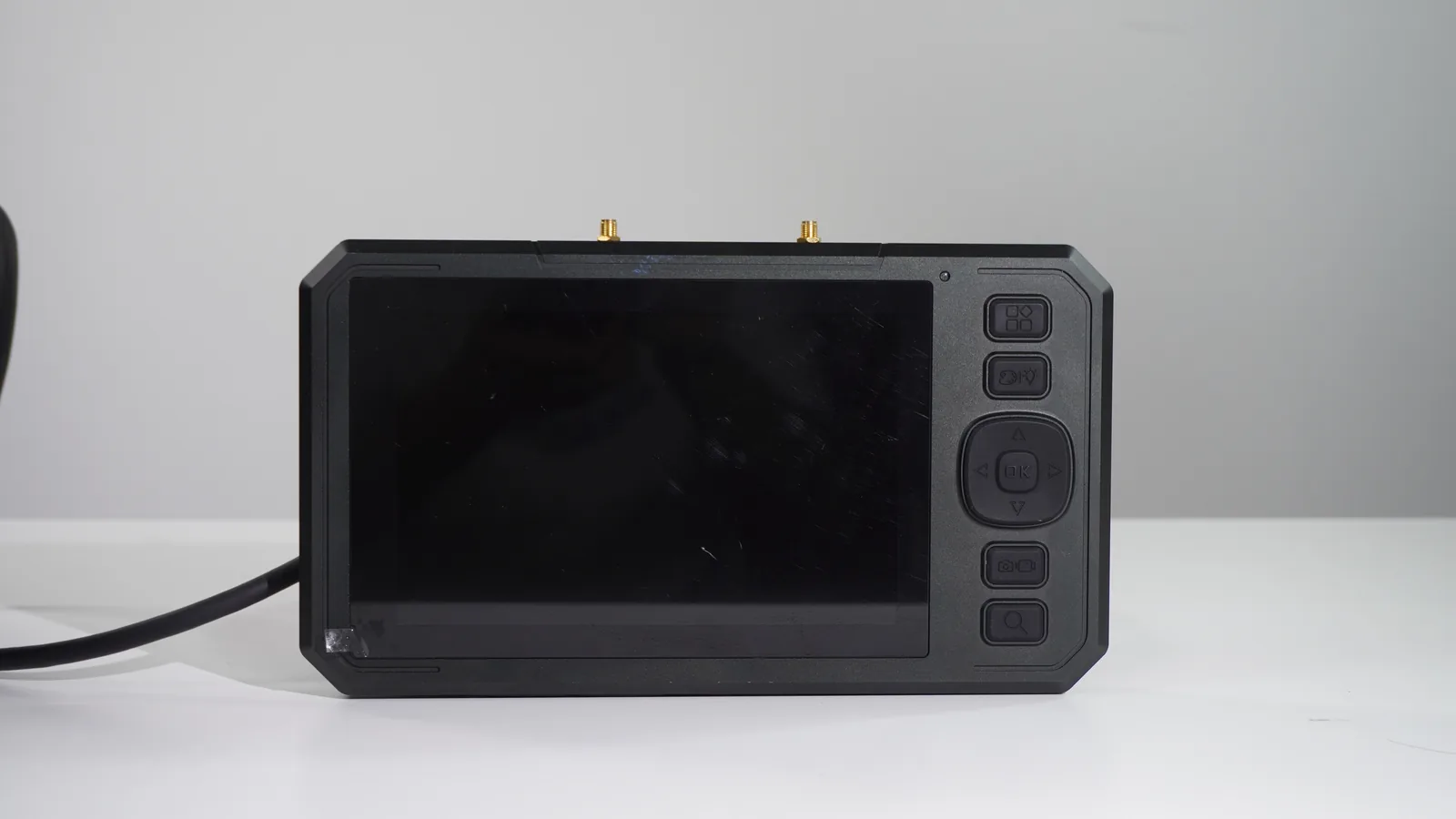

LSJ CAMB-V500 eight-inch 1080P wired display terminal with its column of physical control keys and two antenna ports

Configuring a search camera for a rescue unit?

Tell us the scenarios — collapse, deep well, confined space or water — and we will specify the probe set, thermal and wireless options, quantity pricing and lead time.

Applications

Where the CAMB-V500 Is Deployed

Urban search-and-rescue teams, fire services and mine rescue crews use the system to see, hear and talk to trapped people before a route is opened.

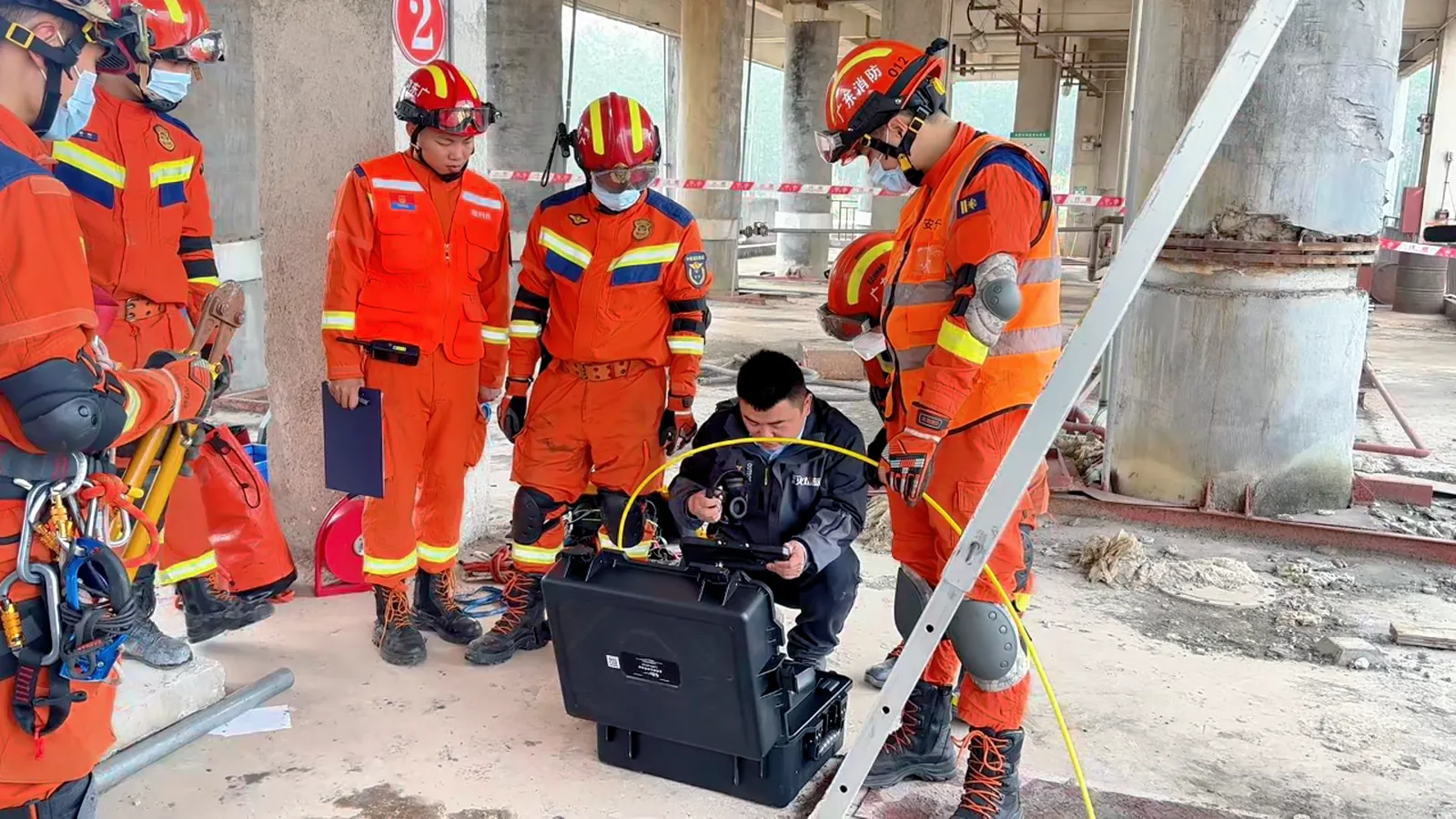

Firefighters gathered around the open LSJ CAMB-V500 case during an earthquake collapse rescue drill

Earthquake and Building Collapse

Probes are threaded through rubble gaps and drilled rescue channels to confirm survivors visually, talk to them, and record the route for the rescue channel. The camera is inserted through an existing void — it does not image through intact concrete.

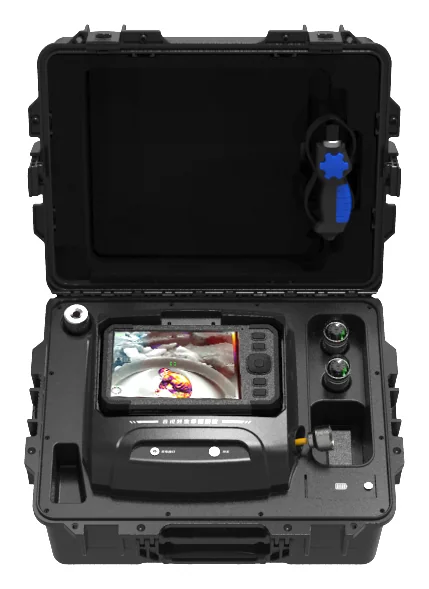

LSJ CAMB-V500 case with its display showing a live camera picture, used for dark and smoke-filled void search

Darkness, Smoke and Post-Fire Voids

LED illumination and an optional IR fill-light cover lightless cavities, while the optional thermal channel adds six imaging modes from −20 °C to 650 °C — useful for smoke-filled spaces and for post-fire hotspot checks after the search.

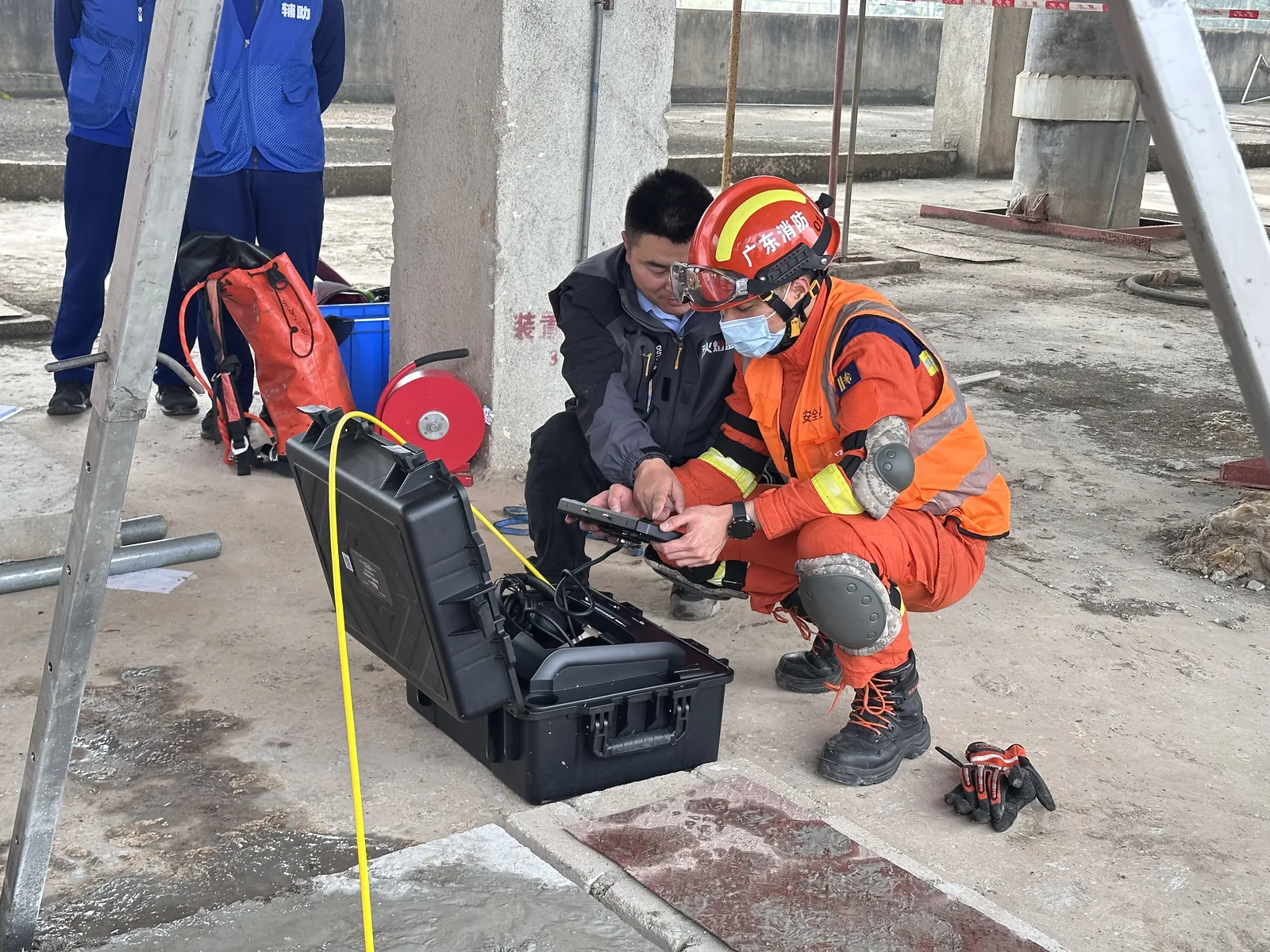

A technician and a firefighter reviewing live probe video on the LSJ CAMB-V500 at a wet confined-space exercise site

Flood, Underwater and Confined Space

The IP68 probe searches flooded voids, tanks and mine passages to 20 m while the IP67 case withstands the wet, dusty surface environment. In culverts and tanks the 8 mm snake-eye reaches openings the rotating probes cannot enter.

Operational Scenario

Deep Shaft Void Search: An Illustrative Deployment

The scenario below illustrates how the system may support a rescue team. It is not a documented customer case study.

Illustrative deep shaft search: the LSJ CAMB-V500 rotating probe lowered on its 25 m rigid detection cable

Example: Locating a Voice at the Bottom of a Service Shaft

Situation

A maintenance worker is reported missing in a service shaft of a partially collapsed plant room. Access is a narrow opening; the shaft is dark, dusty and roughly 12 m deep, and the rescue team cannot see the bottom from the rim.

Potential use

A crew could lower the rotating probe on the 25 m cable, watching the deployed-length readout to track depth, then pan and tilt to sweep the shaft walls and floor. With the headphones on, the operator listens for breathing or movement and, if the worker responds, holds a two-way conversation while the shaft entry is prepared. Recording starts on a long press so the descent and the contact are kept for the debrief.

Decision support

Findings may inform where the entry point and anchor are placed, whether a ladder or a line rescue is required, and whether a medical team is staged at the rim. Outcomes depend on shaft obstructions, atmosphere, cable routing around the bend radius, and the operator’s training; the camera confirms presence and condition, it does not replace atmospheric monitoring or the entry permit.

Why Work With LSJ

Manufacturing Capability
Built Around Procurement Needs

Explore the production facilities, compliance documents, and international exhibitions presented in the materials below. Confirm product-specific certifications and current manufacturing capabilities with the supplier before placing an order.

16years Manufacturing
experience

4document types CE · ISO · MSDS · RoHS
shown in supplied image

GLOBAL International trade-show
engagement

Supplied collage of LSJ manufacturing, assembly, and testing areas

01 · PRODUCTION

Assembly and Testing Capability

The supplied company materials describe 16 years of manufacturing experience alongside assembly and testing activities. Confirm the applicable product line, current capabilities, and lead time when requesting a quote.

Supplied collage of CE, ISO, MSDS, and RoHS-related documents

02 · CERTIFIED

Documentation for Due Diligence

Request current, product-specific documents and verify their scope before use in a tender or import review.

CEISOMSDSRoHS

LSJ team and visitors at international trade exhibitions

03 · GLOBAL

Product Discussions at Global Events

Explore images of industry exhibitions and in-person discussions with international partners and emergency-response professionals.

Click an image for a larger view · Request a facility visit or document verification

Request an Operating Demonstration

Ask for the probe-change, pan/tilt, intercom and depth-readout walkthrough

Operation Video

See the LSJ CAMB-V500 in Operation

No operation video is published for this model yet. Ask the supplier for a live walkthrough: deploy the probe and read the depth on screen, sweep with pan and tilt, switch to the intercom and hold a conversation on the headphones, then record a clip and play it back.

Depth readout against a known cable length — confirm the displayed figure
Pan / tilt speed and the on-screen orientation indicator
Intercom quality with the noise-cancelling headphones in a noisy site

Technical Specifications

LSJ CAMB-V500 Specification Sheet

Only the values published on the manufacturer’s product page are given below. Items marked “to be confirmed” are not stated there and must be obtained in writing before procurement. Probe sets, thermal imaging and 4G / Wi-Fi are configured to order.

Parameter	Stated Specification
Display and control terminal
Display	8-inch color LCD, 1920 × 1080, adjustable brightness with automatic mode
Operation	Glove-friendly physical keys; wired to the host by a 130 cm integrated cable
Zoom / storage	2× / 4× digital zoom; 256 GB SD card; one-key photo, synchronized video with audio, on-board playback
Wireless (optional)	4G and Wi-Fi live transmission to the rear command post
Electric rotating audio/video probe
Diameter / resolution	Φ29 mm; 1920 × 1080; 10 built-in LED lights
Rotation	360° horizontal electric pan plus 180° (±90°) vertical tilt
Intercom	Integrated microphone and two-way voice talk with noise-cancelling headphones
Waterproof rotating probe
Diameter / resolution	Φ40 mm; 1920 × 1080; sealed stainless-steel body
Rotation	360° horizontal electric rotation
Protection / depth	IP68 fully sealed, submersible to 20 m; pairs with the 25 m waterproof cable
Two-way snake-eye probe
Lens / cable	Φ8 mm titanium-coated stainless lens; 3 m tungsten-wire cable; 8 LED lights
Access / articulation	Two-way manual articulation; enters 10 mm gaps, pipes and dark voids
Thermal imaging (optional)
Imaging modes	6 modes: Fire, Rainbow, Rescue, Detection, White Hot, Black Hot
Temperature range	−20 °C to 650 °C with center / maximum / minimum readout
Detector resolution	To be confirmed — not stated in the source material
System, power and enclosure
Detection cable	25 m rigid fiberglass cable on a built-in retractable reel with depth display; minimum bend radius 35 cm
Enclosure protection	IP67 waterproof, dustproof and shock-resistant carry case
Case dimensions	585 × 450 × 288 mm (L × W × H), single-person transport
Power	2 removable Li-ion batteries, 8 h each, hot-swap; Type-C charging; 8.4 V / ≤ 2 A charger
Charging time	To be confirmed — not stated in the source material
Operating temperature	−20 °C to +60 °C
Audio	Microphone pickup plus stereo noise-cancelling headphones, full-duplex two-way voice
Weight	To be confirmed — not stated in the source material
Warranty	To be confirmed — stated only as following the user manual; request written terms

Frequently Asked Questions

Selection and Deployment

Answers to the questions rescue-service procurement teams ask most often. Confirm all technical and commercial terms with the supplier in writing.

Can it see or hear through solid walls?

No. An audio/video search camera is inserted through an existing gap, borehole, pipe, well or drilled rescue channel — it does not image through intact concrete. Once the probe reaches the void it provides live video and two-way voice. For true through-wall detection the manufacturer recommends pairing it with a radar life detector.

How deep and how far can the probe reach?

The main rigid cable is 25 m (about 82 ft), built into the case with a real-time deployed-length readout; the waterproof probe is rated to 20 m of water depth, and the snake-eye probe ships with a 3 m cable. The cable minimum bend radius is 35 cm, so plan access routes and tight pipe entries around that figure.

Is it waterproof enough for water rescue?

The rotating waterproof probe is IP68 sealed and submersible to 20 m, while the carry case and host are IP67 protected against water, dust and shock for wet and muddy surface work. The 20 m figure is a submersion rating for the probe, not a diving capability for the display or the case; confirm the applicable test reports for your tender.

What resolution and rotation do the cameras have?

All main cameras output 1920 × 1080 (1080P). The electric probes rotate 360° horizontally and tilt 180° (±90°) vertically from the terminal, with 2× / 4× digital zoom and LED illumination. The snake-eye probe is a fixed 8 mm lens with two-way manual articulation rather than motorized rotation.

What is included, and can the probe set be customized?

The system ships as a single IP67 case with the host, 8-inch wired display, configured probes, stereo noise-cancelling headphones, two batteries, charger and cabling. The electric A/V probe, IP68 waterproof probe, snake-eye probe and thermal probe, plus the 4G / Wi-Fi module, are selected to match the mission — tell the supplier your scenarios when requesting a quotation and ask for a written packing list.

Supplier Support

Support from Selection to Service

Probe Set Configuration

Discuss the voids you actually search — rubble gaps, shafts, pipes, flooded tanks — and the supplier will specify which probes, cable and thermal option belong in the case.

Tender and Demonstration Support

Request the datasheet, IP67 / IP68 evidence, quantity pricing and a demonstration unit for evaluation before a tender submission.

Service and Spares

Warranty follows the user manual; a 24-hour service hotline, operator guidance and out-of-warranty service are stated by the manufacturer. Confirm battery replacement and repair arrangements for your market.
