LD-RIII Through-Wall Radar | Life Detector for SWAT

Core Capabilities

See Who Is Behind the Wall Before You Enter

A portable UWB radar helps tactical and rescue teams assess occupancy, target position and posture before entering a room or unstable structure.

Thermal imaging in a smoke-filled environment

CAPABILITY 01

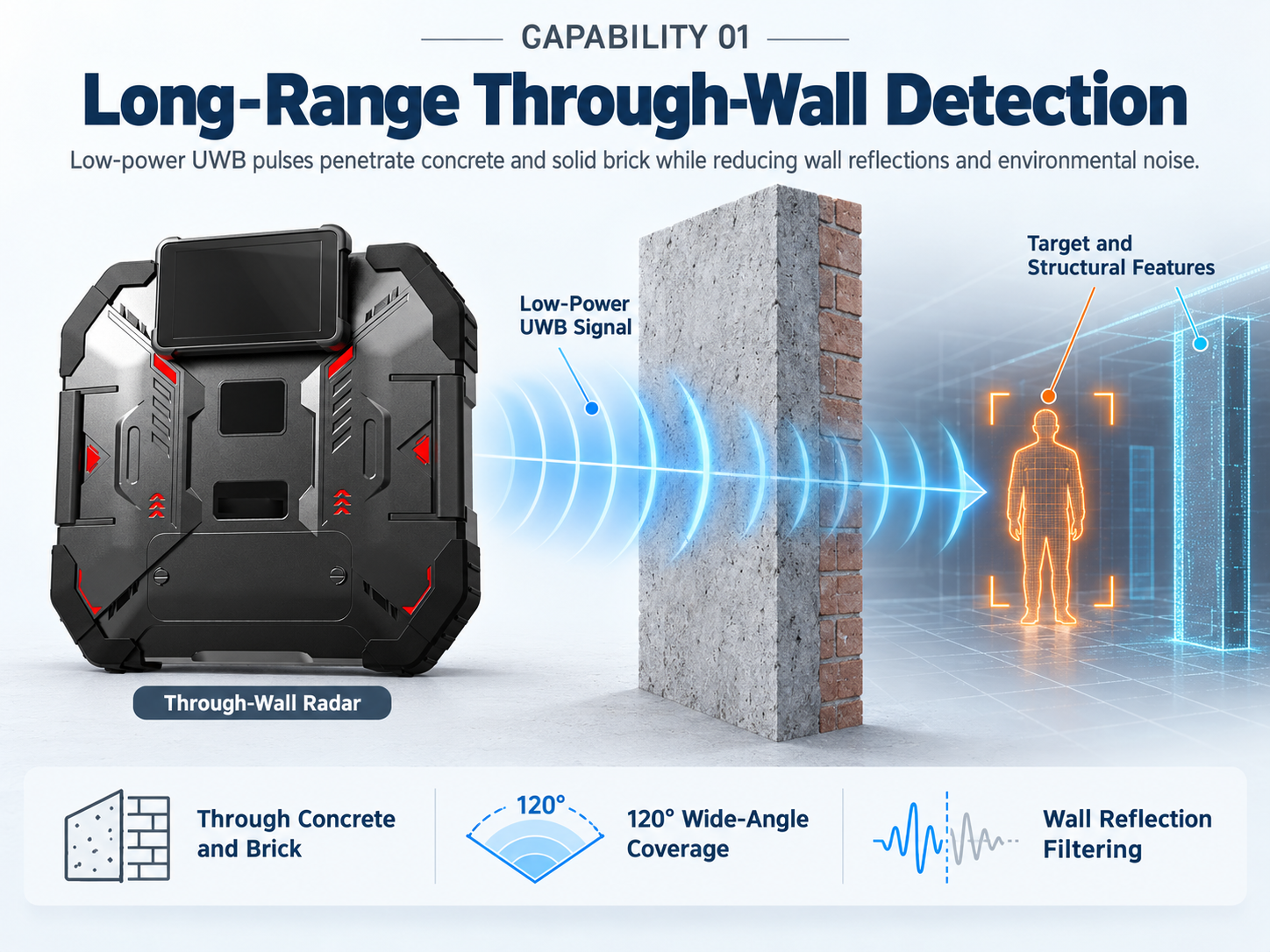

Long-Range Through-Wall Detection

Low-power UWB pulses penetrate concrete and solid brick while clutter-filtering algorithms suppress wall reflections and environmental noise.

Helps identify heat signatures and structural features where visible-light cameras are limited by smoke
120° wide-angle coverage frame rate supports smoother scanning while moving
Selectable palettes help crews distinguish temperature differences

CAPABILITY 02

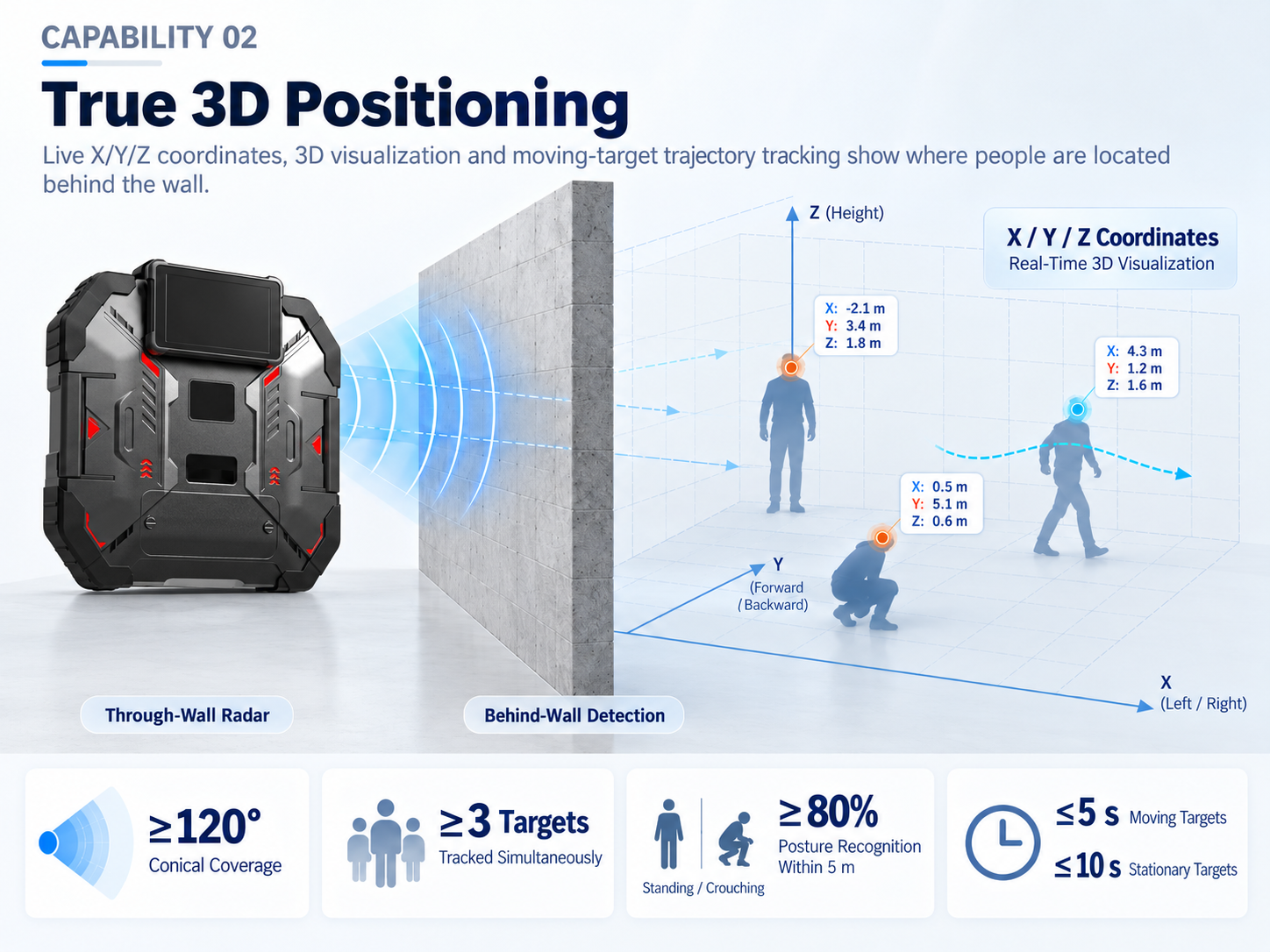

True 3D Positioning

Live X/Y/Z coordinates, 3D visualization and moving-target trajectory tracking show where people are located behind the wall.

≥120° conical coverage supports wide-area scanning
Tracks at least 3 targets simultaneously with real-time coordinates
Standing/crouching posture recognition reaches ≥80% within 5 m
Moving targets are reported within ≤5 s; stationary targets within ≤10 s

LD-RIII 3D through-wall radar target coordinates interface

CAPABILITY 03

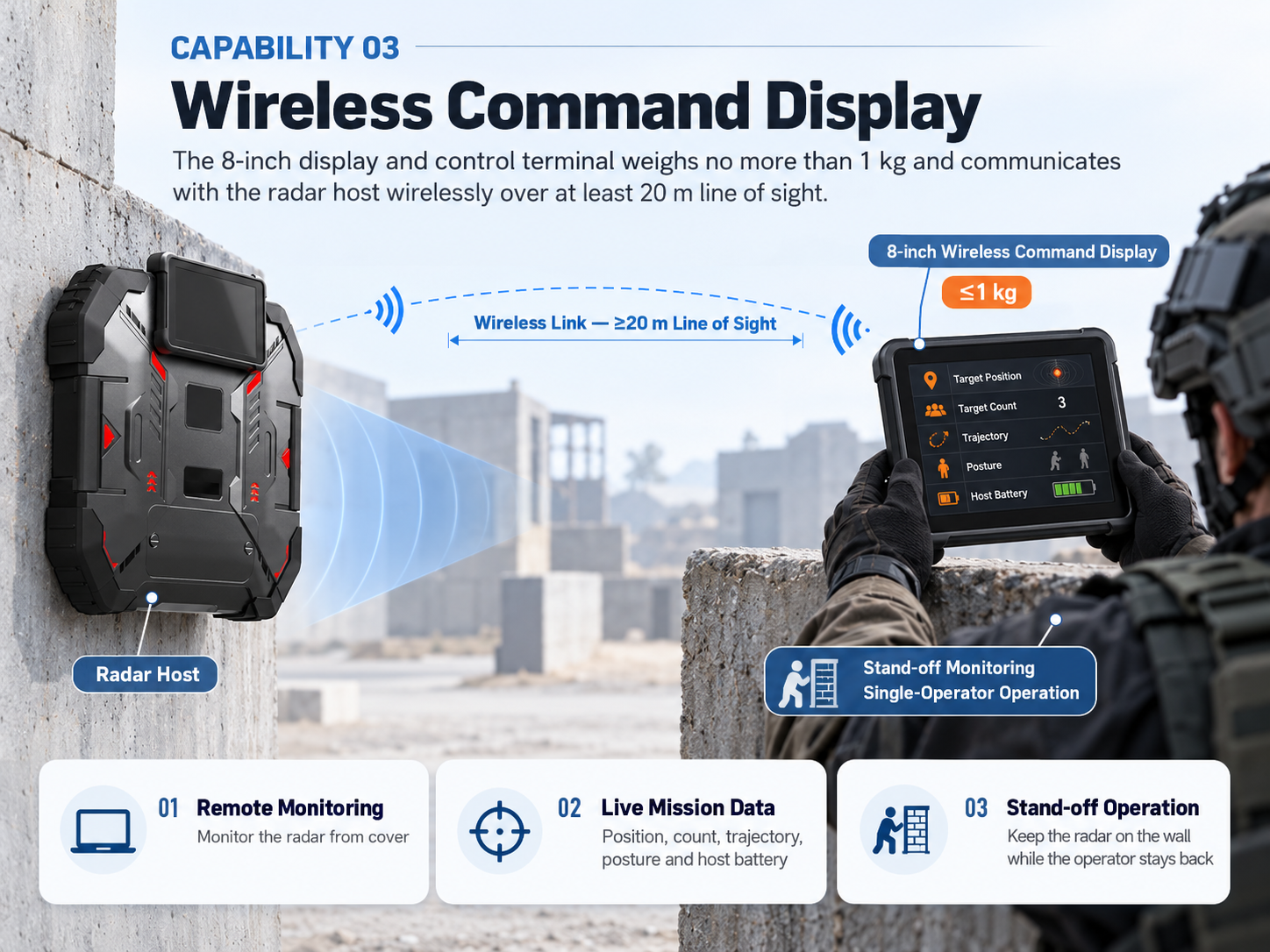

Wireless Command Display

The 8-inch display and control terminal weighs no more than 1 kg and communicates with the radar host wirelessly over at least 20 m line of sight.

Shows target position, count, trajectory, posture and host battery
Keep the radar on the wall while the team monitors from cover
Supports single-operator stand-off operation

CAPABILITY 04

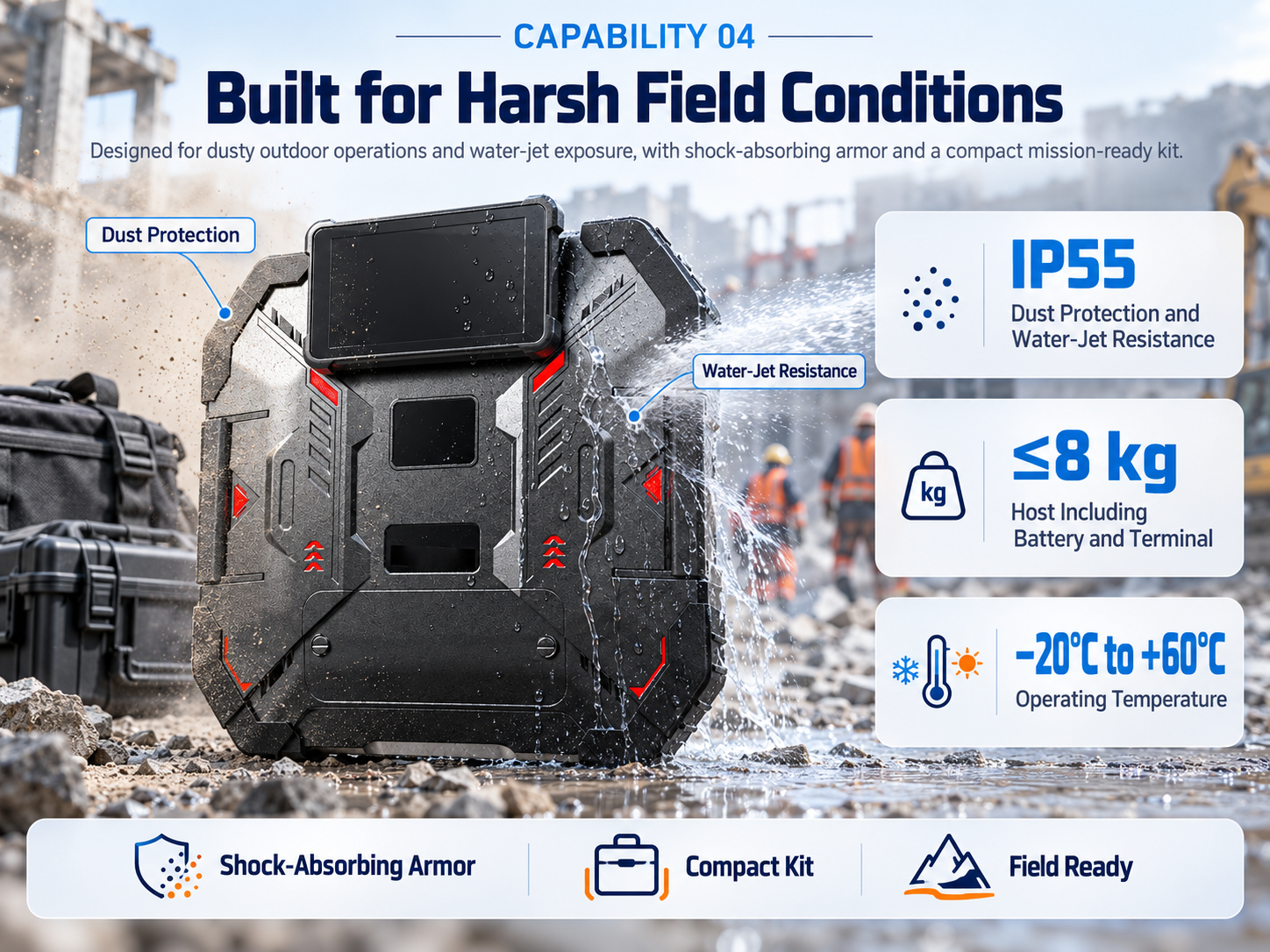

Built for Harsh Field Conditions

The radar host is designed for dusty outdoor operations and water-jet exposure, with shock-absorbing armor and a compact mission-ready kit.

IP55 dust protection and water-jet resistance
≤8 kg host including battery and terminal
Operating temperature from −20°C to +60°C

LD-RIII live 3D wall scan target interface

CAPABILITY 05

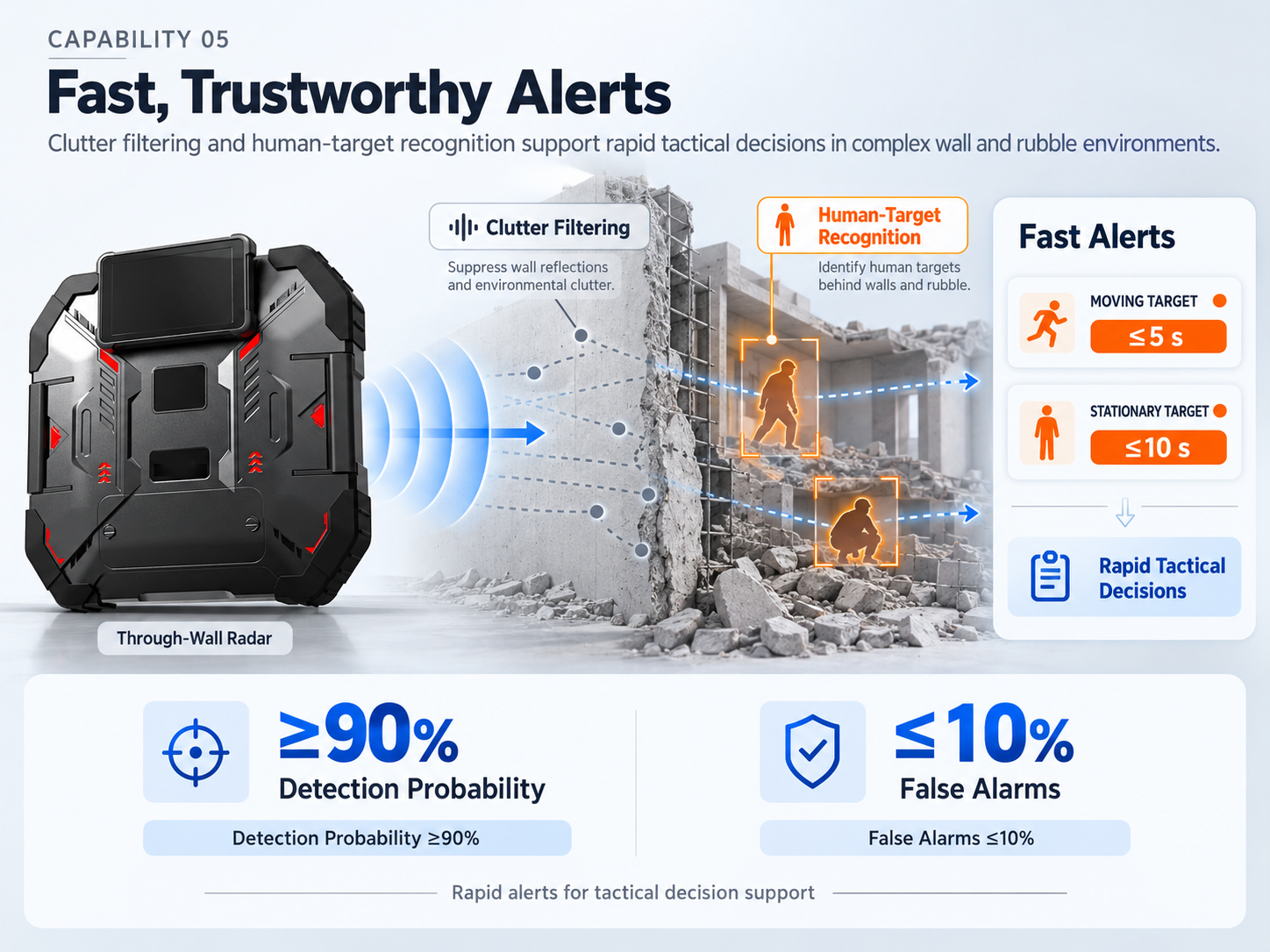

Fast, Trustworthy Alerts

Clutter filtering and human-target recognition support rapid tactical decisions in complex wall and rubble environments.

Moving targets reported within ≤5 seconds
Stationary targets reported within ≤10 seconds
≥90% detection probability with ≤10% false alarms

CAPABILITY 06

Single-Operator Mission Kit

The standard configuration combines the radar host, wireless terminal, tripod, spare battery, charger and hard carrying case for rapid deployment.

Tripod-mounted stand-off monitoring mode
Handheld wall-press scanning mode
No signal cables between the operator and radar host

LD-RIII standard radar life detector kit

Request pricing and a live demo of the LSJ LD-RIII.

Tell us your wall type and operational scenario; our engineers will confirm configuration and delivery schedule.

Applications

3D Through-Wall Radar for Tactical Rescue

Applicable to municipal fire services, industrial emergency teams, hazardous-materials sites, and wildfire response units, subject to operational requirements.

Structural firefighting and search operations

Counter-Terrorism & High-Risk Entry

Confirm room occupancy, count and posture before high-risk entry or structural search.

Overhaul and residual hot-spot inspection

Hostage & Barricade Incidents

Use stand-off radar monitoring during barricade incidents and structural searches where line of sight is blocked.

Industrial site inspection and emergency response

Urban Search & Rescue

Locate stationary living persons after earthquakes, collapses and structural failures where visual and thermal cameras cannot reach.

Operational Scenario

Locate People Before You Enter

The scenario below illustrates how a thermal camera may support an incident team. It is not a documented customer case study.

Illustrative warehouse fire response scenario

Map Occupancy, Position and Posture

Situation

A warehouse fire creates dense smoke and limits visual assessment of storage aisles and overhead structures.

Potential use

A team can place the LD-RIII against a wall or mount it on the tripod, monitor target count and 3D coordinates from the wireless terminal, and plan entry or rescue decisions before committing personnel.

Decision support

Findings may inform search priorities and structural risk discussions under the incident commander's procedures. Outcomes depend on conditions, training, and additional equipment.

Why Work With LSJ

Manufacturing Capability
Built Around Procurement Needs

Explore the production facilities, compliance documents, and international exhibitions presented in the materials below. Confirm product-specific certifications and production capacity with the supplier before placing an order.

700-1,000units/day Capacity stated in
supplied factory image

4document types CE · ISO · MSDS · RoHS
shown in supplied image

GLOBAL International trade-show
engagement

Supplied collage of LSJ manufacturing, assembly, and testing areas

01 · PRODUCTION

Assembly and Testing Capability

The supplied factory imagery shows assembly and testing activities and states a capacity of 700-1,000 units per day. Confirm the applicable product line, current capacity, and lead time when requesting a quote.

Supplied collage of CE, ISO, MSDS, and RoHS-related documents

02 · CERTIFIED

Documentation for Due Diligence

Request current, product-specific documents and verify their scope before use in a tender or import review.

CEISOMSDSRoHS

LSJ team and visitors at international trade exhibitions

03 · GLOBAL

Product Discussions at Global Events

Explore images of industry exhibitions and in-person discussions with international partners and emergency-response professionals.

Click an image for a larger view · Request a facility visit or document verification

Request an Operating Demonstration

Ask about wall type, operating scenario and application testing

Operation Video

See the LSJ-LD-RIII in Operation

Watch the LD-RIII demonstration to understand wall-press scanning, tripod deployment, 3D target mapping and wireless command display operation.

Designed for one-handed operation with protective gloves
Switch between firefighting, search and rescue, and temperature modes
Review target count, coordinates, posture and trajectory on the terminal

Technical Specifications

LSJ-LD-RIII Technical Specifications

Specifications below reflect the source material for this page and should be confirmed against the latest manufacturer datasheet and applicable test reports before procurement.

Parameter	Stated Specification
Technology	Low-power Ultra-Wideband (UWB) radar
Penetrable materials	Concrete, solid brick and other common masonry walls
Moving-target detection distance	≥20 m
Stationary-target detection distance	≥10 m
Effective detection angle	≥120°
Simultaneous targets	≥3 persons
Positioning	3D X / Y / Z coordinates, real-time 3D imaging and moving-target trajectory tracking
Horizontal positioning error	≤1 m on X azimuth / Y range
Response time	≤5 s moving / ≤10 s stationary
Posture recognition	Standing / crouching classification; ≥80% recognition within 5 m
Human-target detection probability	≥90%
False-alarm rate	≤10%
Display & control terminal	8-inch display and control terminal; target position, count, trajectory, posture and battery level
Terminal weight / wireless range	≤1 kg; ≥20 m line-of-sight wireless communication
Total host weight	≤8 kg including battery and terminal
Ingress protection	IP55 dust-protected and water-jet resistant
Standard package	Radar host, 8-inch terminal, tripod, hard carrying case, spare battery, charger and cabling
Operating environment	High-temperature, low-temperature and dusty outdoor operation

Frequently Asked Questions

Procurement and Deployment

Answers to common questions from fire-service procurement teams and end users. Confirm all commercial and technical terms with the supplier.

How far can the LD-RIII detect people, and how accurate is it?

Moving targets can be detected at 20 m or more and stationary targets at 10 m or more through standard masonry. Three-dimensional positioning error is no more than 1 m on the horizontal azimuth and range axes.

Can it detect people who are not moving?

The system operates from −20°C to +60°C. Confirm deployment conditions and wall structure during application testing.

What is included in the standard LD-RIII kit?

The standard package includes radar host, 8-inch terminal, tripod, hard carrying case, spare battery, charger and cabling.

Can we arrange a demonstration or request tender documents?

Contact the supplier with your organization, intended use, quantities, and delivery market. Ask about demonstration availability, a compliance matrix, test reports, and manufacturer authorization where required; availability and terms must be confirmed in writing.

What warranty and calibration support is available?

Request written warranty coverage, service turnaround, spare-parts availability, and recommended calibration intervals in the quotation. Inspection and recalibration may be advisable after severe heat exposure or impact; service terms depend on the purchase agreement.
